Underground Pipe Insulation: A Comprehensive Guide for UK Applications

Key Considerations

When choosing cladding, consider the water table level, potential for mechanical stress, ease of installation, budget, and compatibility with the insulation material. For high water tables, PIB or specialized direct burial products are ideal. In areas with potential for damage, aluminium offers excellent protection.

Installation Tips

Ensure proper sealing and overlapping during installation to prevent water ingress. It's also important to seal all joints and seams with appropriate sealants to create a continuous barrier against moisture. Remove sharp objects from the trench before burial to avoid damaging the cladding. Consider using a layer of sand around the pipe to provide additional protection against punctures from rocks or debris in the soil.

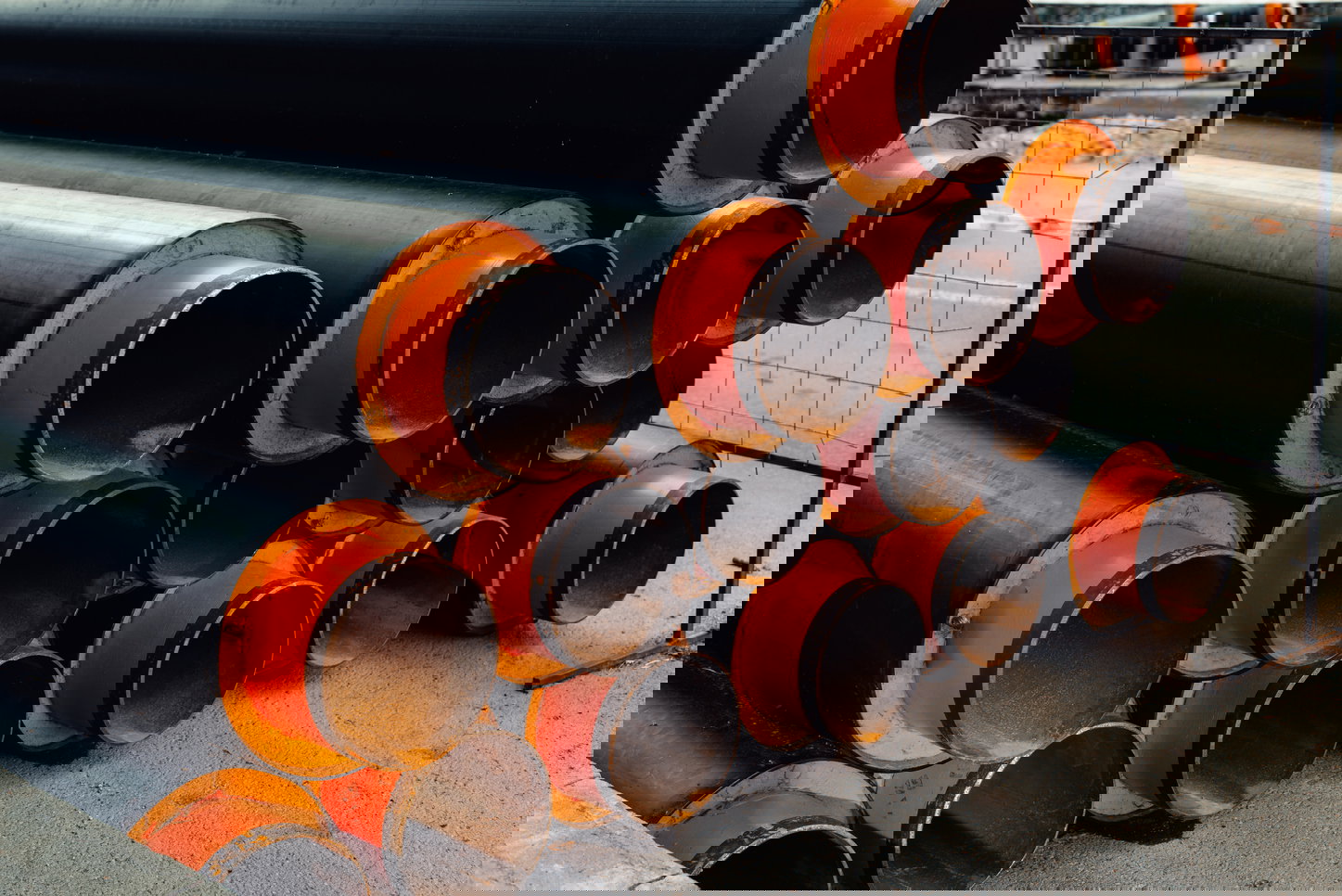

Pre Insulated Pipes for Underground Use in the UK Market

Pre-insulated pipes represent an advanced solution for underground services in the UK, offering a comprehensive approach to insulation and protection.

These systems typically comprise a carrier pipe, which can be made of steel or plastic materials like PEX (cross-linked polyethylene), surrounded by an insulation layer, often made of polyurethane foam, and encased within a durable protective outer casing, commonly made of high-density polyethylene (HDPE) or glass-reinforced plastic (GRP).

The adoption of preinsulated pipes brings numerous benefits to underground infrastructure projects. Their pre-assembled nature leads to faster and easier installation, significantly reducing the amount of on-site labour required. The use of flexible PEX pipes, often supplied in coils, further simplifies the installation process by minimizing the need for

joints and allowing for easier navigation around underground obstacles. A key advantage of pre-insulated pipes is the consistently high level of thermal insulation achieved through the factory-applied insulation layer, which minimizes heat loss and enhances energy efficiency.

Some advanced pre-insulated pipes even offer exceptionally low thermal conductivity (lambda values), further reducing heat loss. The robust outer casing provides enhanced durability and protection to both the carrier pipe and the insulation layer against mechanical damage, corrosion, and the ingress of moisture from the surrounding soil. The HDPE outer casing, in particular, offers excellent protection against these underground elements. The inherent flexibility of many pre-insulated pipe systems allows for easier design and installation, accommodating complex underground layouts and reducing the need for numerous fittings. Finally, the high-quality materials and construction of pre-insulated pipes often contribute to a longer service life compared to traditional insulation methods.

Preinsulated pipes find extensive applications in various underground services within the UK. They are a cornerstone of efficient district heating systems, facilitating the distribution of hot water from a central source to multiple buildings. Their use is also prevalent in ground source heat pump installations, supporting sustainable heating solutions. Additionally, pre-insulated pipes are employed in chilled water systems for efficient cooling of large buildings , and they can be utilized for the underground transport of a variety of other fluids requiring temperature control.

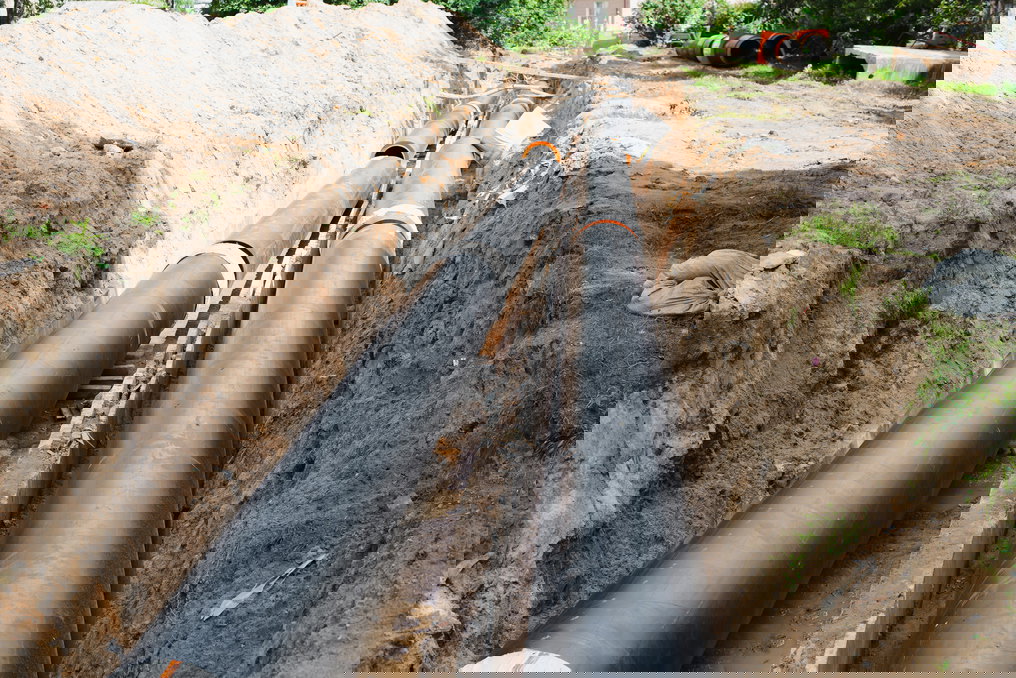

Installation Considerations

When installing pre insulated pipe systems underground, proper trenching and bedding procedures are essential. Industry guidelines specify that "a trench shall be provided so as to enable pipe placement... with at least 10 cm pipe bedding made of sand free of stones, debris and sharp-edged objects".

Key installation considerations include:

• Ensuring proper trench dimensions (width and depth)

• Providing suitable sand bedding and backfill

• Managing pipe expansion and contraction

• Proper jointing and field insulation of connections

• Protection at building entry points

For house connections, there are typically three methods for introducing pre-insulated pipes through walls:

1. Straight lead-in through the base

2. Tilted bore in the base

3. External lead-in through the wall, covered by a cabinet

Proper installation ensures system longevity while maintaining thermal performance throughout the service life.

Best Practices for Installation, Maintenance, and Protection

Ensuring the long-term efficiency and reliability of underground pipe insulation in the UK requires adherence to best practices throughout the installation, maintenance, and protection phases.

Proper installation is paramount. The process should begin with careful preparation of the trench, ensuring adequate depth to fall below the frost line and sufficient width to accommodate the pipes and insulation. Any sharp objects within the trench should be removed to prevent damage to the pipes or insulation. Pipes should be laid securely and tested to ensure they are leak-free before insulation is applied. When wrapping pipes with insulation, it is crucial to ensure complete coverage without any gaps. Seams and joints in the insulation should be meticulously sealed using appropriate adhesives or tapes to create a continuous thermal barrier. For foam insulation, especially in damp underground conditions, protecting the insulation with a vapor barrier is essential to prevent moisture penetration. In areas where rodents are a concern, considering a rodent-proof barrier such as a metal mesh around the insulation can be beneficial. When backfilling the trench, care should be taken to avoid using sharp or heavy materials that could puncture or compress the insulation. The backfill material should be tamped down to eliminate air pockets. Using a layer of sand or pea shingle around the pipe can provide additional bedding and protection. For pre-insulated pipe systems, it is vital to follow the manufacturer's instructions for jointing and sealing the pipe sections. Using shrink end caps at underground connections is a recommended practice to prevent water ingress into the insulation.

Maintenance of underground pipe insulation is challenging due to the inaccessibility of buried systems. Therefore, the focus should be on preventative measures and robust initial installation. Regular inspections of any exposed sections of the pipework, such as where they enter or exit buildings, can help identify potential issues early. If any signs of wear, damage, or compromised insulation are detected, they should be addressed promptly by patching holes, resealing joints, or replacing damaged sections. For the buried sections, the quality of the initial installation and the durability of the materials used are critical in minimizing the need for future repairs, which would likely involve excavation.

Protecting underground pipe insulation from moisture, rodents, and soil conditions is crucial for its longevity and performance. Utilizing closed-cell insulation materials with inherent water resistance is a primary defense against moisture ingress. For insulation materials that are less water-resistant, employing vapor barriers and waterproof jacketing can provide the necessary protection. Implementing rodent-proof barriers can prevent damage from pests. Ensuring proper bedding and backfilling around the insulated pipes helps to prevent mechanical damage from the pressure of the soil and any sharp objects present. In some cases, installing the insulated pipes within a protective duct can offer an additional layer of defense against soil pressure and potential damage, particularly for insulation types that are less robust.

British Standards and UK Regulations Governing pipe insulation for underground use

The installation and performance of underground pipe insulation in the UK are governed by a comprehensive set of British Standards and Building Regulations. These standards and regulations aim to ensure energy efficiency, safety, and the long-term reliability of pipework systems.

BS 5422 provides a method for specifying thermal insulating materials for pipes, tanks, vessels, ductwork, and equipment. It outlines key properties and performance criteria for various insulation materials, including thermal conductivity limits and allowable operating temperatures. BS 5970 offers a code of practice for the thermal insulation of pipework and equipment, recommending procedures for insulation in non-domestic and industrial facilities.

The Building Regulations Part L focuses on the conservation of fuel and power, setting standards for energy efficiency in buildings, including the insulation of heating and hot water pipes. This regulation specifies minimum insulation thicknesses based on pipe diameter and the thermal conductivity of the insulation material. Furthermore, the Water Regulations stipulate that all newly installed water pipes must be insulated before they are buried, providing guidance on protection against freezing.

For district heating systems, specific standards apply. BS EN 253 governs pre-insulated bonded pipe systems for directly buried hot water networks, covering the requirements and test methods for steel service pipes with polyurethane thermal insulation and a polyethylene outer casing. BS EN 15632 addresses pre-insulated flexible pipe systems used in district heating, outlining the classification, general requirements, and test methods for both bonded and non-bonded systems that utilize plastic or metal service pipes. PAS 67 is a Publicly Available Specification that provides best practice procedures for the installation of thermal insulating materials in buildings. The NHBC Standards also offer technical guidance on pipe insulation, including specific requirements for different areas within a dwelling.

Compliance with Approved Document L of the Building Regulations is essential for all construction projects in the UK. Additionally, local water authorities often have their own specific requirements regarding the insulation of buried water pipes, which must be adhered to. The comprehensive framework of British Standards, Building Regulations, and local authority requirements necessitates a thorough understanding of the specific context of each project to ensure full compliance and the delivery of efficient and reliable underground pipe systems.

Energy Efficiency and Cost-Saving Benefits

The use of effective underground pipe insulation in the UK yields significant energy efficiency gains and substantial cost savings over the lifespan of a system. Properly installed insulation can dramatically reduce heat loss from pipes, with some studies indicating reductions of up to 80%. Even insulating radiator feed pipes can lead to noticeable savings on heating bills, in the range of 2% to 5%. For larger systems, such as those in commercial buildings, applying insulation to cold water pipes can result in energy savings of up to 50%, while insulating hot water pipes can save up to 20% of energy costs.

These reductions in energy consumption directly translate to lower utility bills for both residential and commercial properties. Furthermore, in the UK's climate, the prevention of frozen pipes through effective insulation avoids the potentially high costs associated with repairs and water damage caused by bursting. The investment in pipe insulation is often recouped relatively quickly through the resulting energy savings, with payback periods potentially as short as a few years. While professional installation incurs a cost, homeowners with DIY skills can often install pipe insulation themselves at a very cost-effective rate, further enhancing the return on investment. It is important to note that while general percentages for energy savings are helpful, the actual savings achieved will depend on a variety of factors specific to each installation, including the local climate, the length and diameter of the pipes, the temperature of the fluid being transported, and the overall efficiency of the heating or cooling system.

In Summary;


• Reduces heat loss from pipes by up to 80%

• Insulating radiator feed pipes can save 2-5% on heating bills

• For commercial buildings, insulating cold water pipes can save up to 50% of energy costs

• Hot water pipe insulation can reduce energy use by up to 20%

• Prevents costly repairs from frozen and burst pipes especially beneath concrete.

• Typical payback periods range from 3-5 years for quality installations

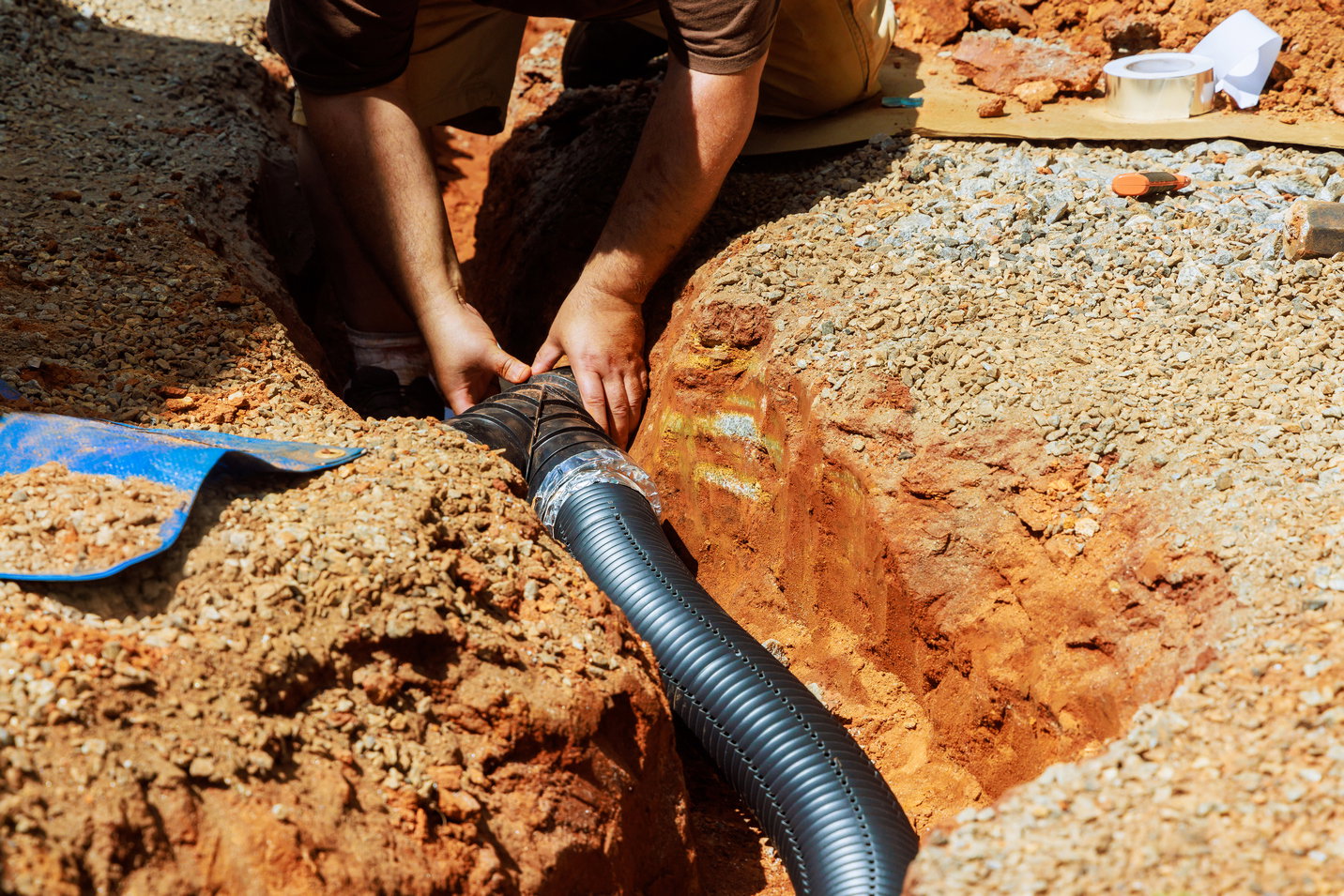

Insulated Ducting for Underground Services

Beyond the insulation of individual pipes, insulated ducting plays a vital role in protecting various underground services in the UK, extending to applications beyond just fluid transport, such as housing electrical cables. The materials commonly used for underground ducting are typically plastics like HDPE (high-density polyethylene), LDPE (low-density polyethylene), PVC (polyvinyl chloride), and PP-R (polypropylene random copolymer), chosen for their durability and resistance to the often challenging ground conditions. For applications requiring enhanced strength, particularly in areas subject to heavy loads such as under roads, twinwall ducting is frequently employed, offering superior crush resistance.

The importance of insulation within underground ducting varies depending on the service being protected. For water pipes housed within a duct, insulation is primarily used to prevent freezing, maintain water temperature, and control condensation. The insulation materials used in these cases often include closed-cell foams like polyethylene. In the context of air ducts running underground, insulation serves to prevent condensation from forming within the ductwork and to reduce thermal losses or gains, ensuring efficient air distribution. Common insulation materials for air ducts include fiberglass, polyethylene foam, mineral wool, and phenolic foam, each offering different levels of thermal and acoustic performance.

Installation practices for underground insulated ducting in the UK are governed by specific regulations and utility company guidelines. The depth at which ducting must be buried varies depending on the type of service it contains (electricity, water, gas, communications) and its location (footpath, carriageway), with specified minimum depths to ensure safety and prevent damage. It is also crucial that ducts are sealed both internally and externally to prevent the ingress of gas, liquids, or vermin into buildings or the ducting itself. Plastic or rubber end caps are typically recommended for effectively sealing the ends of duct runs. Furthermore, the colour coding of underground ducting is a legal requirement in the UK, with different colours indicating the specific service contained within (e.g., blue for water, yellow for gas, black or red for electricity).

Ducting Materials and Applications

The materials commonly used for underground ducting are typically plastics like HDPE (high-density polyethylene), LDPE (low-density polyethylene), PVC (polyvinyl chloride), and PP-R (polypropylene random copolymer), chosen for their durability and resistance to challenging ground conditions. For applications requiring enhanced strength, particularly in areas subject to heavy loads such as under roads, twinwall ducting is frequently employed, offering superior crush resistance.

In the UK, colour coding of underground ducting is a legal requirement, with different colours indicating the specific service contained within (e.g., blue for water, yellow for gas, black or red for electricity).

Protective Measures for Compressible Materials

Insulated ducting serves a dual purpose for underground pipe insulation:

1. Protection from soil pressure: Prevents crushing of compressible insulation materials

2. Additional moisture barrier: Provides an extra layer of protection against groundwater

Common Challenges and Solutions with underground pipe lagging

Despite the numerous benefits, underground pipe insulation in the UK can present several challenges that need to be addressed through careful material selection and installation practices.

One of the most significant challenges is moisture ingress. Underground pipes are constantly exposed to moisture from the surrounding soil, which can degrade the performance of many insulation materials and lead to corrosion of metallic pipes. Compression of the insulation due to the pressure of the soil is another common issue, which can reduce the insulation's thickness and thus its effectiveness. Mechanical damage to the insulation or the pipes themselves can occur during the installation process or as a result of ground movement over time. In some areas of the UK, damage from rodents and other pests that might burrow underground and nest in or consume insulation materials can also be a problem. The natural thermal expansion and contraction of the pipes due to temperature fluctuations can also place stress on the insulation material, potentially leading to cracks or gaps. Improper installation, such as leaving gaps in the insulation or failing to adequately seal joints, is a frequent pitfall that can significantly compromise the insulation's overall performance. For metallic pipes, the combination of moisture and insulation can sometimes lead to corrosion under insulation (CUI), a hidden form of corrosion that can severely damage the pipe over time.

To mitigate these challenges, several solutions and best practices can be implemented. Using closed-cell insulation materials that inherently resist water absorption is a primary strategy. For insulation materials that are more susceptible to moisture, applying vapour barriers and waterproof jacketing can provide an effective shield against water ingress. Considering the use of pre-insulated pipe systems with a durable outer casing offers a robust solution that protects both the insulation and the carrier pipe. Installing the insulated pipes within a protective duct can provide an additional layer of defense against soil pressure and potential physical damage, especially for less robust insulation types. In areas prone to rodent problems, incorporating rodent-proof barriers can help prevent damage.

Ensuring proper installation with tightly sealed joints and continuous insulation coverage is fundamental to maximizing the insulation's effectiveness. For metallic pipes, selecting corrosion-resistant pipe materials or applying anti-corrosion layers before insulation can help to prevent CUI. Finally, ensuring proper bedding and backfilling around the pipes and insulation can provide necessary support and minimize the risk of mechanical damage from soil movement or sharp objects.  Best Practices for Underground Pipe Insulation Installation

Successful underground pipe insulation installations depend on adherence to industry best practices and attention to technical details.

Trench Preparation

Proper trench preparation forms the foundation of effective underground pipe insulation:

1. Dig a trench deep enough to prevent freezing (depth varies by region and soil conditions)

2. Ensure trench width accommodates pipes and insulation with adequate spacing

3. Remove rocks, roots, and debris that could damage pipes or insulation

4. Provide a clean, compacted sand bedding of at least 10cm

5. Consider drainage needs for areas with high groundwater

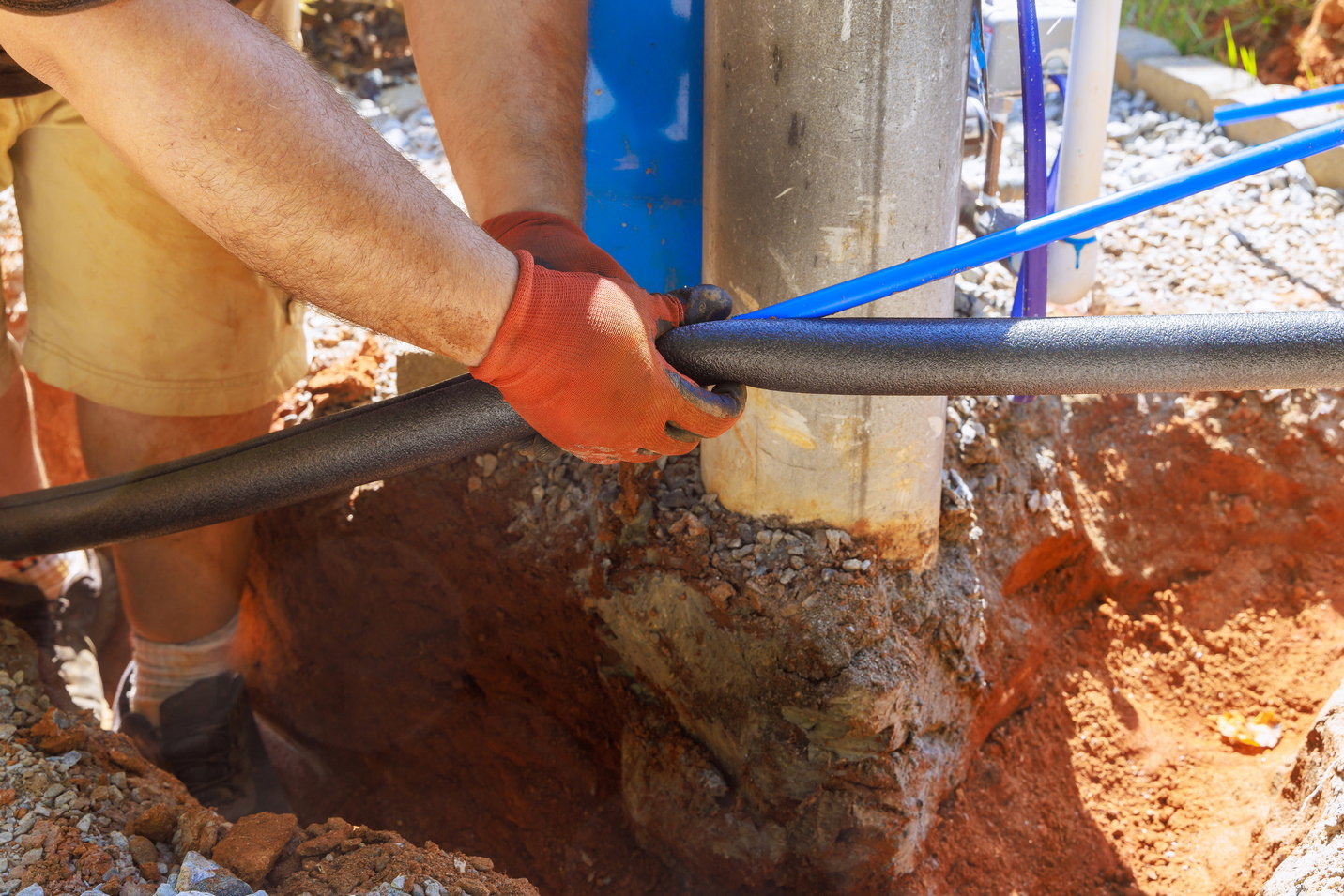

Pipe Installation and Insulation

When installing insulated pipes underground:

1. Position flow pipes on the right-hand side looking from the heat source

2. Ensure proper spacing between pipes to maintain insulation integrity

3. Use appropriate joining methods (welding, compression fittings, etc.)

4. Insulate all connections and joints with the same level of protection as the main pipework

5. Test systems before backfilling to identify and address any leaks

Backfilling and Protection

The backfilling process is critical for protecting underground insulated pipes:

1. Apply initial layer of clean sand (minimum 10cm) directly around pipes

2. Compact carefully without damaging pipes or insulation

3. Place warning tape above pipework before completing backfill

4. Complete backfill with native soil, removing large stones

5. Ensure minimum coverage of 40cm above pipework

Moisture and Groundwater Considerations

For installations in areas with high groundwater tables:

1. "Lay the pre-insulated pipe system above the maximum groundwater level" where possible

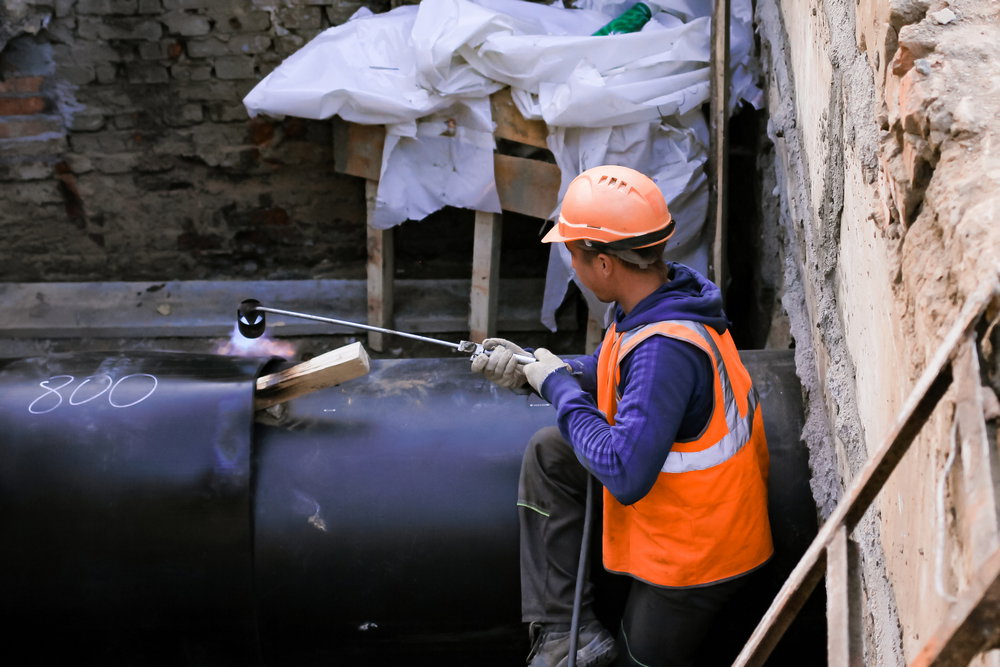

2. For constant groundwater exposure, use special joint installation methods:

   • Electric welding of joints

   • Radiation cross-linked heat-shrink joints double sealed with adhesive and mastic

3. Consider increasing trench depth by 10cm to enable placement of a drainage course in impervious soils

Addressing Common Challenges

Several challenges specific to the UK context require careful consideration:

1. Moisture ingress: Use closed-cell materials like foamglass or elastomeric foam to prevent water absorption. In corrosive soils, additional PIB sheets or HDPE casings are recommended.

2. Rodent damage: Implement metal mesh barriers or crushed stone backfill to deter burrowing animals, a common issue in rural UK.

3. Frost heave: In Scotland and Northern England, burial below the frost line (1.5–2 m) is essential. For shallow trenches, rigid foam insulation above pipes can mitigate frost penetration.

4. Mechanical damage: Ensure proper bedding and backfilling around the insulated pipes to prevent damage from soil pressure and sharp objects.

5. Thermal expansion: Allow for pipe movement with proper spacing and flexible connections where needed.

Conclusion

Underground pipe insulation represents a critical component of energy-efficient and durable infrastructure throughout the UK. By selecting appropriate materials, following installation best practices, and adhering to relevant regulations, property owners and contractors can ensure optimal performance and longevity of underground pipe systems.

Whether using foam-based insulation, polyurethane, foamglass, or pre-insulated pipe systems, proper installation remains the key determinant of success. The higher initial investment in quality insulation and professional installation typically yields significant returns through energy savings, reduced maintenance requirements, and extended system lifespan.

As the UK continues to prioritise energy efficiency and infrastructure resilience, underground pipe insulation will remain an essential consideration for both new construction and renovation projects across residential, commercial, and industrial applications.
