Product Details:
Pipe Sleeve Thickness: 25mm
Pipe Sleeve Length: 300mm
| Fire Sleeve Internal Diameter ID (mm) | For Pipes with Nominal Outside Diameter OD (mm) |
| 17mm | 15-19 |
| 21mm | 19-23 |
| 27mm | 25-29 |
| 34mm | 32-36 |
| 42mm | 40-44 |
| 48mm | 46-50 |
| 54mm | 52-56 |
| 60mm | 58-62 |
| 67mm | 65-69 |
| 76mm | 74-78 |
| 80mm | 78-82 |
| 89mm | 87-91 |
| 102mm | 100-104 |
| 108mm | 106-110 |
| 114mm | 112-116 |
| 127mm | 125-129 |
| 134mm | 132-136 |
| 140mm | 138-142 |
| 159mm | 157-161 |
| 169mm | 162-165 |

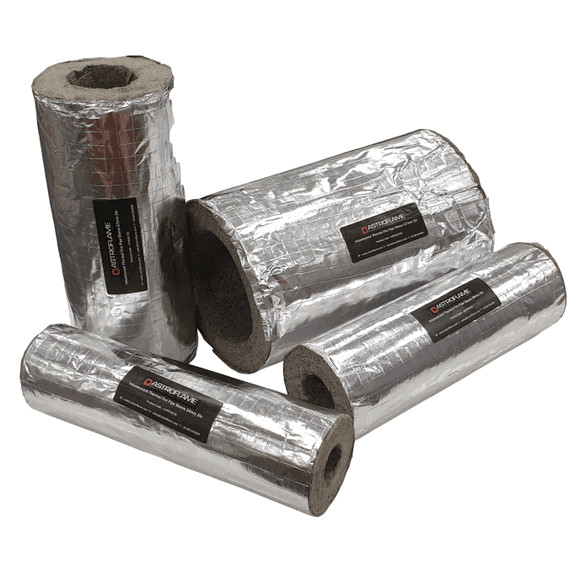

The Astroflame Insulated Fire Sleeve is an innovative, CE-marked, thermal, fire-rated pipe sleeve designed to offer comprehensive fire protection and insulation for both metal and plastic pipes.
Astroflame thermal fire rated pipe sleeve serves as a 4-in-1 solution, providing fire stopping, thermal and vapour sealing, and acoustic insulation for a variety of pipe diameters, including 17mm - 169mm. Each insulated pipe sleeve is 300mm long with 25mm thickness
Engineered to meet the highest safety standards, the Astroflame thermal fire pipe sleeve is CE approved. It is fire tested in accordance with EN 1366-3 with additional testing and assessments to BS 476 Part 20. Fire Ratings of EI30, EI60, EI90, EI120 or even up to EI240 minutes are offered depending on the construction type.

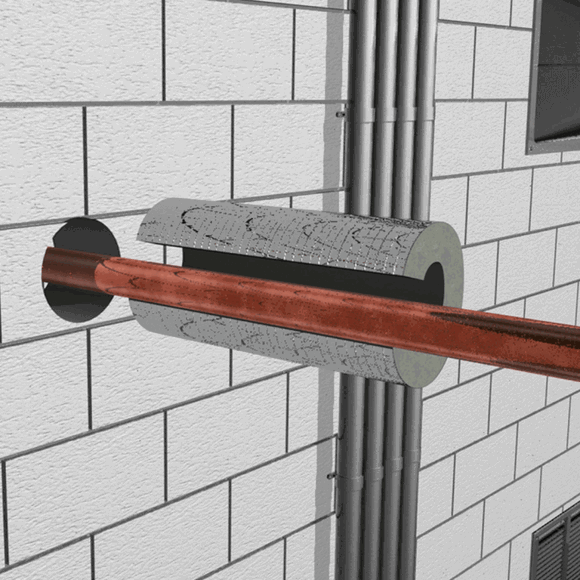

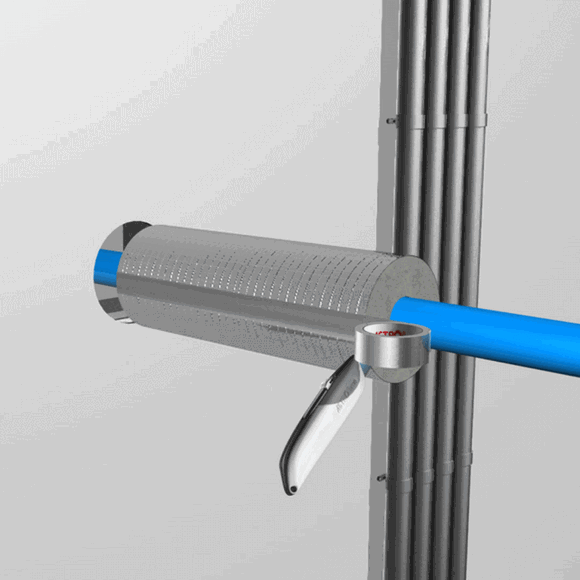

In Astroflame pipe fire sleeve, the compressible intumescent sleeve is supplied wrapped in a reinforced aluminium foil allowing it to be cut down its length and retro-fitted around the pipes.
The intumescent material within the sleeve expands in the event of a fire, effectively sealing the penetration and preventing the spread of flames and smoke. Its ability to replace two traditional solutions makes it a cost-effective choice for any construction project.
Key Features:
- Offers a 4-in-1 Solution – Fire, Acoustic, Thermal, and Vapour Seal
- Designed to firestop insulated metal and combustible plastic pipes.
- Up to EI120 Minutes Fire Rating in Gypsum Walls and Solid Floors
- Up to EI240 Minutes Fire Rated in Solid Walls
- Simple & quick to install, no fixings or sleeving required
- Cost Effective - 1 length of Fire Sleeve can replace two fire collars
- Lubrizol and CE Approved
| Product Type | Intumescent Pipe Sleeve |
| Brand | Astroflame |
| Material | A unique, low smoke, zero halogen intumescent material. |
| Thickness | 25mm |
| Length | 300mm |
| Colour | Grey |
| Finish | Foil |
| Fire Ratings |
Fire Ratings of o EI120 Minutes Fire Rating in Gypsum Walls and Solid Floors Up to EI240 Minutes Fire Rated in Solid Walls |
Cancellations, Returns And Refunds:
- You are free to cancel your order before we send you an order confirmation email with an estimated delivery date, and get a full refund
- Once the order is confirmed and an estimated delivery date is issued via email, Orders cannot be cancelled.
- Incorrectly ordered doods can be returned within 25 days of delivery at our discretion. The customer is responsible for ensuring the goods are returned back to the address provided, in good condition where they will be inspected prior to processing any refunds. Restocking fee may be applied
- For incorrect, damaged or faulty products, please contact us immediately after you receive delivery and we will assist accordingly.
Product Features
- Intumescent fire seals offer passive pipe protection
- 25mm thick thermal fire rated pipe sleeve is available to suit diameters between 17mm - 169mm. Each pipe sleeve is 300mm long
- Fire Sleeves offer Fire, Acoustic, Thermal and Vapour seal performance to a range of pipes passing through various wall or floor constructions.
- Insulated pipe sleeve is CE marked and fire tested in accordance with EN 1366-3 with additional testing and assessments to BS 476 Part 20
