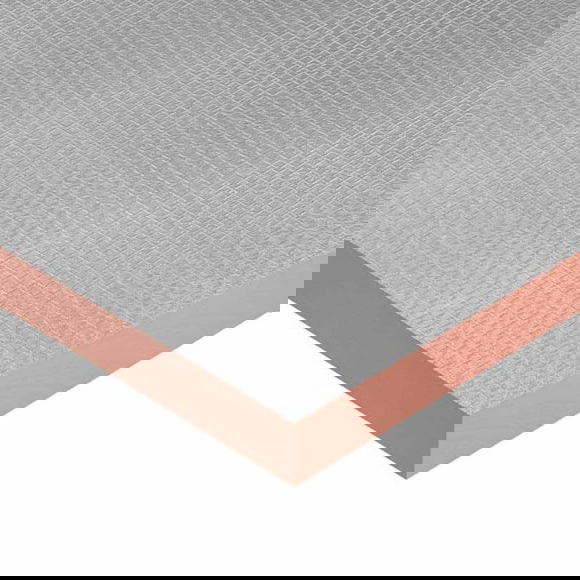

Kingspan Aluminium Faced Phenolic Duct Insulation Board - 1.2M x 600mm

Rated 5.0 by 3 Happy Customers
Top Rated Alternative Item:

Request a Quote

Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.

Phenolic foam Insulation boards from Kingspan, suit the whole range of duct dimensions and insulations. Closed-cell insulation ensures minimal heat transfer through the surface of the ducts. These phenolic duct boards provide thermal insulation to ductwork, plenums and associated equipment, installed both indoors and outdoors.

Phenolic foam insulation boards consist of a fibre-free rigid thermoset phenolic insulation core. They have an aluminium foil facing on the outer side and glass tissue based facing towards the inner side. oil, and faced on the other side (internal face) with a glass tissue-based facing. Both facings are adhesively bonded to the insulation core during manufacture. The foil layer ensures a continuous vapour barrier on the phenolic duct boards, thus making them moisture resistant. Phenolic duct boards by Kingspan can withstand the loads imposed by HVAC / building services ductwork at locations where ductwork supports and hangers are installed.

Product Specifications:

  • Length: 2400mm
  • Width: 1200mm
  • Thickness: 25mm and 30mm.

Key Features:

  • Easy to transport, handle and install.
  • Lightweight when compared to therma duct boards.
  • Phenolic duct boards are durable and chemically inert and safe to use.
  • Kingspan duct boards offer good compressive strength.
  • They can withstand heavy loads imposed on ductwork in HVAC and building applications.
  • Phenolic duct insulation boards pose a low fire hazard and do not require automatic sprinkler protection.
  • Does not melt, drip or produce flaming droplets.
  • Phenolic duct boards effectively insulate ductwork.
  • They protect the ducts from dirt, dust, condensation, sweating and other issues.
  • Duct insulation by Kingspan improves air quality.

Applications

  • Phenolic duct boards suit a whole range of duct dimensions and insulation
  • It can be used to insulate ductwork, plenums and associated equipment, installed both indoors and outdoors.

Product Specifications:

  • Fire Performance: B,s2,d0
  • Thermal Conductivity : 0.022 W/mK at + 10°C
  • Material: Phenolic foam
  • Unit type: Board

Standards and Approvals:

  • BS EN ISO 9001: 2015 (Quality management systems Requirements)
  • BS EN ISO 14001: 2015 (Environmental Management Systems Requirements),
  • BS ISO 45001: 2018 (Occupational health and safety management systems)
  • BS EN ISO 50001: 2018 (Energy Management Systems).
  • Phenolic foam insulation for ducts by Kingspan.
  • Available as 1.2m x 600mm insulation boards.
  • Low thermal conductivity of  0.022 W/mK, helps prevent heat loss.
  • Kingspan duct board has an aluminium foil facing on the outer side and a glass tissue-based facing on the inner side.
  • Easy to use and install.
Insulation Type  Duct Insulation Board
Brand  Kingspan
Length  1200mm
Width  600mm
Thickness Available  25mm, 30mm
Service temperature   - 20°C to + 80°C.
Material  Phenolic foam
Fire Classification  Class B
Thermal Conductivity  0.022 W/mK
Application  Duct Insulation
5.0
Average Rating
(3 Reviews)
Write Review
Free Collections Available
Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245
Free pick-up locations include - Glasgow, Birmingham,  Chorley, Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds



Delivery Terms
Order Value (Excluding VAT)  Delivery Condition
No minimum order

Free Delivery within 25 Miles of Erdington, Birmingham

Orders above £125 Free Delivery within 25 miles of our warehouses in Glasgow, Birmingham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds.
Orders above £370 Free Delivery across mainland GB
Delivery Charges Carriage costs start from £19.50, Ex.VAT for postcodes that do not fall under the free delivery criteria



Customer Reviews

Our Customers Include

Brand
Brand
Brand
Brand
Brand
Brand
Brand
Brand
Rated 5.0 by 3 Happy Customers

Frequently Asked Questions

FAQs for Kingspan Aluminium Faced Phenolic Duct Insulation Board
secure payment seal
These boards come in the following specifications: Length: 2400mm, Width: 1200mm, and Thickness options of 25mm and 30mm.
Kingspan Aluminium Faced Phenolic Duct Insulation Board

Kingspan Aluminium Faced Phenolic Duct Insulation Board offers excellent insulation for HVAC systems, minimizing heat loss with its low thermal conductivity of 0.022 W/mK. Made from fibre-free rigid thermoset phenolic foam, it features an aluminum foil facing that promotes fire safety, rated B,s2,d0. Its lightweight design simplifies installation, making it ideal for various applications, including refrigerated ducts and clean rooms. Additionally, it's moisture-resistant, preventing mold growth and enhancing indoor air quality. With options for thickness and free delivery over certain amounts, it's a practical choice for energy efficiency. You might find more about its benefits and features ahead.

Key Takeaways

  • Kingspan Aluminium Faced Phenolic Duct Insulation Board features low thermal conductivity of 0.022 W/mK, enhancing energy efficiency and reducing heat loss.
  • It is lightweight and easy to handle, facilitating quicker installation and lower labor costs.
  • The insulation has a fire performance rating of B,s2,d0, ensuring compliance with safety standards.
  • Available in thickness options of 25mm and 30mm, it is suitable for various HVAC applications.
  • Made from eco-friendly materials, it supports sustainability and contributes to a circular economy.

Product Overview

When it comes to efficient duct insulation, the Kingspan Aluminium Faced Thermoduct Insulation Boards stand out for their impressive features. Measuring 2400mm x 1200mm, with alternative sizes available, these boards offer versatility for various applications.

You'll appreciate their lightweight design, which makes handling and installation much easier, addressing common installation challenges that often arise on-site.

Constructed from fibre-free rigid thermoset phenolic foam and covered with an aluminium foil facing, these boards provide excellent thermal performance, boasting a low thermal conductivity of 0.022 W/mK. This means they help maintain energy efficiency in both commercial and residential settings.

Additionally, with a fire performance rating of B,s2,d0 and compliance with multiple standards, you can trust that safety is prioritized.

As market trends shift towards energy efficiency and sustainability, these insulation boards align perfectly with those goals. They not only meet the demands of modern HVAC systems but also contribute to reducing operational costs.

Key Features

The Kingspan Aluminium Faced Thermoduct Insulation Boards pack a punch with their standout features that cater to both performance and safety. One of the key highlights is their low thermal conductivity of just 0.022 W/mK, which means you'll experience excellent thermal performance while minimizing heat loss.

You can choose from thickness options of 25mm and 30mm, allowing you to customize the insulation based on your specific needs.

When it comes to safety, these boards have a fire performance rating of B,s2,d0, providing you with peace of mind compared to conventional materials. Plus, their lightweight design offers significant installation benefits, making transport and setup easier. This not only saves you time but also reduces labor costs on-site.

Constructed from rigid thermoset phenolic foam and featuring an aluminum foil facing, these boards excel in durability and moisture resistance. This prevents issues like mold and mildew growth, ensuring a healthier environment.

Ultimately, the Kingspan Aluminium Faced Thermoduct Insulation Boards combine cost efficiency with high performance, making them a smart choice for your insulation needs.

Performance Characteristics

Kingspan Aluminium Faced Thermoduct Insulation Boards deliver impressive performance characteristics that boost their role in HVAC systems.

These boards feature a low thermal conductivity of just 0.022 W/mK, which means they effectively minimize heat loss. This low thermal conductivity improves the overall energy efficiency of your system, helping you save on operational costs while ensuring a comfortable environment.

With a high R-value, the insulation boards contribute to insulation longevity, providing lasting performance throughout their service life.

Fire safety is also a priority, as these boards are rated B,s2,d0, ensuring they meet stringent building regulations for fire performance. You can feel confident knowing that your HVAC system is protected.

Moreover, the boards maintain their structural integrity across a wide temperature range of -20°C to +80°C, making them suitable for various HVAC applications.

Their moisture-resistant properties further prevent mold and bacteria growth, promoting better air quality in enclosed spaces.

Choosing Kingspan Aluminium Faced Thermoduct Insulation Boards means investing in a reliable, efficient, and safe insulation solution for your HVAC needs.

Environmental Impact

When you choose Kingspan Aluminium Faced Phenolic Duct Insulation Boards, you're opting for a product made from eco-friendly materials that help reduce your environmental impact.

These boards not only improve energy efficiency in buildings but also support sustainability through their recyclability at the end of their lifecycle.

Eco-Friendly Materials Utilization

Many sustainable construction projects benefit from using eco-friendly materials like Kingspan Aluminium Faced Phenolic Duct Insulation Boards. These boards are made from fibre-free rigid thermoset phenolic foam, emphasizing sustainable sourcing and minimizing environmental impact. Their low thermal conductivity of 0.022 W/mK guarantees that they align with various environmental standards, making them ideal for green building projects seeking LEED certification.

At the end of their life cycle, these boards are recyclable, contributing to a circular economy and reducing landfill waste. This material durability not only guarantees long-lasting performance but also supports your sustainability goals. Here's a quick overview of their eco-friendly benefits:

Feature Benefit
Sustainable Sourcing Reduces environmental footprint
Material Durability Long lifespan, less frequent replacements
Recyclability Promotes a circular economy
Low Thermal Conductivity Improves energy efficiency in HVAC systems
LEED Certification Support Meets green building standards

Energy Efficiency Contribution

Energy efficiency is a vital aspect of modern construction, and the Kingspan Aluminium Faced Phenolic Duct Insulation Boards excel in this area. With a low thermal conductivity of just 0.022 W/mK, these boards significantly reduce heat loss, enhancing the overall energy efficiency of HVAC systems. This means you'll enjoy noticeable energy savings, which translates into cost benefits for both commercial and residential applications.

Their high R-value further contributes to lower energy consumption, allowing you to minimize operational costs effectively. Plus, the insulation effectively guards against dirt and moisture, supporting ideal indoor air quality and reducing the chances of mold growth. This not only promotes energy efficiency but also creates a healthier living or working environment.

Durability is another key feature of Kingspan boards. Their fire-rated properties lessen the need for frequent replacements and repairs, which means less waste and a smaller environmental impact over the product's lifecycle.

Recyclability and Sustainability Options

The Kingspan Aluminium Faced Phenolic Duct Insulation Boards not only improve energy efficiency but also prioritize sustainability and recyclability. They're crafted from eco-friendly materials, which means they contribute to a lower environmental footprint compared to traditional insulation options.

At the end of their lifecycle, these boards can be recycled, promoting sustainable waste management practices that align with your values.

By using phenolic foam with a low thermal conductivity of 0.022 W/mK, these boards help minimize energy consumption in buildings. This is essential for anyone looking to make a positive impact.

Furthermore, their compliance with multiple environmental standards, like ISO 14001, reflects a commitment to sustainable manufacturing and environmental protection.

If you're involved in green building projects, utilizing these insulation boards can even contribute to LEED certification, enhancing the sustainability profile of your construction initiatives.

Embracing recycling processes and sustainable practices not only benefits your immediate environment but also fosters a community focused on a greener future.

Applications and Use Cases

When it comes to applications, Kingspan Aluminium Faced Phenolic Duct Insulation Boards shine in commercial HVAC systems, providing essential energy efficiency.

You can also use them for clean room insulation, where maintaining specific environmental conditions is vital.

Additionally, their effectiveness in refrigerated duct applications guarantees peak performance even in demanding temperature settings.

Commercial HVAC Systems

Optimizing climate control in commercial spaces often hinges on the effectiveness of HVAC systems, where insulation plays a significant role. Kingspan Aluminium Faced Phenolic Duct Insulation Boards are designed to minimize energy loss, providing a low thermal conductivity of 0.022 W/mK. This is essential for maintaining the efficiency and performance of your HVAC systems, whether you're involved in new constructions or retrofitting projects.

These insulation boards not only excel in thermal performance but also guarantee safety. With a fire performance rating of B,s2,d0, you can trust that your commercial environment meets stringent safety regulations.

Plus, their lightweight design makes installation straightforward, so you can focus on creating a comfortable space.

Moisture resistance is another key feature, helping to prevent mold and mildew growth. This is especially important in settings like hospitals and laboratories, where air quality standards are high.

Clean Room Insulation

In various clean room applications, maintaining strict environmental controls is vital for ensuring product integrity and safety. Kingspan Aluminium Faced Phenolic Duct Insulation Boards are specifically designed to meet these needs.

Here are three key benefits:

  1. Low Thermal Conductivity: With a rating of 0.022 W/mK, these boards minimize heat loss, supporting precise temperature control.

  2. Moisture Resistance: Their moisture-resistant properties prevent mold and bacteria growth, which is essential for adhering to clean room regulations.

  3. Improved Airflow Management: The smooth internal surface reduces air resistance, promoting efficient airflow and minimizing contamination risks.

These insulation boards not only improve safety, with a fire performance rating of B,s2,d0, but they also simplify installation in clean rooms.

Their lightweight design makes handling easy, reducing labor costs and installation time.

By choosing Kingspan insulation, you're aligning your facility with the stringent requirements of clean room environments, ensuring that you maintain the highest standards of cleanliness and performance.

This choice ultimately supports your commitment to excellence in product quality and safety, fostering a sense of belonging in a community that values precision and reliability.

Refrigerated Duct Applications

For anyone looking to improve the efficiency of their cooling systems, Kingspan Aluminium Faced Phenolic Duct Insulation Boards offer a superior solution for refrigerated duct applications. These boards are designed specifically for use in refrigerated systems, featuring a low thermal conductivity of just 0.022 W/mK. This means they effectively minimize heat gain, ensuring your cooling systems operate at peak performance.

Moisture-resistant properties help prevent condensation buildup, reducing the risk of mold and mildew. This is essential in maintaining a healthy environment for refrigerated air.

Additionally, with a fire performance rating of B,s2,d0, these insulation boards meet strict fire safety regulations, providing peace of mind in refrigerated settings.

Their lightweight design makes installation a breeze, whether you're working on new construction or retrofitting existing ductwork.

Plus, the smooth internal surface of the duct insulation minimizes air resistance, enhancing the overall efficiency of your refrigerated air distribution system.

Installation Guidelines

Effective installation of Kingspan Aluminium Faced Thermoduct Insulation Boards is essential for maximizing thermal and fire performance in HVAC systems.

To guarantee a successful installation, keep these installation tips in mind:

  1. Cut with Care: Use a sharp utility knife to cut the boards to the required size, making certain clean edges for a proper fit within the ductwork.

  2. Stagger Your Boards: Install the boards in a staggered pattern to improve structural integrity and thermal performance while preventing cold spots.

  3. Seal Those Joints: Align the boards tightly to minimize air leakage and be certain to seal the joints properly with the appropriate adhesive or tape according to manufacturer guidelines.

Delivery and Ordering Information

When ordering Kingspan Aluminium Faced Phenolic Duct Insulation Boards, you'll find a range of delivery options tailored to meet your needs.

If you're located within 25 miles of Erdington, Birmingham, you can enjoy free delivery for orders over £125. For those in mainland GB, orders exceeding £370 also qualify for free delivery. If your postcode isn't eligible, don't worry; delivery charges start from just £19.50, and there's no minimum order requirement.

You can also choose to collect your orders for free from various warehouse locations, including Glasgow, Birmingham, and Nottingham. This option can be convenient for those who prefer immediate access to their products.

If you need a custom delivery quote, there's an easy click option available to help guarantee timely delivery and minimize any project disruptions.

Throughout the order process, you'll receive regular updates on stock availability and pricing. Plus, you can always reach out to customer support for any inquiries related to ordering and delivery.

This way, you'll feel confident and informed every step of the way as you complete your project.

Customer Reviews

Customers consistently praise the Kingspan Aluminium Faced Phenolic Duct Insulation Board for its impressive performance and user-friendly design. With an average rating of 5.0 from verified users, it's clear that customer satisfaction is high.

Here are a few reasons why:

  1. Lightweight Design: Users find the board easy to transport and install, making their installation experiences smoother and more efficient.

  2. High Thermal Performance: Its low thermal conductivity of 0.022 W/mK minimizes heat loss in HVAC systems, which many customers appreciate for its effectiveness.

  3. Moisture Resistance: The board's moisture-resistant properties prevent mold and mildew growth, contributing to improved indoor air quality.

Reviewers frequently mention the fire safety rating of B,s2,d0, which offers significant peace of mind for both commercial and residential installations.

The combination of these features not only improves the functionality of your HVAC systems but also aligns with the modern need for safety and efficiency.

By choosing Kingspan, you join a community of satisfied users who value quality and performance in their insulation solutions.

You'll find that their positive installation experiences only add to the board's appeal.

Comparison With Other Insulations

When comparing Kingspan Aluminium Faced Phenolic Duct Insulation Board to other insulation materials, you'll notice significant differences in thermal performance and fire resistance.

With a thermal conductivity of just 0.022 W/mK, it outperforms options like mineral wool, which is less efficient.

Additionally, its superior fire rating and moisture resistance make it a better choice than many traditional and cellulose-based insulations.

Thermal Performance Comparison

Kingspan Aluminium Faced Phenolic Duct Insulation Board stands out in thermal performance, especially when compared to traditional insulation materials. Its impressive thermal efficiency provides insulation benefits that can make a significant difference in energy conservation.

Here are three key points that highlight its superiority:

  1. Lower Thermal Conductivity: With a thermal conductivity of just 0.022 W/mK, Kingspan boards outperform traditional PIR insulation, which typically ranges from 0.022 to 0.025 W/mK.

  2. Enhanced R-Value: Kingspan's R-value surpasses that of standard fiberglass insulation, averaging about R-2.9 per inch, making it more effective in preventing heat loss.

  3. Reduced Heat Loss: Compared to mineral wool, which has a thermal conductivity between 0.035 and 0.045 W/mK, Kingspan boards offer significantly lower heat loss, enhancing overall energy efficiency.

Fire Resistance Evaluation

Often overlooked in insulation choices, fire resistance plays a vital role in ensuring safety in building applications. When comparing various insulations, Kingspan Aluminium Faced Phenolic Duct Insulation Board stands out due to its exceptional fire safety ratings. It holds a B,s2,d0 classification, indicating limited smoke emissions and no flaming droplets. This performance showcases its alignment with strict insulation standards.

Here's a quick comparison of different insulation materials:

Insulation Type Fire Performance Rating
Kingspan Phenolic B,s2,d0
Polyurethane Varies (higher risk)
Mineral Wool Generally lower
Polystyrene Varies (higher risk)

Phenolic insulation maintains structural integrity under high temperatures, while others may degrade or release harmful gases. Its low combustibility often eliminates the need for automatic sprinkler systems, which can lower installation costs. In fire tests, phenolic insulation typically shows a lower heat release and smoke production rate compared to mineral wool and polystyrene, enhancing fire safety, especially in HVAC applications. Ultimately, choosing phenolic insulation means prioritizing both safety and compliance with industry standards.

Maintenance and Care Tips

To guarantee the longevity and performance of your Aluminium Faced Phenolic Duct Insulation Boards, regular inspections are essential. By doing so, you can catch signs of wear or damage early, promoting peak functionality.

Here are three key maintenance tips to follow:

  1. Inspection Frequency: Check your insulation boards at least twice a year. Look for any visible damage or deterioration that could impact their effectiveness.

  2. Cleaning Methods: Use mild detergents and a soft cloth for cleaning. Avoid harsh chemicals, as they can harm the aluminium facing and insulation material.

  3. Moisture Monitoring: Be vigilant about moisture accumulation around the ducts. Moisture can lead to reduced insulation performance and potential mold growth. Promote proper ventilation is maintained.

Additionally, make certain any cuts or repairs made to the insulation boards are sealed properly. This helps maintain thermal performance and prevents air leakage.

Always follow the manufacturer guidelines, as they stress the importance of keeping the cladding intact for fire safety standards.

Frequently Asked Questions

Is Phenolic Insulation the Best?

When considering insulation, you'll find phenolic insulation excels in energy efficiency and thermal performance. Its unique properties not only improve comfort but also contribute to a sustainable environment, making it a top choice for your projects.

What Is Phenolic Insulation Board?

Phenolic insulation boards are rigid foam materials offering excellent thermal resistance. They're lightweight and easy to install, making them perfect for various applications. You'll appreciate their durability and fire safety benefits, ensuring a secure, comfortable environment.

How Thick Is a Phenolic Insulation Board?

Phenolic insulation boards typically come in various thicknesses, often around 25mm or 30mm. Choosing the right phenolic thickness improves insulation benefits, helping you create a comfortable, energy-efficient space that truly feels like home.

Is Kingspan Phenolic Foam?

Yes, Kingspan uses phenolic foam, offering impressive benefits like low thermal conductivity and moisture resistance. These properties make it ideal for various applications, ensuring you can achieve energy efficiency and safety in your projects effortlessly.

Conclusion

In summary, Kingspan aluminium faced phenolic duct insulation board stands out for its excellent thermal performance and versatility in various applications. Its lightweight design and environmental benefits further augment its appeal. By choosing this insulation, you're investing in a solution that not only improves energy efficiency but also contributes to sustainability. Whether for commercial or residential use, it meets high standards and can effectively support your insulation needs. Consider it for your next project to achieve ideal results.

Add a Review

Your email address will not be published.

Request Site Visit

closeclose

Delivery Charges

closeclose
In Store Pickup Available
Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In Store Pickup option at the checkout.
Free Collections Available
Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245
Free pick-up locations include - Glasgow, Birmingham,  Chorley, Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds



Delivery Terms
Order Value (Excluding VAT)  Delivery Condition
No minimum order

Free Delivery within 25 Miles of Erdington, Birmingham

Orders above £125 Free Delivery within 25 miles of our warehouses in Glasgow, Birmingham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds.
Orders above £370 Free Delivery across mainland GB
Delivery Charges Carriage costs start from £19.50, Ex.VAT for postcodes that do not fall under the free delivery criteria



Request a Call back

closeclose

Request a Quote

closeclose
