Marmox Thermablock - Load Bearing Thermal Insulation Best Seller
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
| Width | Length | Thickness | Boards Per pack | Linear Meters Per Pack |
| 100mm | 600mm | 65mm | 18 | 10.8 LM |
| 140mm | 600mm | 65mm | 12 | 7.2 LM |
| 215mm | 600mm | 65mm | 10 | 6 LM |
In response to the revisions to the Building Regulations back in 2010, the Marmox Thermablock was designed to be THE perfect solution for thermal bridging. It is a lightweight insulation board with superior thermal efficiency. It reduces heat loss in areas where building materials of different thermal properties come together, like where the wall cuts into the floor (bottom of the wall), or where the roof meets.
It is so thoughtfully made with such high compressive strength that it easily carries a load of two storeys in a building. They are approved by a range of authorities and have been certified by many agencies as well. The materials used to make Marmox Thermablock are sustainably sourced and cause no harm to the environment.
The core of this exceptional insulation board is made of specially formulated fire-resistant extruded polystyrene. This dense thermal board is further strengthened by load-bearing lightweight columns made of epoxy composite placed at 60mm intervals. Marmox Thermablock is covered on both sides with a layer of alkali-resistant fibreglass mesh embedded in polymer concrete.
In addition to reducing heat loss that happens due to thermal bridging (which occurs when two different materials with different thermal efficiencies meet, allowing heat to escape outside through the material that conducts heat easily), it also creates a waterproof barrier, thus eliminating water ingress or the growth of moulds. Marmox Thermoblock is impermeable to water and can be used even under damp conditions.
Key Features:
- Marmox Thermoblock is an excellent solution to prevent and eliminate thermal bridging.
- Specially designed thermal protection boards that help keep heat indoors when used at the bottom of the wall.
- Fire and moisture-resistant heat insulation boards made of specially formulated extruded polystyrene.
- Marmox Thermoblock has a very impressive compressive strength that can support one to two storeys of a building.
- Stable, durable, and long-lasting energy-efficient insulation boards.
- Waterproof insulation boards.
- Complies with parts L, A, and C of the building regulations.
- Environmentally friendly product, with zero GDP and a very low GWP.
Applications:
Marmox Thermablock can be used
- Marmox Thermablock can be used on party walls.

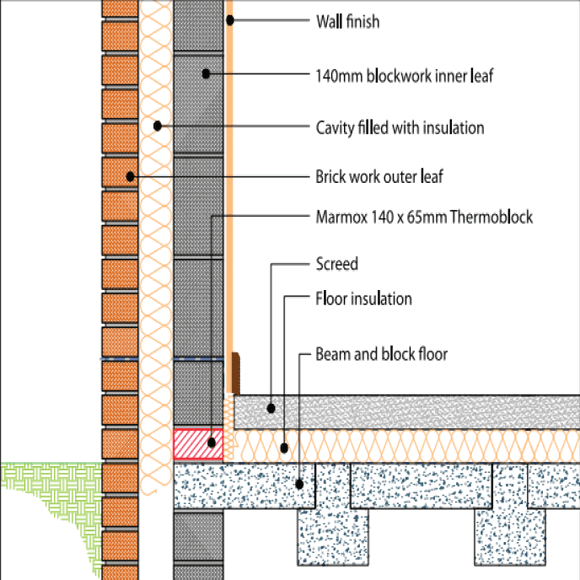

- At the inner leaf base in the perimeter wall.
- Beneath door and window frames.
- Outer leaves, parapets.
- Solid single-leaf walls.
- Roof and wall insulation junctions.
Approvals and Certifications:
Marmox thermablock complies with
- The Code for Sustainable Homes;
- Part L, A and C of the Building regulations;
- BBA certified, Agreement Certificate 10/4778.
- Manufactured and supplied according to ISO9001 (Bureau Veritas)
- NHBC accept its use as meeting their technical requirement.
This product is a high-performance Thermablock thermal bridging solution that provides heat barrier boards and thermal protection for critical areas where thermal bridging can lead to heat loss.
- Product Size: 600mm x 65mm
- Width Available: 100mm, 140mm and 215mm
- Marmox Thermablock is the perfect solution for thermal bridging
- Load-bearing insulation ideal for use at the bottom of the wall.
- With high compressive strength and exceptional thermal resistance, they can support about two storeys of a building.
- Made with specially formulated fire-resistance extruded polystyrene
- Complies with Part A, C and L of the Building regulations
| Insulation Type | Load Bearing Insulation |
| Brand | Marmox |
| Product Code | Marmox Thermablock |
| Material | Extruded Polystyrene with alkali-resistant fibreglass mesh embedded in polymer concrete. |
| Length | 600mm |
| Width | 100mm, 140mm, 215mm |
| Thickness | 65mm |
| Thermal Conductivity | 0.078W/mK |
| Mean Compressive Strength | 6.5N/mm2 |
| Density | 348kg/m3 |
| Application | To reduce thermal bridging at the bottom of the wall. |
| Free Delivery Terms | |
|---|---|
| Order Value | Delivery Charge |
| Upto £130 | £18 |
| Above £130 | Free Delivery |
Returns, Cancellations and refunds:
You are free to cancel your order before we send you an order confirmation email and get a full refund
Items ordered in excess: If you wish to return the items ordered in excess and claim a refund, please note that a restocking fee may be applicable. Please let us know if you wish to do so within 14 days from the date of delivery via email. You have to return the goods to us at the address that we will share in the email.
Damaged goods: Please make sure you check the delivery, and if any part of it is damaged then you must mark this on the delivery note before the driver leaves otherwise we are unable to replace any damaged goods, if you are unsure then please call us before the driver leaves.
If the items are signed for without checking, we cannot replace/refund the insulation.
Customer Reviews
“ Contractor recommended. delivered on time. It's a must buy . 5 on 5 from my side ”Patrick
Verified Buyer
“ good price. one-stop-shop for insulation products really. quick delivery too”Cody
Verified Buyer
“ It was delivered on time without any damage. have used thermablock on previous projects. The best on...”Alex
Verified Buyer
“ I buy regularly from these guys and they always deliver genuine products. product is just as describ...”Brody
Verified Buyer
“ The product was delivered on time. Ive used it on many projects before and have never heard anything...”Elliot
Verified Buyer
Our Customers Include
Installation Guide
| Insulation Type | Load Bearing Insulation |
| Brand | Marmox |
| Product Code | Marmox Thermablock |
| Material | Extruded Polystyrene with alkali-resistant fibreglass mesh embedded in polymer concrete. |
| Length | 600mm |
| Width | 100mm, 140mm, 215mm |
| Thickness | 65mm |
| Thermal Conductivity | 0.078W/mK |
| Mean Compressive Strength | 6.5N/mm2 |
| Density | 348kg/m3 |
| Application | To reduce thermal bridging at the bottom of the wall. |
Discover how Marmox Thermablock enhances thermal insulation with its load-bearing design and low thermal conductivity of 0.05W/mK, along with a compressive strength of 9N/mm2. This innovative solution enhances energy efficiency by reducing heat loss at wall-floor junctions, resulting in significant savings on heating and cooling expenses. Additionally, it provides excellent sustainability benefits, promoting a more environmentally friendly approach. With its water impermeability and ability to prevent thermal bridging, Marmox Thermablock establishes a high standard for load-bearing thermal insulation. Learn about its advantages, installation process, suitable applications, and maintenance tips to ensure optimal long-term performance. Discover a new level of thermal efficiency!
Key Points
- Revolutionary load-bearing thermal insulation block.
- Low thermal conductivity of 0.05W/mK.
- Compressive strength of 9N/mm2.
- Perfect for minimising heat loss at junctions.
- Versatile application in a range of construction projects.
Product Overview
Introducing a groundbreaking solution for improving the thermal performance of wall bases - Marmox Thermoblock, a load-bearing insulation block designed for various construction applications. This innovative product opens up a world of design possibilities and construction innovations for your projects. With its low thermal conductivity of 0.05W/mK, the Thermoblock guarantees effective insulation at the base of masonry or timber-frame walls. Not only does it provide excellent thermal insulation, but it also boasts a compressive strength of 9N/mm2, offering structural support where needed.
Imagine the design possibilities this brings to your construction projects - a versatile solution that can be used in a variety of wall types including brick, block, wooden frame, timber, or steel frame walls. The Thermoblock's impermeability to water means you can confidently use it in damp conditions without worrying about its performance. Embrace the construction innovations that Marmox Thermoblock brings to the table and enhance your projects to new heights of efficiency and effectiveness.
Thermal Efficiency
Marmox Thermoblock offers excellent energy efficiency benefits due to its low thermal conductivity of 0.05W/mK, ensuring effective insulation.
By comparing thermal conductivity, you can see the Thermoblock's superior performance in reducing heat loss at wall-floor junctions, preventing thermal bridging.
This feature makes it a reliable choice for improving overall thermal efficiency in construction projects.
Energy Efficiency Benefits
Improving the energy efficiency of your building, Marmox Thermoblock offers outstanding thermal performance with a low thermal conductivity of 0.05W/mK. This characteristic helps to reduce heat loss at wall-floor junctions, resulting in significant savings on heating and cooling costs. By incorporating Thermoblock into your construction, you not only enhance the sustainability of your building but also help to promote a more environmentally friendly approach. The table below outlines the main advantages of Marmox Thermoblock in maximising energy efficiency:
|
Energy Efficiency Benefits |
|
Reduces heat loss at junctions |
|
Cost savings on energy bills |
|
Improves sustainability impact |
|
Contributes to a greener environment |
Thermal Conductivity Comparison
Comparing thermal conductivity levels is crucial when evaluating the thermal performance of insulation materials. Marmox Thermoblock stands out with its low thermal conductivity of 0.05W/mK, a result of its unique material composition. This exceptional feature guarantees excellent thermal performance by effectively reducing heat loss at wall-floor junctions.
Moreover, the high compressive strength of 9N/mm2 in Thermoblock speaks to its outstanding structural integrity, supporting its load-bearing capacity. The impermeability to water makes Thermoblock suitable for damp conditions, enhancing its versatility.
With a thermal conductivity matching that of Thermoblock, thermal bridging is effectively prevented, ultimately improving building insulation. The combination of material composition and structural integrity in Marmox Thermoblock sets a high standard for load-bearing thermal insulation.
Installation Guide

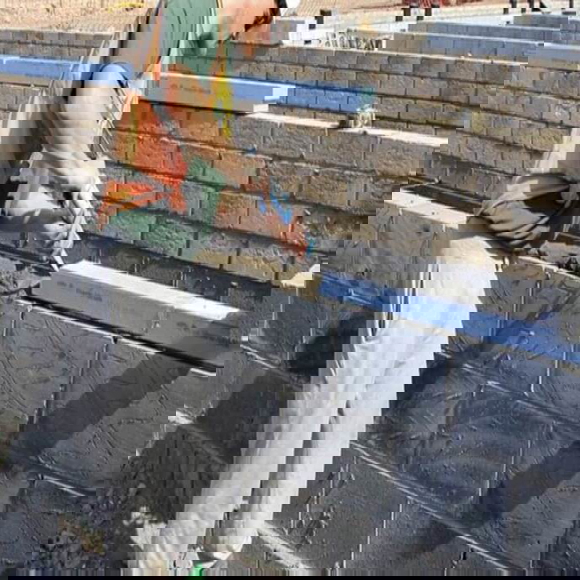

To begin the installation of Marmox Thermoblock for thermal insulation, ensure that the base of the wall is clean and free from debris. When positioning the Thermoblock, take note of these installation tips to ensure a successful setup. Firstly, avoid common errors such as not aligning the blocks correctly or leaving gaps between them. It is crucial to adhere to the manufacturer's recommendations for optimal outcomes.
When it comes to installation, you may be contemplating DIY versus professional installation. Although some proficient DIY enthusiasts can manage the installation procedure, it is often advisable to seek assistance from professionals, particularly if you are uncertain about any step. Professionals possess the knowledge and tools necessary to guarantee the correct installation of the Thermoblock, delivering exceptional thermal insulation advantages.
Nevertheless, if you opt for the DIY approach, be sure to thoroughly read the instructions, take your time, and review your work carefully to prevent any mistakes that could affect the efficiency of the insulation.
Advantages and Characteristics
If you're looking to understand the advantages and characteristics of Marmox Thermoblock, you'll find that its innovative design offers exceptional thermal insulation properties. Here are some key benefits and features to consider:
- Cost Effectiveness: By providing both structural support and insulation in one product, Marmox Thermoblock offers a cost-effective solution for your construction needs.
- Sustainability Benefits: With a thermal conductivity of 0.05W/mK, Thermoblock guarantees efficient insulation, reducing energy consumption and promoting sustainability.
- Waterproof Barrier: Impermeable to water, Thermoblock can be used in damp conditions, creating a reliable waterproof barrier for your construction projects.
- Versatile Compatibility: Compatible with various wall types, including brick, block, timber frames, and steel frames, Thermoblock aids in reducing heat loss and meeting building regulations.
- Structural Support: With a mean compressive strength of 9N/mm2, Marmox Thermoblock not only insulates but also provides essential structural support for your building.
Areas of Application
Wondering where Marmox Thermoblock can be effectively applied to improve thermal insulation in construction projects? Marmox Thermoblock is ideal for various application areas in load-bearing structures to enhance thermal performance. Have a look at the table below for some key areas where you can use Marmox Thermoblock to achieve excellent thermal insulation in your construction projects:
|
Application Areas |
Benefits |
|
Base of masonry walls |
Eliminates cold bridges |
|
Base of timber-frame walls |
Provides a waterproof and moisture barrier |
|
Brick walls |
Suitable for brick, block, wood, or steel frame walls |
|
Steel frame walls |
Offers fire resistance up to Class E for 120 minutes |
Whether you are working on load-bearing structures or construction projects, incorporating Marmox Thermoblock can significantly enhance the thermal insulation capabilities while ensuring structural integrity. Choose Marmox Thermoblock for reliable thermal performance in a variety of construction applications.
Maintenance and Care
Regularly inspect the condition of your Marmox Thermoblock for any signs of damage or deterioration to maintain its performance and longevity. To guarantee your Marmox Thermoblock stays in top shape, follow these maintenance tips:
- Clean the surface of the Thermoblock as needed to remove any dirt or debris that could affect its performance.
- Make sure that the joints and seals of the insulation boards are maintained using Marmox MSP360 to prevent water ingress.
- Adhere to the installation guidelines provided by Marmox to ensure the long-term effectiveness of the Thermoblock.
- Address any issues promptly to prevent potential problems with thermal bridging.
- Familiarise yourself with repair techniques and troubleshooting methods to keep your Thermoblock durable and long-lasting.
Commonly Asked Questions
What is the strength of Marmox Thermoblock?
Strength analysis on Marmox Thermoblock reveals a mean compressive strength of 9.0 N/mm2. Its capacity to withstand significant loads at wall-floor junctions guarantees structural stability. The material composition emphasizes load-bearing insulation capabilities, effectively preventing thermal bridging.
What is the thermal conductivity of Marmox?
To understand Marmox thermal conductivity, know it's 0.05W/mK. This low rate brings benefits like reducing heat loss effectively. Its insulation helps boost energy efficiency in buildings. Using Marmox can assist in complying with Building Regulations.
Is Thermoblock Safe?
Yes, Thermoblock is safe for installation. The product ensures long-term durability and offers peace of mind. With its fire resistance and stability, you can rely on Thermoblock to maintain the security and efficiency of your building.
What is load-bearing insulation?
Load-bearing insulation provides structural support and thermal efficiency. Its benefits include maintaining building integrity, improving energy efficiency, and meeting regulations. By utilising it, you guarantee a secure structure while reducing heat loss.
Summary
To conclude, Marmox Thermablock offers a reliable solution for load-bearing thermal insulation needs.
With its excellent thermal performance and simple installation process, it provides many advantages for different application areas.
By including this product in your construction projects, you can ensure energy efficiency and long-term durability.
Remember to follow the installation guide for optimal results and benefit from the maintenance-free care offered by Marmox Thermablock.
