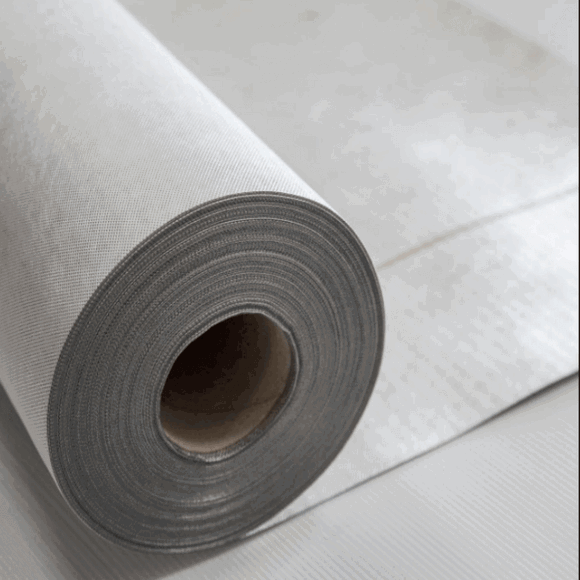

Novia Reflex reflective breather membrane is an innovative reflective breather membrane designed to provide superior moisture resistance. It is an ideal breather membrane for all pitched cold and warm roofs and insulated wall applications.
This high-quality, versatile, reflective breather membrane, when used in suitable constructions the membrane delivers improved R and μ values. It is lightweight and very easy to install.
Novia reflex reflective roof and wall breather membrane is fully CE approved and CPR compliant. It also complies with EN 13501-1 fire classification grade E.
Novia Reflex is a high-performance, multi-layer membrane made with 4-layer metallised polypropylene and microporous film laminate that features a highly reflective surface on one side, which helps to reflect radiant heat and reduce the overall heat load on your building.
This reflective layer is combined with a highly breathable, waterproof membrane, which allows moisture to escape from the building while preventing water ingress from the outside.
With its advanced moisture management capabilities, Novia Reflex helps to prevent the build-up of dampness and condensation within the building envelope. This can help to improve indoor air quality, reduce the risk of mould and mildew, and protect the structural integrity of your building over the long term.
Key Features:
- Multi-layer membrane with a reflective surface on one side
- Highly breathable and waterproof membrane
- Novia reflex shows advanced moisture management capabilities
- Easy to install in a wide range of applications
- Improves energy efficiency, comfort, and durability of buildings
- Reflective surface reduces the heat load on a building and improves indoor air quality
- Protects structural integrity of buildings over the long term.
- CE approved and CPR compliant
Applications:
Novia reflex is designed for use in:
- Insulated wall systems
- In all pitched cold and warm roof applications
- In conventional cold roof applications
- Suitable for zones 1-5 in the UK for BS 5534 wind uplift with tape
Installation Guidance For Walls:
- Fix Novia Reflex reflective breather membrane to the wall structure.
- Ensure the upper layers overlap the lower layers with the reflective side facing outwards into the cavity.
- Work from the bottom moving upwards. Allow for minimum overlaps of 100 mm on the horizontal joints.
- Vertical laps should be at least 150 mm with no vertical lap joint within 300 mm of a corner.
- Ensure the bottom timber is also protected by an overlap.
Installation Guidance For Roofs:
- On insulated warm roofs, Novia Reflex may be placed directly onto the insulation or boarded roof if required.
- Fix the membrane to the roof using galvanised nails, stainless staples or similar approved fixings while allowing upper and lower layer overlapping as shown within BS 5534:2014. Work from the bottom moving upwards.
- All vertical overlaps must be situated on a rafter and must be sealed. Fix at suitable intervals that will be permanent.
- At any entry points for services (soil pipes, vents etc.), or for pipe penetrations, ensure that Novia Reflex is properly sealed with Novia tape.
- To comply with some BS 5534 wind uplift zone requirements use our single-sided Novia Breather Membrane Lap Tape.
Note: Non-Returnable. Returns and refunds are not applicable to this product
- Dimensions: 1.5m x 50M. Coverage - 75Sqm
- Reflective breather membrane with 4-layer metallised polypropylene and microporous film laminate
- Ideal for roof and insulated wall applications
- Low emissivity membrane that delivers improved μ and R values
- Novia reflex reflective breather membrane is highly waterproof and UV resistant
- Complies with EN 13501-1 fire classification grade E. CE approved
- This product is NON-returnable
| Product Type | Reflective Breather Membrane |
| Brand | Novia |
| Length | 50M |
| Width | 1.5M |
| Roll Coverage | 75 Sqm |
| Material | Polypropylene |
| Weight | 95 g/m2 |
| Resistance To Water Penetration | W1 |
| Low-Temperature Stability | -40°C |
| Reaction To Fire | Class E-d2 |
| Tear Resistance | 75/90N |
| Applications | For use on walls and roofs |
| Declaration of Performance | |
| Order Value (Ex. VAT) | Delivery Charges (Ex. VAT) | ||
|---|---|---|---|
| Up to £125 |
£20 |
||
| £126 - £250 | £30 | ||
| £256 - £595 | £40 | ||
| £596 - £1190 | £50 | ||
| Above £1191 | Free | ||
Returns And Refunds
- You are free to cancel the order anytime before we send you an order confirmation email with the estimated delivery date.
- Once confirmed and delivered, The product is NON-RETURNABLE. The product comes to you straight from the manufacturer. NO Returns accepted
- We urge you to check the insulation for any damage before the driver returns. If the product you received is damaged, please contact us immediately.
- For more information, please refer to our Return Policy
You May Also Like
Customer Reviews
“ With alu foil and breather membrane, i believe this would be a good fit for the walls in my home. Th...”Alice P.
Verified Buyer
Our Customers Include
Seeking to improve the efficiency of your building? The Novia Reflex Reflective Breather Membrane, measuring 1.5m x 50m, is the solution you need. Featuring a 4-layer construction and reflective technology, it excels in insulation and helps to reduce expenses. Enhance energy efficiency effortlessly with this robust product in a range of buildings.
Key Points
- 4-layer construction with metallised polypropylene and microporous film for durability.
- High breathability and strength suitable for commercial and agricultural structures.
- Meets industry standards for roofs and walls, optimising thermal performance.
- Roll size of 1.5m x 50m provides versatility for various applications.
- Enhances energy efficiency with reflective technology, reducing heating and cooling costs.
Key Features and Specifications
Novia Reflex Reflective Breather Membrane features a 4-layer construction that includes metallised polypropylene and microporous film, ensuring exceptional durability and breathability. This means the membrane is robust and long-lasting, capable of enduring diverse weather conditions while still allowing your walls and roofs to ventilate. The durable nature of this membrane ensures it offers dependable insulation protection over time, giving you reassurance that your investment is secure.
In terms of cost efficiency, Novia Reflex Reflective Breather Membrane stands out in the UK market. It provides competitive pricing without compromising on quality. Compared to alternative options, this membrane strikes a good balance between affordability and performance. This cost efficiency comparison makes it a wise choice for individuals seeking a high-quality product without exceeding their budget. With Novia Reflex Reflective Breather Membrane, you can achieve outstanding insulation outcomes without spending excessively.
Installation Guide
For successful installation of the reflective breather membrane, start by making sure it is properly attached to walls with overlaps and using compatible standard roof applications. Important sealing is crucial to preserve the effectiveness of the reflective technology integrated into the Novia Reflex Reflective Breather Membrane.
When fitting at ridges, ensure a 200mm overlap and seal vertical overlaps meticulously to maintain airtightness. In windy areas, it is advisable to use Novia Breather Membrane Lap Tape for secure sealing.
Take note of the orientation of the reflective side, particularly in low-emissivity spaces, to enhance energy efficiency. For optimal results, employ Novia installation tapes such as Novia Breather Membrane Lap Tape and Novia Double-Sided Adhesive Tape for airtight seals.
Advantages of Reflective Technology
Reflective technology in Novia Reflex provides energy-saving properties, enhancing the thermal insulation benefits of your building.
By using this membrane, you can enhance the overall performance of your structure, ensuring efficient energy usage.
Incorporating this technology into your construction projects can result in long-term cost savings and environmental benefits.
Energy-Efficient Properties
Improving thermal efficiency through innovative reflective technology, the Novia Reflex Reflective Breather Membrane offers significant energy-saving benefits for structures.
The low-emissivity metallised synthetic laminate boosts the R and U values, reducing heat loss and contributing to lower heating costs.
This reflective technology not only conserves energy but also guarantees indoor comfort by creating a pleasant environment.
Novia Reflex is a cost-effective solution that enhances insulation performance, making it ideal for energy-saving applications.
With its high breathability and reflective properties, this membrane strikes a balance between energy efficiency and indoor well-being.
Say goodbye to high energy bills and hello to a more comfortable living space with Novia Reflex Reflective Breather Membrane.
Thermal Insulation Benefits
Enhancing thermal insulation efficiency, the Novia Reflex Reflective Breather Membrane demonstrates significant benefits through its innovative reflective technology. By enhancing R values with low emissivity reflective technology, this membrane reduces heat loss, improving energy efficiency and resulting in energy savings.
The reflective properties help maintain thermal comfort by reflecting radiant heat, keeping interiors cooler in warm weather and warmer in cold weather. This not only ensures sustainability but also contributes to cost-effectiveness by reducing heating and cooling expenses.
Novia Reflex optimises thermal performance, creating a comfortable indoor environment while decreasing energy consumption, making it a wise choice for those looking for both efficiency and comfort in their buildings.
Enhanced Building Efficiency
By incorporating innovative reflective technology, the Novia Reflex Reflective Breather Membrane significantly enhances building performance in terms of energy efficiency and thermal insulation. This advanced membrane improves the R and U values of structures, contributing to energy efficiency and sustainability. The reflective properties help to decrease heating costs and create a more sustainable building envelope. Additionally, the low-emissivity metallised synthetic laminate enhances thermal comfort, making indoor spaces more pleasant. Novia Reflex offers outstanding water resistance while maintaining high breathability, ensuring a comfortable indoor environment. With its 4-layer design of metallised polypropylene and micro porous film laminate, this membrane provides excellent strength and durability, further boosting the overall performance of the building.
|
Benefits |
Description |
|
Energy Efficiency |
Enhances R and U values for better energy efficiency and reduced costs |
|
Sustainability |
Helps create a more sustainable building envelope with lower environmental impact |
|
Thermal Comfort |
Improves thermal insulation and indoor comfort levels |
Industry Standards and Compliance
Adhering to EN 13859-1 for sloping roofs and EN 13859-2 for walls, the Novia Reflex reflective breather membrane complies with stringent industry standards and regulations. These compliance requirements ensure that the membrane undergoes thorough testing procedures to guarantee its quality and performance across various applications.
The Class E fire rating of Novia Reflex not only offers fire damage resistance but also inhibits flame spread, thereby improving safety. Moreover, the membrane's conformity to industry standards for water resistance, breathability, and durability in roof and wall installations assures its reliability.
Recognising that installation methods may vary based on local wind zones, it's important to remember that additional tape is required in areas with higher wind uplift. By selecting Novia Reflex, you are investing in a product that is engineered to enhance R and U values in buildings, promoting energy efficiency and increasing comfort levels.
Rely on Novia Reflex to meet industry standards, safeguarding your building's performance and longevity.
Areas of application and suggestions
When considering the Novia Reflex Reflective Breather Membrane for your project, remember some key points:
Usage tips, ideal environments, and installation guidelines are crucial aspects to consider for peak performance.
Understanding where and how to apply the membrane will ensure its effectiveness in maintaining breathability and enhancing the durability of your construction projects.
Usage Tips
For optimal performance and efficiency, it is advisable to use the Novia Reflex Reflective Breather Membrane on sloped roofs and insulated walls. To ensure correct installation, follow these recommendations and best practices:
|
Installation Tips |
Best Practices |
Benefits |
|
Install the membrane on clean, dry surfaces |
Use the appropriate fasteners |
Enhances thermal performance |
|
Ensure seams overlap by at least 150mm |
Create airtight seals |
Increases R values |
|
Avoid piercing the membrane |
Check for tears or damage |
Offers excellent water resistance |
|
Secure edges with suitable tape |
Conduct regular inspections |
Improves energy efficiency |
Ideal Environments
To optimise the performance of the Novia Reflex Reflective Breather Membrane, consider using it in various construction projects that require high breathability and exceptional strength. This membrane is ideal for commercial buildings and agricultural structures where durability and breathability are crucial.
Whether you are working on a new construction project or renovating existing structures, the Novia Reflex membrane's 4-layer metallic polypropylene and microporous film laminate provide the necessary strength and breathability. It meets industry standards for pitched roofs and walls, ensuring quality and compliance.
With a roll size of 1.5m x 50m, this membrane offers versatility and can be effectively used in different environments. Choose Novia Reflex for reliable performance in your construction projects.
Installation Guidelines
Consider using the Novia Reflex Reflective Breather Membrane in both wall and roof applications for optimal performance and longevity. When fitting, ensure there is a 200mm overlap for ridge installations and properly seal vertical overlaps. In areas prone to strong winds, employ Novia Breather Membrane Lap Tape for extra security. Enhance performance by taking into account the orientation of the reflective side for cavities with low emissivity. To aid your understanding of the installation instructions, refer to the table below for a quick overview:
|
Application Techniques |
Sealing Methods |
Reflective Benefits |
|
Attach to structures with overlaps on walls |
Securely seal vertical overlaps |
Maximise performance |
|
Suitable for standard roof applications |
Use Novia Breather Membrane Lap Tape in wind uplift zones |
Enhance energy efficiency |
Maintenance and Care Tips
Regularly inspect the Novia Reflex Reflective Breather Membrane for tears, punctures, or damage to verify peak performance and longevity. Preventive measures such as keeping the membrane clean and free from debris are crucial to maintain its effectiveness.
By confirming proper overlap and sealing of joints, you can uphold the membrane's airtightness and waterproofing capabilities. Remember to avoid exposing the membrane to prolonged direct sunlight as this can lead to UV damage over time.
Following the manufacturer's recommendations for maintenance and care will help you maximise the lifespan of the Novia Reflex Reflective Breather Membrane. When it comes to cleaning techniques, using gentle soap and water to remove dirt and grime is recommended.
Frequently Asked Questions
What thickness should a breather membrane be?
For your breathable membrane, thickness is important. Ensure it is adequate for breathability and protection. Follow installation tips closely for optimal performance. The correct thickness ensures durability and strength in roofing and wall applications.
What is a breather membrane used for?
Breather membranes are essential for moisture control and waterproofing, improving insulation properties while allowing necessary air circulation. They protect structures from wind-driven rain and dust, ensuring durability and protection. Installing them with lap tapes is vital for peak performance.
How long can a breather membrane be exposed?
You can leave a breathable membrane exposed for up to 3 months during construction. Ensure breathability and moisture control by covering it with cladding or roofing promptly. Going beyond the recommended exposure time may affect its durability and effectiveness, compromising its performance.
What is the R value of breather membrane?
To understand the R value of a breather membrane, consider its insulation performance. It helps to keep indoor spaces warm and reduce heating costs. The R value is crucial in improving the thermal efficiency of buildings, which ensures comfort and saves energy.
Summary
To summarise, Novia Reflex is a top choice for reflective breather membranes due to its high performance and easy installation. Its reflective technology provides significant advantages in terms of energy efficiency and moisture control. Meeting industry standards and regulations, it is suitable for a range of applications.
By adhering to the recommended maintenance advice, Novia Reflex can offer durable protection for your building. Consider using this membrane for your next project to witness its quality and effectiveness for yourself.
