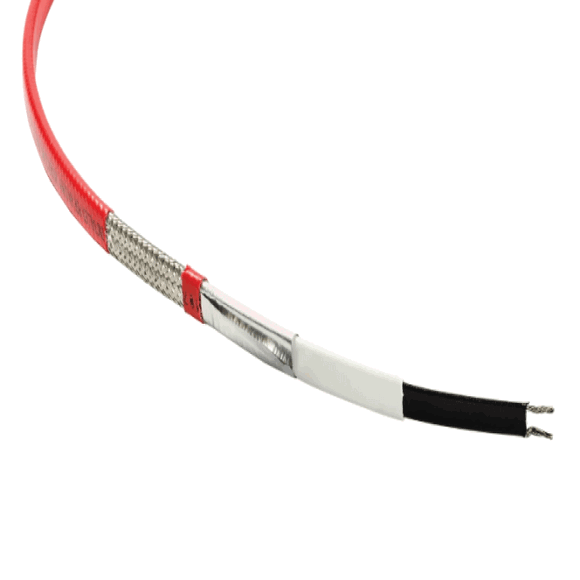

NVent Raychem Self-Regulating Trace Heating Cable For Hot Water Maintenance

(0 Reviews)
(incl VAT) £14.32 £13.01
-10%
(excl VAT) £10.84
Send Me a Quote
Get FREE Delivery with orders over £125.00 (Exc Vat) on this item
Every Order Plants 1 Tree and Protects 10 Existing Ones
Est. Delivery: 2-3 Working Days
Calculate Estimate Shipping Charges

Request a Quote

Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.

Product Details:

Type HWAT-M HWAT-R

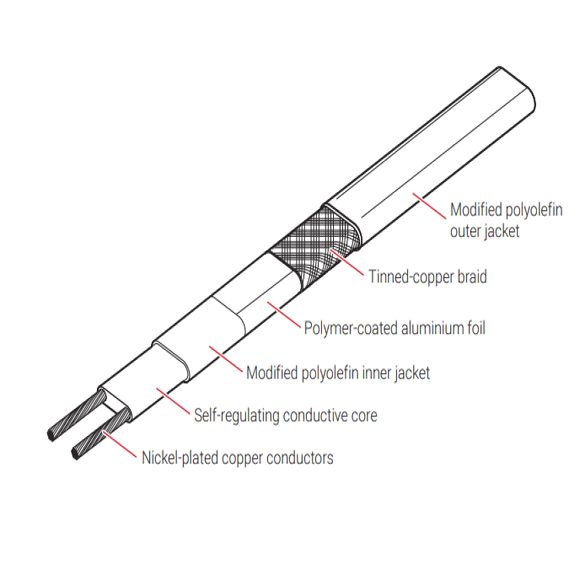

Outer Inner Jacket Construction  Modified polyolefin  Modified polyolefin
Outer jacket Colour  Orange  Red
Braid  Tinned Copper  Tinned Copper
Conductors  1.3 mm2 (16 AWG) nickel-plated copper  1.3 mm2 (16 AWG) nickel-plated copper
Nominal Voltage  230 VAC  230 VAC
Nominal power output  9 W/m  12W/m



nVent RAYCHEM HWAT-M and HWAT-R self-regulating heating cables for hot water mainatainance offer a robust solution for maintaining process temperatures. Engineered with cutting-edge technology, these self-regulating trace heating cables adapt their power output to ambient conditions, ensuring optimal temperature control without the risk of overheating.

Ideally used to maintain the desired water temperature in a building’s hot water
distribution pipe network, the HWAT series has a modified polyolefin inner/out jacket and a tinned copper braid. The temperature if futher controlled using trace heating thermostas.

This self regulating trace heating cable is placed on the pipe underneath the insulation, the cables
automatically compensate for pipe heat losses where they occur, thereby providing continuous, energy efficient, hot water temperature maintenance.

Furthermore, the HWAT system can be used to eliminate the recirculation system altogether or to help optimise its performance, in a hybrid approach. In a hybrid system, recirculation loops are used on the long central pipe runs, with HWAT cables installed on all branch run outs.
Either way, a much improved solution when compared to recirculation systems.

With an impressive power output and a maximum temperature exposure, the HWAT-M and HWAT-R heating cables are built for performance. nVent RAYCHEM backs this durability with a 10-year product warranty, guaranteeing long-term reliability in even the harshest environments.

Key Features:

  • nVent Raychem trace heating cables improve delivery of instant hot water at the tap, compared to recirculation systems
  • These are ISO-9001 registered. Tested and approved to IEC 62395 and IEEE 515.1
  • Energy efficient with aluminium foil layer to protect the self-regulating core from chemical ingress
  • Simple to design and flexible, quick and easy to install. Requires less maintenance, improved hygiene
  • Prevents of bacterial proliferation, as water is maintained at a specific temperature level

  • We supply 2 types of Trace Heating Cable For Hot Water Maintenance
  • HWAT-M - has a power out put of 9W/m and 230 VAC voltage. It is ideally used for apartments and offices
  • HWAT-R - has a power output of 12W/m  and 230 VAC voltage. It is ideally used for hotels, hospitals, convalescent homes
  • Both tyoes of heat tracking cables have a Modified polyolefin inner/out jacket and a Tinned copper braid.
Product Type  Trace Heating Cables For Hot water maintainance
Product Code   HWAT-M/  HWAT-R
Length  1m, 5m, 10m, 20m, 25m, 50m,100m
Max. continuous exposure
Temperature
 65°C
Application  For hot water maintenance
