Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Please note: We stock Scapa PIB in some warehouses. In cases where Plysolene is unavailable, Scapa brand weatherprrof PIB will be provided
Product Specifications:
|
Length |
Width |
Thickness |
Finish |
|
25m |
1m |
0.5mm |
Chalked |
|
15m |
1m |
0.8mm |
Chalked |
|
15m |
1m |
0.8mm |
Paper Interleaved |

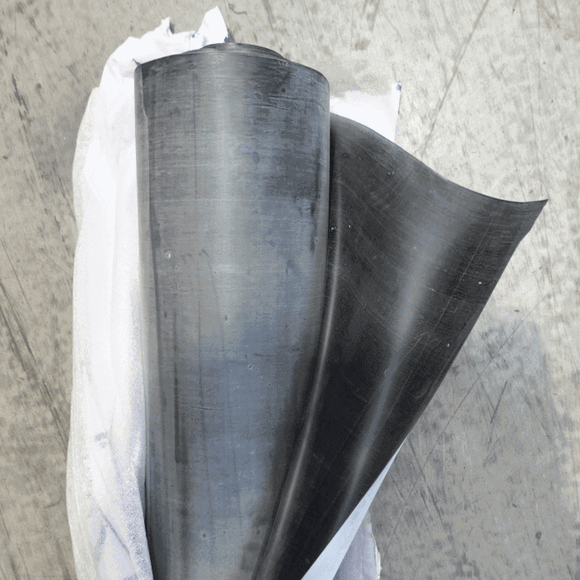

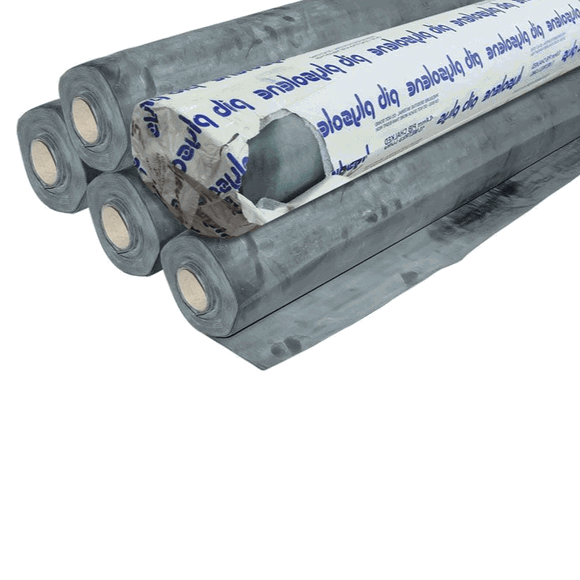

Polyisobutylene insulation covering (PIB) is the ideal waterproofing membrane for ventilation ducting and pipe insulation cladding. It gives your exposed insulation and ductwork that final protective coating. This tough, water-resistant PIB thermal insulation cladding sheet has high abrasion resistance and can withstand mechanical damage. It is produced from high molecular weight polyisobutylene, which is modified to achieve optimum properties.
It is resistant to UV and ozone and is a long-lasting and durable product. It shows exceptional physical properties even at temperatures as low as -30°C. PIB insulation exhibits excellent chemical resistance. It is made to last and effectively protects the pipe and duct insulation from damage due to extreme conditions. It is waterproof, so it does not support the growth of moulds and other microbes.
Key Features:
- Easy to cut and install
- HIghly flexibly and able to stretch
- Can be easily applied to uneven joints and difficult shapes
- PIB insulation is long-lasting and durable
- Highly resistant to chemicals
- No specialist adhesive needed
- UV and Ozone resistant
- PIB insulation is waterproof. Rot and mould resistant.
- Virtually non-ageing
- Does not harden, crack, peel with age
- PIB insulation is flexible and can be used to cover odd, irregular surfaces.
Application:
- PIB insulation is a weatherproofing material for insulated ductwork and pipework.
- Cladding insulation is also used in chemical works, oil refineries and power stations.
Installation:
- PIB insulation sheet should not be used to hold the pipe insulation in place. The pipe insulation needs to be secured in place first before applying the PIB insulation covering.
- PIB sheeting can be easily applied to insulate the pipeline. Cut the PIB insulation to size and wrap it around the insulated pipework.
- Used PIB welding agent, a strongly formulated adhesive to provide a neat finish to the PIB insulation covering.
This product is ideal for outdoor pipe insulation cladding and exterior pipe cladding, making it an excellent choice for outside duct insulation. Plysolene PIB insulation, with its PIB protective cladding for pipes, is highly effective in protecting against harsh environmental conditions. Whether for outdoor pipe wrap, cladding external pipe insulation, or PIB sheets, this solution is versatile and durable, with the added benefit of chalked PIB cladding from Plysolene.
- PIB insulation cladding membrane for pipe and duct insulation
- Polyisobutylene is highly flexible and will even stretch a little to mould over awkward shapes
- Advised to be used with spray glue and welding agent for best results

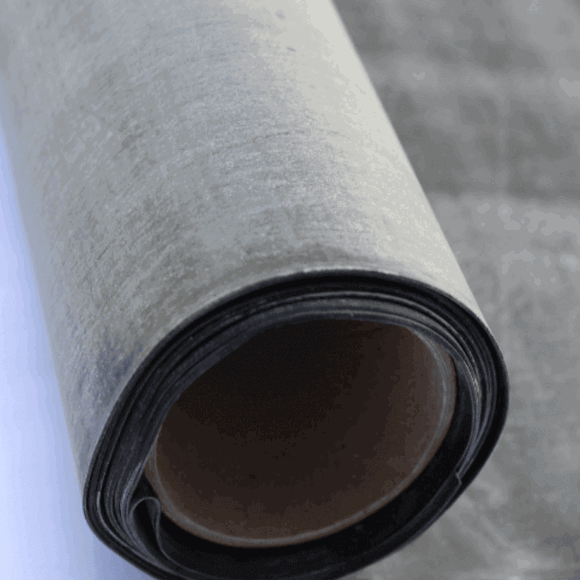

- Available as chalked and paper interleaved variants to prevent roll sticking together
- Service temperature: -34°C to 72°C
- Fully waterproof. Frostproof
- Polyisobutylene insulation cladding protects pipe and ductwork from UV rays and other outdoor conditions.
| Insulation Type | PIB Insulation |
| Material | Polyisobutylene |
| Brand | Plysolene |
| Length | 15m or 25m |
| Thickness | 0.5mm or 0.8mm |
| Width | 1m |
| Finish | Chalked or Interleaved |
| Service Temperature | -34°C to 72°C |
| Density | 1.6g/cm3 |
| Tensile Strength | 2.5Nmm2 |
| Colour | Black |
| Specific Gravity | 1.6 |
| Elongation | 300% |
| Application | To clad external insulated pipe and ductwork |
| Free Collections Available |
|---|
| Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245 |
| Free pick-up locations include - Glasgow, Birmingham, Chorley, Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds |
| Delivery Terms | |
|---|---|
| Order Value (Excluding VAT) | Delivery Condition |
| No minimum order |
Free Delivery within 25 Miles of Erdington, Birmingham |
| Orders above £125 | Free Delivery within 25 miles of our warehouses in Glasgow, Birmingham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds. |
| Orders above £370 | Free Delivery across mainland GB |
| Delivery Charges | Carriage costs start from £19.50, Ex.VAT for postcodes that do not fall under the free delivery criteria |
Returns/Refunds And Cancellations:
You can cancel your order and get a full refund anytime before we confirm your order via email.
Orders cancelled after the order confirmation is sent, may attract a restocking fee.
If you want to return insulation that was ordered in excess or not of use anymore, you can return them within 3 weeks from the date of receipt, provided they are unused and in a resalable condition. Please contact us via email and we will assist you accordingly.
If the product is damaged, then you are within your rights to claim an exchange or a refund. For more information, please refer to our delivery information page.
For more information on returns and deliveries, please refer to our delivery information page.
You May Also Like
Customer Reviews
“ Fast delivery and good prices. thank you ”Lucas S.
Verified Buyer
“ Its a good brand and the products are of top quality. we have been using these products on many jobs”Max Y.
Verified Buyer
“ Though the insulation was a little damaged upon arrival, they were quick to exchange it. thank you v...”Brian B.
Verified Buyer
“ As a contractor, I've used this many times before. its a good one and easy to use as well. ”Oscar R.
Verified Buyer
“ Pib was very easy to install. This was my first time using it for a job. waiting to see its long ter...”Harry W.
Verified Buyer
“ Thank you for arranging a quick collection. It helped me complete the job on time. ”Jason D.
Verified Buyer
“ Delivered on time, cheaper too”Jeff J.
Verified Buyer
“ I was looking for something to cover the insulated ductwork located outside. They suggested the righ...”John R.
Verified Buyer
Our Customers Include
Looking for Plysolene Polyisobutylene Insulation with PIB Cladding? It offers excellent durability and UV resistance, with thickness options from 0.5mm to 1.2mm. The insulation excels in diverse environments, featuring a specific gravity of 1.6 and low vapour permeability. With outstanding chemical resistance and temperature flexibility from -34°C to +72°C, it guarantees longevity and performance. Tips for application include using endlaps of 80mm, solvent welding overlaps, and regular maintenance. Efficient delivery and quality performance garner positive reviews. Customers appreciate the prompt customer service and convenient purchasing process. Explore the details further to discover the benefits this advanced insulation provides.
Key Points
- PIB Cladding by Plysolene offers long-lasting and UV-resistant insulation.
- Available in different thicknesses and black colour options with liner choices.
- High chemical resistance except to certain substances like chlorine.
- Easy application with detailed instructions for best performance.
- Fast delivery service guarantees convenient access to high-quality insulation products.
PIB Cladding Features
Highlighting the exceptional characteristics of PIB Cladding, its composition guarantees durability and longevity in diverse environments. When it comes to PIB cladding installation, you can rest assured that this insulation is designed to stand the test of time.
The Plysolene Polyisobutylene Insulation (PIB) Cladding offers a range of benefits that make it a reliable choice for your insulated pipelines. Its ozone and UV resistance ensure that it can withstand various environmental conditions without compromising its performance.
The black colour options, along with the choice of interleaved non-woven polypropylene release-coated liner or chalked finishes, provide flexibility to suit different insulation needs. With thickness options ranging from 0.5mm to 1.2mm, you can find the perfect fit for your specific requirements.
For top-notch performance, following the specific application advice for PIB cladding is recommended. Essentially, PIB Cladding not only offers excellent durability but also brings peace of mind knowing that your insulation needs are well taken care of.
Technical Data for PIB Insulation
When considering Plysolene PIB insulation, it's crucial to review the technical data to comprehend its performance capabilities. Here are some key technical details to help you grasp the benefits of PIB insulation and its installation techniques:
- PIB Insulation Benefits:
- Plysolene PIB insulation is ozone and UV resistant, making it durable for outdoor applications.
- With a specific gravity of 1.6, PIB insulation offers a good balance of weight and strength.
- The low vapour permeability of 5g/0.001in/m2/day guarantees effective moisture resistance, protecting the insulated surfaces.
- PIB Insulation Installation Techniques:
- PIB insulation, available in black colour and various thicknesses, can be easily applied using adhesive backing or mechanical fastening methods.
- The elongation capability of 300% allows for flexibility during installation around corners and irregular shapes.
- A temperature range of -34°C to +72°C provides versatility in installation, catering to different environmental conditions.
Understanding these technical aspects will help you make informed decisions when utilising Plysolene PIB insulation for your cladding needs.
Overview of Product Range
Let's explore the diverse range of Plysolene Polyisobutylene Insulation (PIB) products available for various applications. Plysolene PIB insulation is offered in thicknesses ranging from 0.5mm to 1.2mm, providing flexibility to suit different project needs. The black-coloured PIB cladding can be interleaved with a non-woven polypropylene release-coated liner or chalk, enhancing its durability and application ease. Supplied in 20-metre rolls, this PIB cladding guarantees convenience during installation.
When it comes to installation techniques, Plysolene PIB cladding is recommended for insulated pipelines, offering specific guidelines for endlaps, sidelaps, and solvent welding to secure a long-lasting application. Additionally, Plysolene PIB insulation boasts excellent chemical resistance, making it generally unaffected by various chemicals encountered in different environments, except for specific substances like Chlorine and Bromine.
In addition to its practical applications, Plysolene PIB insulation also provides environmental benefits by being a sustainable choice for insulation needs. Its durability and chemical resistance contribute to reducing maintenance requirements and promoting longevity in various settings.
Chemical Resistance of PIB Cladding
PIB cladding demonstrates impressive chemical resistance. It withstands well against various acids and solvents, making it a dependable option for combating corrosion in challenging environments.
PIB cladding is a favoured option for industries that need robust and enduring solutions for safeguarding structures from chemical damage.
GDP Cladding and Acids
Polyisobutylene cladding demonstrates exceptional resistance to a wide range of chemicals, making it a reliable choice for protection against corrosive substances.
When it comes to acids, Plysolene PIB exhibits semi-resistance to concentrated nitric acid and nitration acid. However, it's important to note that it isn't resistant to chlorine, bromine, and certain solvents like ether, butyl acetate, petrol, and diesel.
Additionally, Plysolene PIB may experience chemical swelling when exposed to specific substances such as animal and vegetable fats and oils. It's advisable to refer to detailed lists of chemicals Plysolene PIB is resistant to and not resistant to for a comprehensive understanding of its capabilities.
PIB Cladding and Solvents
When considering the chemical resistance of Plysolene PIB cladding, its performance in various solvents plays a significant role in determining its suitability for different applications. The table below outlines the solvent compatibility and material swelling characteristics of PIB cladding:
|
Solvent |
Material Swelling |
|
Concentrated Nitric Acid |
Semi-resistant |
|
Nitration Acid |
Semi-resistant |
|
Chlorine |
Not resistant |
|
Bromine |
Not resistant |
|
Ether |
Swells |
|
Butyl Acetate |
Swells |
Understanding these solvent interactions is essential for ensuring the effective use of Plysolene PIB cladding in different environments. For more detailed chemical resistance information, users can refer to available resources to make informed decisions.
PIB Cladding and Corrosion
Considering the chemical resistance of Plysolene PIB cladding, its ability to withstand various corrosive substances is a critical factor in determining its suitability for diverse applications. When it comes to corrosion prevention, Plysolene PIB cladding offers a reliable shield against many chemicals, but material compatibility is key for long-term durability.
Here are three essential points to consider:
- Plysolene PIB cladding shows semi-resistance to Concentrated Nitric Acid and Nitration Acid, making it suitable for specific industrial uses.
- Unfortunately, Plysolene PIB cladding isn't resistant to Chlorine and Bromine, which can compromise its integrity.
- Swelling may occur in Plysolene PIB cladding when exposed to Ether, Butyl Acetate, Petrol, Diesel, and certain fats and oils.
Tips for Applying PIB Insulation
Seeking to achieve peak performance with your PIB insulation? When it comes to application, following proper installation techniques is key. Make sure to use endlaps of 80mm and 50mm sidelaps for the best results. To guarantee a secure bond, solvent welding overlaps with Plysolene Welding Agent E is recommended. Remember, PIB is a thermoplastic elastomer that becomes softer as temperatures rise, increasing its flexibility and effectiveness in various applications.
In terms of maintenance recommendations, regularly check for any signs of wear, tear, or damage to the insulation. Promptly addressing any issues that arise can help preserve the integrity of the insulation over time. Additionally, it's essential to secure the insulation properly to prevent air leakage and ensure its longevity. By following these application tips and maintenance suggestions, you can optimize the performance of your PIB insulation and enjoy its excellent protection for your insulated pipelines.
Customer Reviews and Testimonials
Customers frequently praise PIB insulation for its reliability and cost-effectiveness. Many users express high levels of customer satisfaction due to the insulation's quality and competitive pricing. Positive feedback often emphasises the straightforward installation process, making it easy for individuals to apply the insulation themselves.
Here are three key points from customer reviews:
- Efficient Delivery: Customers commend the quick delivery service provided when purchasing PIB insulation, enabling speedy access to the product when required.
- Quality Performance: Users value the insulation's effectiveness in maintaining temperature control and reducing energy costs, contributing to their overall satisfaction with the product.
- Prompt Customer Service: Some customers highlight the swift response and assistance received when replacing damaged items, improving their overall experience with the company.
Where can I buy PIB insulation?
To get PIB insulation for your insulation needs, visit Buy Insulation Online where you can make your purchase. This respected online retailer provides a convenient way to obtain high-quality PIB insulation without having to leave the comfort of your own home. The availability of PIB insulation online ensures that you can easily explore the different types and sizes to find the perfect match for your specific requirements.
When you buy from Buy Insulation Online, you can take advantage of personalised orders and special discounts for bulk purchases that are tailored to your needs. The installation process is made easier with the wide range of options available, allowing you to choose the correct type of PIB insulation for your project. Furthermore, payment methods such as Clearpay and Klarna enhance the convenience of purchasing PIB insulation online.
With Buy Insulation Online, you can rely on your PIB insulation being delivered to your door promptly. Free delivery options for certain orders further enhance the appeal of buying from this online shop.
Frequently Asked Questions
What is PIB insulation?
PIB insulation, which provides outstanding thermal performance and energy efficiency, ensures resistance to moisture and durability. Its flexibility and UV resistance make it perfect for outdoor applications. You will enjoy lasting protection and effective insulation.
How to Install Pib?
To correctly install PIB insulation, cut it to size, wrap it around pipes, overlap for full coverage, join ends with a welding agent, apply with a brush, and follow the guidelines. Ensure it is secured properly to prevent air leakage. By following these installation tips, you will achieve the best results.
What Are the Benefits of Polyisobutylene?
Polyisobutylene (PIB) offers outstanding advantages. It promotes energy efficiency and durability, resulting in cost savings and a positive environmental impact. Embrace the flexibility and resilience of PIB in a variety of applications, demonstrating its versatile usefulness and suitability in various sectors.
Summary
To summarise, PIB cladding offers excellent insulation properties and chemical resistance, making it a reliable choice for various applications.
With a range of products available and positive customer feedback, PIB insulation is a popular choice for many.
If you're thinking about buying PIB insulation, seek out trusted suppliers to ensure quality and performance.
Make informed decisions based on technical data and application advice to get the most out of your PIB cladding investment.
