Plysolene Polyisobutylene Insulation - PIB Cladding
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Please note: We stock Scapa PIB in some warehouses. In cases where Plysolene is unavailable, Scapa brand weatherproof PIB will be provided
Product Specifications:
|
Length |
Width |
Thickness |
Finish |
|
25m |
1m |
0.5mm |
Chalked |
|
15m |
1m |
0.8mm |
Chalked |
|
15m |
1m |
0.8mm |
Paper Interleaved |
Polyisobutylene insulation covering (PIB) is the ideal waterproofing membrane for ventilation ducting and pipe insulation cladding. It gives your exposed insulation and ductwork that final protective coating. This tough, water-resistant PIB thermal insulation cladding sheet has high abrasion resistance and can withstand mechanical damage. It is produced from high molecular weight polyisobutylene, which is modified to achieve optimum properties.
It is resistant to UV and ozone and is a long-lasting and durable product. It shows exceptional physical properties even at temperatures as low as -30°C. PIB insulation exhibits excellent chemical resistance. It is made to last and effectively protects the pipe and duct insulation from damage due to extreme conditions. It is waterproof, so it does not support the growth of moulds and other microbes.
Key Features:
- Easy to cut and install
- HIghly flexibly and able to stretch
- Can be easily applied to uneven joints and difficult shapes
- PIB insulation is long-lasting and durable
- Highly resistant to chemicals
- No specialist adhesive needed
- UV and Ozone resistant
- PIB insulation is waterproof. Rot and mould resistant.
- Virtually non-ageing
- Does not harden, crack, peel with age
- PIB insulation is flexible and can be used to cover odd, irregular surfaces.
Application:
- PIB insulation is a weatherproofing material for insulated ductwork and pipework.
- Cladding insulation is also used in chemical works, oil refineries and power stations.
Installation:
- PIB insulation sheet should not be used to hold the pipe insulation in place. The pipe insulation needs to be secured in place first before applying the PIB insulation covering.
- PIB sheeting can be easily applied to insulate the pipeline. Cut the PIB insulation to size and wrap it around the insulated pipework.
- Used PIB welding agent, a strongly formulated adhesive to provide a neat finish to the PIB insulation covering.
This product is ideal for outdoor pipe insulation cladding and exterior pipe cladding, making it an excellent choice for outside duct insulation. Plysolene PIB insulation, with its PIB protective cladding for pipes, is highly effective in protecting against harsh environmental conditions. Whether for outdoor pipe wrap, cladding external pipe insulation, or PIB sheets, this solution is versatile and durable, with the added benefit of chalked PIB cladding from Plysolene.
- PIB insulation cladding membrane for pipe and duct insulation
- Polyisobutylene is highly flexible and will even stretch a little to mould over awkward shapes
- Advised to be used with spray glue and welding agent for best results

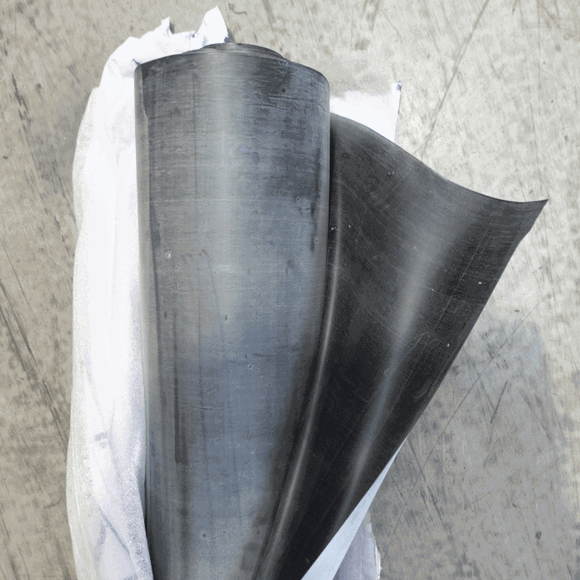

- Available as chalked and paper interleaved variants to prevent roll sticking together
- Service temperature: -34°C to 72°C
- Fully waterproof. Frostproof
- Polyisobutylene insulation cladding protects pipe and ductwork from UV rays and other outdoor conditions.
| Insulation Type | PIB Insulation |
| Material | Polyisobutylene |
| Brand | Plysolene |
| Length | 15m or 25m |
| Thickness | 0.5mm or 0.8mm |
| Width | 1m |
| Finish | Chalked or Interleaved |
| Service Temperature | -34°C to 72°C |
| Density | 1.6g/cm3 |
| Tensile Strength | 2.5Nmm2 |
| Colour | Black |
| Specific Gravity | 1.6 |
| Elongation | 300% |
| Application | To clad external insulated pipe and ductwork |
