Pre Insulated Pipes - Class O Rated Air-Conditioning And Refrigeration Pre Lagged Copper - 20M Long
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Lawson Tubes bring you a top-of-the-line pre-insulated pipe for air conditioning and refrigeration systems - Class O Copper Tubes. These pre insulated copper pipes are designed to provide superior performance and durability for your air conditioning and refrigeration requirements. Their unique combination of copper tubing and nitrile rubber insulation ensures maximum energy efficiency and minimal heat loss.

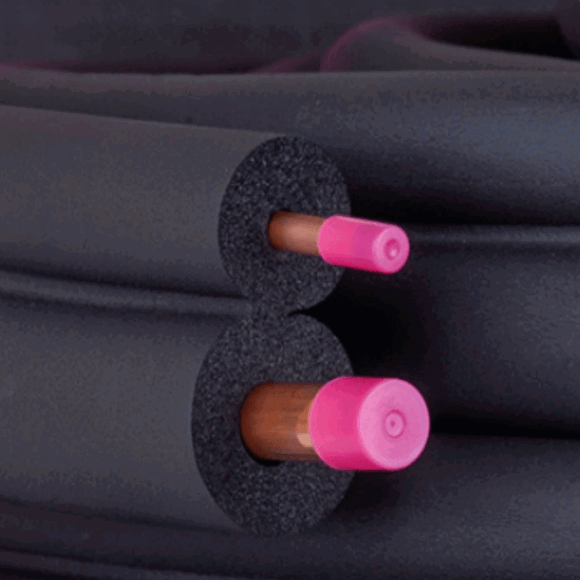

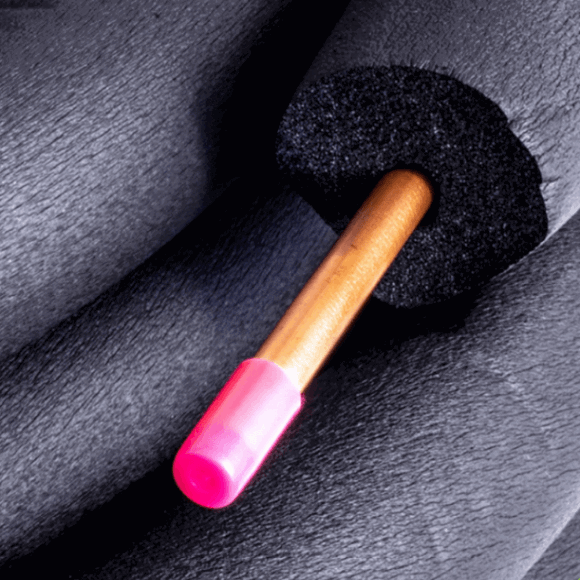

These copper coils are pre-lagged with NBR or Nitrile Butadiene Rubber, which is known for its thermal performance and fire ratings. The pre-lagged twin copper pipes are class O rated and comply with UK Building and Fire Safety Regulations.
Furthermore, these pre insulated pipework allow for an easy and mess-free installation. In fact, with these pre lagged copper coils, you will be able to complete installation in half time compared to traditional installation techniques, that too without the added mess of using glue, tape or adhesive.
These pre-insulated pipes are easy to install and require minimal maintenance, making them the perfect choice for both residential and commercial applications. They are available in a range of sizes and lengths, so you can find the perfect fit for your needs.

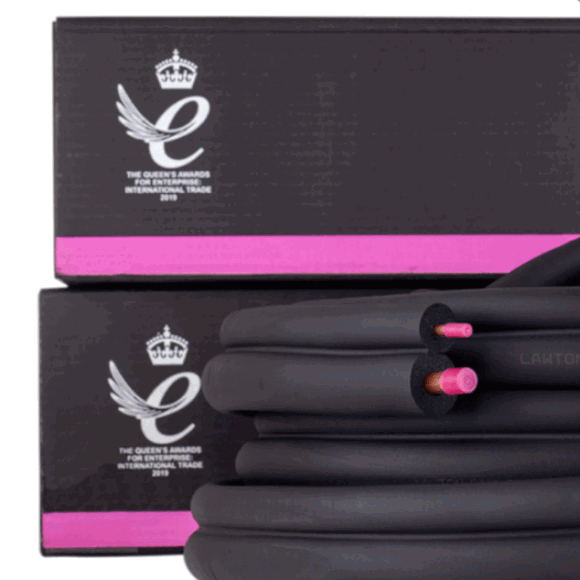

The range of twin Class O pre insulated copper coils is the ideal solution for your refrigeration and air conditioning needs. With their superior performance and long-lasting durability, you can trust these pre-insulated pipes to provide reliable and efficient performance for years to come.
Key Features:
- High-quality copper tube that is corrosion-resistant
- Pre-insulated with closed-cell rubber foam for excellent thermal insulation
- Maximum energy efficiency and minimal heat loss
- Easy to install and require minimal maintenance
- Class O rated and complies with UK Building and Fire Safety Regulations
- Superior performance and long-lasting durability
Applications:
These pre insulated copper coils are ideally made for refrigeration and air-conditioning purposes.
- Pre Insulated Pipes - Class O Rated Air-Conditioning And Refrigeration Copper Tubes
- 20M Long pre-insulated copper pipes. 9mm and 13mm thick nitrile rubber insulation.
- Pre-insulated copper coils, ideal for Air-Conditioning And Refrigeration applications.
- Insulated pipes comply with UK Building and Fire Safety Regulations
- For mess-free, quick and easy installation
| Product Type | Pre-insulated pipes |
| Brand | Lawton |
| Length | 20M |
| Insulation Thickness |
9mm, 13mm |
| Thermal Conductivity | 0.036 W/mK |
| Density | 40kg/m3 to 70kg/m3 |
| Fire Ratings | Class O Tested to BS476 Part 6 |
| Working Temperature Range | -50degC to +105degC |
| Applications | Air conditioning and Refrigeration application |
| Delivery Terms | ||
|---|---|---|
| Area | Order value | Delivery Charge (Ex VAT) |
| On select Postcodes (Around London, Manchester, Leeds, Bristol, York etc) | Orders Below £110 | £10 |
| On select Postcodes (Around London, Manchester, Leeds, Bristol etc) | Orders Above £110 | Free Delivery |
| On select Postcodes (Scotland, Swansea, Cornwall etc) | Any value | £25 |
Returns/Refunds And Cancellations:
You can cancel your order and get a full refund anytime before we confirm your order via email.
Orders cancelled after the order confirmation is sent, may attract a restocking fee.
If you want to return insulation that was ordered in excess or not of use anymore, you can return them within 14 days from the date of receipt, provided they are unused and in a resalable condition. Please contact us via email and we will assist you accordingly.
If the product is damaged, then you are within your rights to claim an exchange or a refund.
For more information on returns and deliveries, please refer to our delivery information page.
You May Also Like
Customer Reviews
“ Great pices. product arrived next day! Awesome”Lewi E.
Verified Buyer
Our Customers Include
Achieve high-quality efficiency with Class O rated Pre Insulated Pipes for air-conditioning and refrigeration. These 20m long pre-lagged copper pipes come with 9mm and 13mm thick nitrile rubber insulation, meeting UK regulations. Designed for easy installation, they guarantee heat loss prevention and peak thermal efficiency. With options for different pair coil thickness and diameters, they cater to specific needs. Suitable for residential and commercial settings, these pipes reduce energy costs and offer durable performance. Explore more about their versatile applications, energy-saving features, and efficient installation process to make informed decisions about your HVAC system.
Key Takeaways
- Grade O rated nitrile rubber insulation for optimal thermal efficiency in air-conditioning and refrigeration systems.
- Available in 20m lengths with 9mm and 13mm thickness options for versatile installations.
- Compliant with UK regulations, ensuring safety and performance standards are met.
- Designed for energy efficiency, reducing overall energy consumption in residential and commercial settings.
- Durable construction and reliable performance for long-term use in HVAC projects.
Product Overview
Introducing a game-changing solution for air-conditioning and refrigeration needs: the 20M long pre-insulated copper pipes. These pipes feature 9mm and 13mm thick nitrile rubber insulation, ensuring excellent thermal efficiency for your systems. Whether it's for your home or business, these pipes are designed to meet UK Building and Fire Safety Regulations, giving you peace of mind while keeping your spaces cool.
When it comes to installation benefits, these pre-insulated copper pipes are a dream come true. They enable quick and mess-free installation, making them ideal for HVAC contractors, construction companies, and maintenance service providers alike. Say goodbye to long hours of cumbersome installations and hello to a hassle-free experience with these pipes. Their versatility and ease of use make them a must-have for anyone looking to upgrade their air-conditioning or refrigeration setup without the headache of complicated installations.
Insulation Class and Material
The insulation class of pre-insulated pipes is essential for meeting UK regulations, ensuring safety standards are met. Understanding the suitable insulation materials, like nitrile rubber, is key for effective heat loss prevention.
These materials play a vital role in maintaining proper thermal conductivity in air-conditioning and refrigeration systems.
Insulation Class Importance
Ensuring the proper insulation grade and material for pre-insulated pipes is essential for maintaining safety and energy efficiency in air-conditioning and refrigeration systems. The insulation grade plays a pivotal role in preventing heat transfer, energy loss, and condensation problems. Opting for Grade O rated insulation, such as Nitrile Butadiene Rubber (NBR), improves protection and performance in your system. Grade O insulation is designed to meet strict UK standards, guaranteeing reliability and safety. By selecting the right insulation grade, you not only comply with regulations but also boost the overall efficiency of your air-conditioning and refrigeration setup. Check the table below to understand the significance of insulation grade in your system:
|
Importance |
Efficiency |
Safety |
|
High |
Improved |
Guaranteed |
Suitable Insulation Materials
For best performance in your air-conditioning and refrigeration systems, selecting the right insulation materials is crucial. The Nitrile Butadiene Rubber (NBR) used in these pre-insulated pipes is Class O rated for fire safety compliance.
This material not only offers excellent insulation effectiveness but also provides thermal conductivity and moisture resistance. With options available in 9mm and 13mm thickness, the NBR insulation guarantees peak thermal efficiency and prevents condensation in pipes, maintaining the integrity of your systems.
Length and Diameter Specifications
When selecting pre-insulated pipes, take into account the different pipe length options available for your installation needs.
The diameter size varieties provided can affect the efficiency and performance of your air-conditioning or refrigeration systems.
Make sure you have the necessary installation space requirements to accommodate the chosen pipe specifications.
Pipe Length Options
With pre-insulated copper pipes available in 20m lengths and diameters of 9mm and 13mm, you have convenient options for your air-conditioning and refrigeration needs. These customizable lengths provide flexibility in installation, ensuring an ideal fit for your specific requirements.
The longevity of these pipes guarantees a reliable solution for your systems, reducing the need for frequent replacements and maintenance. Additionally, the cost-effectiveness of these pre-insulated pipes offers a practical solution without compromising on quality.
Whether you're looking for a straightforward installation process or seeking a durable and efficient solution, these pipes cater to your needs effectively. Embrace the convenience of installation and the durability of these pipes to improve the performance of your air-conditioning and refrigeration systems.
Diameter Size Varieties
Explore the diverse range of diameter size options available in pre-insulated copper pipes for air-conditioning and refrigeration systems, featuring 1/4' and 3/8' choices within 20m coils. When considering size selection, these pipes offer versatility to suit various installation needs.
The 1/4' and 3/8' diameter sizes cater to different requirements, whether for residential or commercial use. Compatibility considerations are essential when choosing the right diameter size for your specific air-conditioning or refrigeration system.
The 20m length provides flexibility in installation, allowing for efficient setup in different spaces. By carefully assessing the diameter size options available and ensuring compatibility with your system, you can optimize the performance of these Class O rated pipes for your HVAC needs.
Installation Space Requirements
Consider the installation space requirements for the pre-insulated copper pipes, which are 20 meters long and have a diameter of 13mm, guaranteeing compatibility with standard fittings and connections. When planning the setup, keep in mind the following:
- Space saving solutions: The slim 13mm diameter of the pipes allows for efficient use of space, perfect for installations where room is limited.
- Cost-effective installations: With customizable lengths available, you can minimize waste and reduce costs by obtaining the exact length required for your project.
- Easy maintenance: The design of the pipes simplifies upkeep, making it hassle-free to ensure your air-conditioning and refrigeration systems run smoothly.
These specifications offer flexibility and convenience, catering to diverse installation needs while prioritizing practicality and efficiency.
Pair Coil Thickness Options
You can choose from versatile pair coil thickness options of 1/4' and 3/8' to meet your installation needs effectively. The 13mm insulation thickness improves efficiency, guaranteeing peak performance for your air-conditioning and refrigeration systems.
These coil thickness options offer installation flexibility, allowing you to select the most suitable size for your specific requirements. Whether you need a thinner 1/4' pair coil for certain space constraints or a thicker 3/8' pair coil for improved durability, you have the freedom to decide based on your installation setup.
The different thickness options also give you the opportunity to customize your system according to the insulation levels needed for efficient operation. By offering a choice between these two coil thicknesses, the pre-insulated pipes ensure that you can tailor your installation for maximum effectiveness and performance in both residential and commercial settings.
Supplier Information
Moving forward, the supplier information for the pre-insulated pipes discussed includes details about Greenmill Supply Company, a reputable supplier based in Colchester, UK. They offer the Pre Lagged Copper Pair Coil with a length of 20m, featuring a 13mm insulation thickness for improved performance. The Pair Coil is available in 1/4' & 3/8' diameter options, catering to various installation needs. Greenmill Supply Company guarantees quality by copyrighting their products with all rights reserved for the year 2024.
Here are some key supplier details and product specifications to consider:
- Supplier Details: Greenmill Supply Company, a trusted supplier located in Colchester, UK, provides high-quality pre-insulated pipes for air-conditioning and refrigeration needs.
- Product Specifications: The Pre Lagged Copper Pair Coil offered by Greenmill Supply Company comes in a 20m length with a 13mm insulation thickness, available in 1/4' & 3/8' diameter options to suit different requirements.
- Quality Assurance: By copyrighting their products with all rights reserved for the year 2024, Greenmill Supply Company demonstrates a commitment to quality and innovation in the industry.
Versatile Applications
Pre insulated pipes for air-conditioning and refrigeration offer various installation options, making them adaptable to different settings.
Their energy-efficient design aids in reducing overall energy consumption, contributing to cost savings.
In addition, their sturdy and long-lasting construction guarantees reliable performance for extended periods.
Various Installation Options
For versatile applications in air-conditioning and refrigeration systems, consider the various installation options available for these pre-insulated copper pipes.
When installing these pipes, you have the flexibility to choose custom fittings that suit your specific needs.
Additionally, these pipes are durable enough for outdoor placement, providing reliable performance in various environments.
The installation process is straightforward, ensuring a hassle-free experience for both residential and commercial applications.
With the ability to select custom fittings, place them outdoors, and enjoy easy installation, these pre-insulated copper pipes offer a convenient solution for your air-conditioning and refrigeration needs.
Energy-Efficient Design
Consider the energy-efficient design of these pre-insulated pipes to improve their versatility in various applications, including air-conditioning and refrigeration systems. The pipes are crafted with Class O rated nitrile rubber insulation, ensuring thermal efficiency and energy savings. By boosting heat retention, these pipes improve the overall system efficiency, making them ideal for cost-effective and environmentally friendly operations. The 20m long copper coils, available in pairs with different diameter options, offer flexibility in installations to suit diverse needs. Below is a table illustrating the key features of these energy-efficient pre-insulated pipes:
|
Feature |
Description |
|
Insulation |
Class O rated nitrile rubber for thermal efficiency and energy savings |
|
Length |
20m long coils for extended reach |
|
Versatility |
Copper coils in pairs with various diameter options for versatile installations |
Durable and Long-Lasting
Crafted to meet Class O standards for air-conditioning and refrigeration applications, these durable and long-lasting pre-insulated copper pipes offer versatile applications in various settings.
The nitrile rubber insulation guarantees efficient protection against heat loss and condensation, providing resilient performance for both residential and commercial use.
These pipes, compliant with UK Building and Fire Safety Regulations, are ideal for a wide range of HVAC projects due to their reliability and longevity.
Whether you're looking to improve your home's cooling system or upgrade your business's refrigeration setup, these pre-insulated pipes guarantee lasting efficiency and dependable functionality, making them a valuable asset for any project requiring high-quality performance and durable materials.
High-Quality Standards
Have the high-quality standards of the pre-insulated pipes been independently verified? The pre-insulated pipes are designed with Class O rated insulation, ensuring compliance with UK Building and Fire Safety Regulations. This certification guarantees excellent quality and safety for your air-conditioning and refrigeration needs. The installation techniques are straightforward, eliminating the need for messy glues, tapes, or powders. This simplifies the process, making it efficient for both residential and commercial applications. To further illustrate the quality of these pipes, take a look at the comparison table below:
|
Feature |
Description |
Benefit |
|
Class O Rated |
Ensures compliance with safety regs |
Peace of mind |
|
Easy Install |
No need for messy adhesives |
Time-saving |
|
Choice of Size |
9mm or 13mm thickness options |
Customizable insulation |
These high-quality standards guarantee a reliable solution for your air-conditioning and refrigeration requirements, giving you confidence in the durability and effectiveness of the pre-insulated pipes.
Performance Assurance
When assessing pre-insulated pipes for air-conditioning and refrigeration, the focus shifts to guaranteeing their performance assurance through key design features and materials. To ensure top-notch performance, manufacturers conduct rigorous performance testing to evaluate the pipes' efficiency and durability. Quality assurance processes are implemented during production to maintain high standards and reliability.
Here are three essential aspects that contribute to the performance assurance of pre-insulated pipes:
- Class O Rated Insulation: Ensures compliance with UK Building and Fire Safety Regulations, providing peace of mind regarding safety standards.
- Nitrile Butadiene Rubber (NBR) Insulation: Delivers excellent performance and durability, enhancing the pipes' longevity and efficiency.
- Suitability for Various Applications: Designed for air conditioning and refrigeration in both residential and commercial settings, catering to a wide range of needs.
Efficient Insulation Design
Designing efficient insulation for pre-insulated pipes involves optimizing materials and thickness to guarantee ideal heat retention and compliance with safety standards. To achieve thermal efficiency in construction projects, the insulation must balance being cost-effective while offering maintenance benefits. The Nitrile Butadiene Rubber (NBR) insulation used in these pre-lagged copper pipes assures effective heat retention, meeting UK Building and Fire Safety Regulations. The 13mm thickness of the insulation strikes a balance between thermal efficiency and safety compliance, making it suitable for various applications in air-conditioning and refrigeration. This design not only saves time during installation but also reduces labor costs, making it an attractive option for both residential and commercial construction projects.
|
Benefits |
Description |
|
Thermal Efficiency |
Optimal heat retention for improved energy efficiency and performance. |
|
Cost-Effectiveness |
Affordable insulation solution without compromising on quality. |
|
Maintenance Benefits |
Reduces the need for frequent maintenance, saving time and resources. |
Application in HVAC Systems
With their vital role in air-conditioning and refrigeration systems, pre-insulated pipes are indispensable components for HVAC professionals and industry stakeholders alike. When it comes to HVAC systems, pre-insulated pipes offer various efficiency benefits and specialized installation techniques that cater to different needs. Here's why they're essential:
- Efficiency Benefits: Pre-insulated pipes help improve the overall efficiency of HVAC systems by reducing heat loss during transportation, ensuring that the air-conditioning and refrigeration units operate at their best performance levels.
- Quick Installation Techniques: The pre-lagged copper pipes are designed for quick and mess-free installation, saving time and effort for technicians. This streamlined installation process is important for both residential and commercial settings, where efficient system setup is vital.
- Reliable Performance: HVAC technicians, contractors, and manufacturers rely on pre-insulated pipes for their reliability in maintaining consistent performance levels over time. The insulation thickness options of 9mm and 13mm provide flexibility to meet different system requirements, ensuring long-term functionality and energy savings.
Frequently Asked Questions
What Type of Copper Pipe Is Used for Air Conditioning?
For air conditioning, copper tubing with insulation is used. It helps refrigeration lines and prevents energy loss. The tubing comes in different sizes for various applications. It's easy to install in homes and businesses, keeping things cool efficiently.
What Is a Pre Insulated Pipe?
When you ask about pre-insulated pipes, you discover a smart choice for air-conditioning and refrigeration. Enjoy benefits like energy efficiency and quick, mess-free installation. They meet safety regulations too, making your space comfortable and secure.
What Grade Copper Pipe for Aircon?
For your air conditioning unit, select Grade 1 copper pipes for peak performance. They're corrosion-resistant, ensuring durable reliability. Adequate insulation prevents condensation and enhances energy efficiency. Size matters, so choose the correct fit for effective installation and maintenance.
What Is the Minimum Copper Pipe Length for Split Ac?
For your split AC system, make sure the minimum copper pipe length meets your space requirements. Proper installation tips include sizing accurately and insulating to maintain efficiency. Consulting a professional HVAC tech guarantees best performance.
