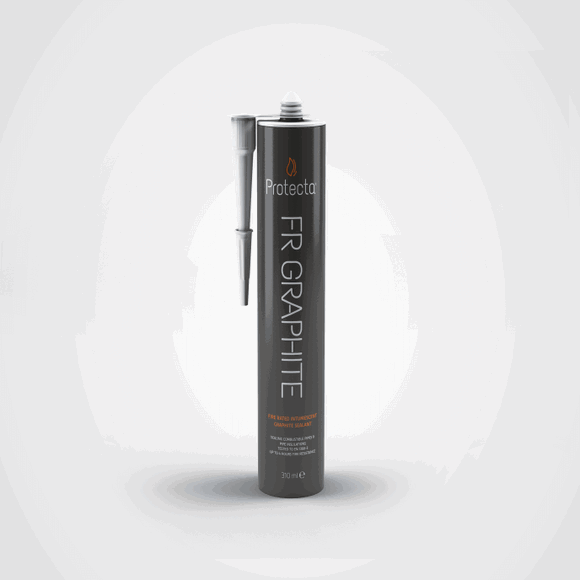

Protecta FR Graphite Sealant is a high-performance fire protection solution, specifically designed to fire seal difficult services, which traditional fire-rated mastics cannot achieve. This sealant, known for its FR Graphite formula, is engineered to expand when subjected to fire, closing openings around penetrations such as large plastic pipes or any combustible and low-temperature melting materials that have burnt away. It effectively prevents the spread of fire, smoke, and gases through openings in fire-rated walls and floors.
Unlike traditional fire-rated mastics, Protecta FR Graphite excels in sealing complex services and difficult penetrations, ensuring a secure fire seal in passive fire protection systems. It is suitable for use on various surfaces, including gypsum, concrete, brick, LECA, and more.
Protecta FR Graphite sealant is designed for easy application without priming, and it is suitable for cable trays, large plastic pipes, and other challenging transit services. Its fire performance specification ensures maximum fire protection, closing gaps and preventing the spread of fire and smoke.
Key Features:
- High Specification Graphite: The sealant features a high specification heat-expanding graphite material designed to prevent the spread of fire and smoke.
- Water-Based Compound: FR Graphite is a water-based fire-classified sealing compound, ensuring safe and easy application on PVC and most non-porous surfaces.
- Thermal Activation: Upon exposure to fire, the heat-expanding graphite material activates, expanding to fill gaps and maintain fire resistance.
- Curing: The sealant may shrink during curing, and should be left to harden for a month for optimal performance.
- Available in box quantities - 310ml foil packs. 25 tubes in a box
- A high specification mastic designed to prevent the spread of fire, smoke and gases through openings in fire rated walls and floors.
- Used to seal difficult services which traditional fire rated mastics do not achieve, including large plastic pipes.
- Graphite sealant becomes tack free in just 1 hour, accomdates 12.5% movement, permanently flexible
| Product Type | Ready for use, fire rated grapfite sealant |
| Brand | Protecta |
| Colour | Black |
| pH | 8.5 |
| Fire Classification | B - S1, d0 |
| Delivery Terms | |
|---|---|
| Order Quantity | Delivery Charge (Ex. VAT) |
| 1 - 4 Boxes | £18.00 |
| 5 - 30 packs | £60 |
| Pallet charges apply above 4 Tubs | |
Returns And Cancellations
- You are free to cancel the order and get a full refund before we confirm the order via email.
- Once the order is confirmed and a delivery date is issued, orders cannot be cancelled.
- If ordered in excess, or no longer required, please let us know by email or call and we will assist accordingly. Buyer pays postage
- Returns are applicable within 14 days of the date of receipt. A restocking fee may be applicable.
You May Also Like
Our Customers Include
Protecta Fire Rated Graphite Sealant is a water-based, high-quality compound designed to seal penetrations in fire-rated walls and floors. It expands at 150°C, offering up to four hours of fire resistance, making it effective against the spread of fire, smoke, and gases. This sealant is permanently flexible, allowing for movement up to 12.5% without compromising its seal. Plus, it hardens quickly, typically becoming tack-free in just one hour, and requires no priming for most surfaces. With its eco-friendly formula and low emissions, it's not only effective but also safer for your indoor environment. There's more to discover about its applications.
Key Takeaways
- Protecta Fire Rated Graphite Sealant is a high-quality, water-based compound for sealing penetrations in fire-rated walls and floors.
- It provides up to 4 hours of fire resistance when exposed to temperatures of 150°C.
- The sealant expands significantly upon thermal activation, effectively sealing openings to prevent fire, smoke, and gas spread.
- Its eco-friendly formulation emits low VOCs and complies with health protection standards, ensuring improved indoor air quality.
- Available in 310ml tubes, it hardens quickly and requires no priming for most surfaces, simplifying application.
Product Overview
Protecta Fire Rated Graphite Sealant is a high-quality solution for anyone needing to protect penetrations in fire-rated walls and floors. This water-based fire sealing compound effectively prevents the spread of fire, smoke, and gases, guaranteeing safety in critical areas.
Its unique formulation allows it to expand when exposed to temperatures of 150°C, offering up to 4 hours of fire resistance as combustible materials burn away.
When using Protecta FR Graphite, you'll want to consider application techniques to guarantee peak performance. The sealant hardens quickly, becoming tack-free within just one hour, making it efficient for your projects.
It's also permanently flexible, accommodating movement of up to 12.5%, which is essential for various surfaces like concrete, brick, steel, wood, and PVC. Before application, conducting a compatibility assessment is important to confirm that the sealant adheres well to your chosen materials.
Packaged in 310ml tubes, each box contains 25 tubes, ideal for tackling complex penetrations, particularly large plastic pipes and cable trays.
With a minimum storage life of 12 months, Protecta FR Graphite is a reliable choice for your fire safety needs.
Fire Performance Details
When it comes to fire safety, the performance of sealants like Protecta Fire Rated Graphite is vital. This innovative product features impressive fire resistance mechanisms, expanding upon exposure to fire at 150°C.
With an expansion property of approximately 1:25, Protecta FR Graphite effectively seals openings for up to four hours, ensuring that gaps are filled as combustible materials burn away. Its classification for use with plastic pipes and cables means it's perfect for extreme transit applications, including cable trays with EI 180 ratings.
You can trust that it will perform under the most demanding conditions. The fire performance specifications are based on a curing period of 30 days, ensuring ideal effectiveness during fire situations.
Additionally, Protecta FR Graphite maintains permanent flexibility, accommodating movement up to 12.5% without compromising its fire sealing capabilities. This means that even as your building settles or shifts, you won't have to worry about losing that vital fire protection.
Application Benefits
Using Protecta FR Graphite sealant on your construction projects brings numerous application benefits that streamline the process.
You'll appreciate how quickly this sealant hardens, becoming tack-free in just one hour. This efficiency allows you to move on to the next steps of your project without unnecessary delays. Its design accommodates movement up to 12.5%, so you can trust it to maintain flexibility as buildings shift or expand with temperature changes.
One of the standout features is that it requires no priming for most surfaces, simplifying your application techniques across various materials, including concrete, bricks, steel, wood, and PVC. User experiences show that this makes it a go-to choice for contractors looking for ease and versatility.
Additionally, the water-based formula guarantees low emissions, contributing to safer indoor air quality during and after application.
With Protecta FR Graphite, you're also gaining fire resistance for up to 4 hours after thermal activation at 150°C. It effectively seals openings around penetrations, preventing the spread of fire, smoke, and gas.
Environmental Impact
Many builders and contractors are increasingly aware of the environmental impact of their materials, and Protecta FR Graphite sealant stands out in this regard.
This eco-friendly sealant features a halogen-free formulation, which reduces the risk of toxic emissions during a fire. You can feel confident knowing that it boasts low emissions, with a total volatile organic compound (TVOC) emission rate of just 41 µg/m³ after three days. This not only promotes better indoor air quality but also aligns with your sustainability practices.
Moreover, Protecta FR Graphite complies with EMICODE emission class EC 1PLUS, ensuring ideal health protection for you and your clients.
Its water-based formulation minimizes hazardous waste, making it a responsible choice for environmentally conscious projects. With a minimum storage life of 12 months, you'll reduce waste by ensuring the product remains usable long before it expires.
Ordering Information
Protecta FR Graphite sealant is easy to order, ensuring you can quickly get the eco-friendly solution you need for your projects. Each box contains 25 tubes, with each tube holding 310ml of the sealing compound. Your order will typically be dispatched within 24 hours, Monday to Friday, so you won't be waiting long.
Here's how you can streamline your ordering process:
- Choose Your Quantity: Decide how many boxes you need. Remember, orders over 4 boxes will incur pallet charges.
- Select Shipping Options: For smaller orders (1-4 boxes), a delivery charge of £18.00 applies. If you need it fast, next working day delivery is available.
- Request Bulk Orders: If you're looking for custom orders or bulk discounts, don't hesitate to ask for a quote.
Technical advice is also available through the customer support line, ensuring you have all the information you need.
Just remember, Protecta FR Graphite is non-returnable, so expertise in application is recommended. With this straightforward ordering process, you can feel confident in your choice of fire protection products.
Frequently Asked Questions
Is It Possible to Have a Sealant That Is Fire Rated?
Yes, you can definitely find a fire-rated sealant! Such products improve fire safety in various sealant applications, ensuring you protect your space and loved ones from potential hazards while maintaining a sense of security and belonging.
What Is the Fire Rating of Fire Sealant?
The fire rating of fire sealants varies, but you'll find high-performance options that improve fire safety in sealant applications. You can trust these products to help protect your space from fire hazards effectively.
What Is Graphite Sealant?
Graphite sealant's unique properties make it perfect for various applications. It expands under heat, sealing gaps effectively. You'll find it ideal for fire protection, ensuring safety and durability in your projects while maintaining flexibility.
Is Silicone Sealant Fire Rated?
Silicone sealants aren't fire rated. While they have good silicone properties, they don't meet fire safety standards. For effective fire protection, you need specialized fire-rated sealants that can withstand high temperatures and prevent smoke spread.
Conclusion
In summary, Protecta Fire Rated Graphite Sealant is a reliable choice for fire protection in various applications. Its impressive fire performance guarantees safety, while its easy application offers convenience. Additionally, the environmental impact is minimal, making it a responsible option. When ordering, you can find it through various suppliers, guaranteeing you have access to this essential product. By choosing this sealant, you're taking a proactive step towards enhancing fire safety in your projects.
