Protecta FR Pipe Wrap - 4 Hr Fire Rated - Box Quantities
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Product Details:
| Size | Box Quantity | Intended Use |
| Protecta FR Pipe Wrap 55mm | 25 | Plastic pipes & conduits ≤ Ø55mm |
| ProtectaFR Pipe Wrap 82mm | 25 | Plastic pipes & conduits ≤ Ø82mm |
| Protecta FR Pipe Wrap 110mm | 25 | Plastic pipes & conduits ≤ Ø110mm |
| Protecta FR Pipe Wrap 125mm | 20 | Plastic pipes ≤ Ø125mm |
| Protecta FR Pipe Wrap 160mm | 12 | Plastic pipes ≤ Ø160mm |
| Protecta FR Pipe Wrap 200mm | 1 | Plastic pipes ≤ Ø200mm |
| Protecta FR Pipe Wrap 250mm | 1 | Plastic pipes ≤ Ø250mm |
| Protecta FR Pipe Wrap 315mm | 1 | Plastic pipes ≤ Ø315mm |
| Protecta FR Pipe Wrap 400mm | 1 | Plastic pipes ≤ Ø???mm |
Protecta FR Pipe Wrap, a cutting-edge fire protection solution designed for a wide range of pipe wall thicknesses. The Protecta FR Pipe Wrap is engineered to provide exceptional passive fire protection for both plastic and metal pipes, including pipes with continuous combustible pipe insulation and those with or without cables. This product is essential in preventing the spread of fire through walls and floors by effectively sealing the through-penetration in case of a fire.

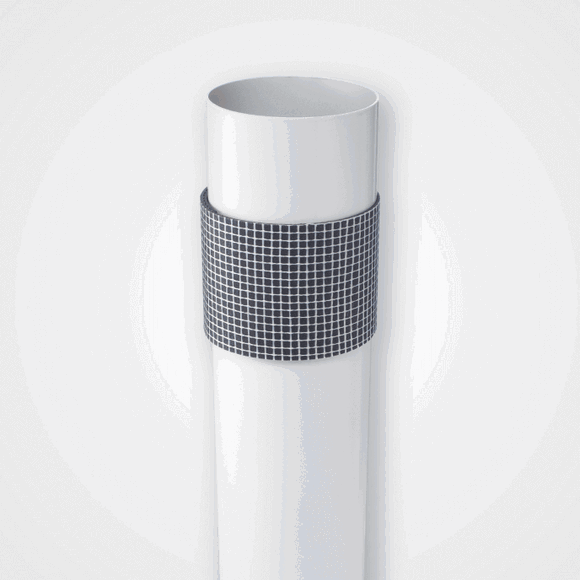

Protecta Pipe Wrap consists of a highly responsive, intumescent swelling material that reacts with heat. When exposed to fire, it expands to fill the gap left by melting plastic pipes, preventing the fire from spreading. This innovative design is ready-made for most common diameters, from the smallest pipes available to ø400 mm.
This pipe wrap can be used in conjunction with Protecta FR Board and Protecta EX Mortar, providing a comprehensive fire protection system for both residential and commercial buildings. It is ideal for securing pipe sizes from the smallest pipes to larger ones, making it versatile for various applications.
The installation is straightforward; simply cast the pipe wrap into the wall or floor by fixing it around the through-penetration with the attached sticker. It is suitable for use with plastic pipes with or without cables as well as cable bundles. This ensures robust fire-rated walls and floors, maintaining the integrity of your building's structure in the event of a fire.
Key Features:
- Fire rated pipe wrap is availabe for plastic pipe sizes from smallest pipes available to Ø400 mm with a wide range of pipe wall thicknesses. can be used for pipes with continuous combustible pipe insulation, for plastic pipes with cables (conduits)
- Offers fire classifications up to 240 minutes for both integrity and insulation
- Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes plus numerous composite pipes
- Tested and certified for U/U pipe end applications. CE marked
- Protecta pipe wrap offers excellent sound insulation - up to 52 dB when used with FR Board
- Pipe wrap is environmentally and user friendly.
- Simple to install in both Protecta® FR Board and EX Mortar
- Fire-rated pipe wraps available for Outer diameters between 55mm to 400mm
- Classified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes and fire sealing in all types of constructions.
- Offer sound insulation and Fire classifications up to 240 minutes for both integrity and insulation
- Protecta pipe wrap has a 25 years working life guarantee
| Product Type | Intumescent FR Pipe Wrap |
| Brand | Protecta |
| Colour | Antracite |
| Graphite Weight / Density | 1.3 kg/m2 per mm thickness / 1300 kg/m3 |
| Maximum Expansion Temperature | 150 °C |
| Fire Protection | 4 Hr fire rated |
| Delivery Terms | |
|---|---|
| Order Quantity | Delivery Charge (Ex. VAT) |
| 1 - 4 Boxes | £18.00 |
| 5 - 30 packs | £60 |
| Pallet charges apply above 4 Tubs | |
Cancellations, Returns And Refunds:
- You are free to cancel your order before we send you an order confirmation email with an estimated delivery date, and get a full refund
- Once the order is confirmed and an estimated delivery date is issued via email, Orders cannot be cancelled.
- Incorrectly ordered goods can be returned within 14 days of delivery at our discretion. The customer is responsible for ensuring the goods are returned back to the address provided, in good condition where they will be inspected prior to processing any refunds. Restocking fee may be applied
- For incorrect, damaged or faulty products, please contact us immediately after you receive delivery and we will assist accordingly.
You May Also Like
Customer Reviews
“ Protecta is "go to" brand for passive fire protection. Fantastic”Oliver H.
Verified Buyer
Our Customers Include
Protecta FR Pipe Wrap is an essential fire safety solution providing up to 240 minutes of protection for various pipe materials. It's suitable for both residential and commercial use, accommodating pipes with diameters up to 400 mm. The wrap features a graphite-based reactive intumescent strip that expands and seals openings created by heat exposure. For peak installation, wrap it completely around pipes and secure it with self-adhesive tabs. Seal any gaps with Protecta EX Mortar for added fire resistance. With its rigorous certification, you'll guarantee compliance with fire safety regulations. You might find additional helpful insights as you explore further.
Key Takeaways
- Protecta FR Pipe Wrap provides up to 240 minutes of fire protection, which is equivalent to 4 hours in fire safety standards.
- The product features a reactive intumescent strip that expands when exposed to heat, sealing breaches effectively.
- It is suitable for various pipe materials, including PVC-U, PVC-C, PE, and HDPE, accommodating diverse installation needs.
- The wrap can be installed easily around pipes or insulation, ensuring maximum fire protection for penetrations in walls and floors.
- Certified to meet stringent fire safety regulations, Protecta FR Pipe Wrap maintains structural integrity during fire incidents.
Product Overview
When it comes to fire safety, Protecta FR Pipe Wrap stands out as a reliable solution, offering up to 240 minutes of fire protection for both the integrity and insulation of breached walls and floors.
This product is ideal for various application scenarios, addressing the needs of both residential and commercial spaces. You'll appreciate its versatility, as it accommodates a wide range of pipe materials, including PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC, and PP.
Designed for pipe diameters up to 400 mm, Protecta FR Pipe Wrap guarantees material compatibility across different installations. Its innovative graphite-based reactive intumescent strip expands when exposed to heat, effectively sealing gaps created by melting pipes during a fire. This feature improves safety, giving you peace of mind in critical situations.
Whether you're dealing with drywalls, masonry, or concrete, this product meets fire safety regulations, making it a smart choice for protecting your property.
With straightforward installation using self-adhesive tabs and compatibility with Protecta EX Mortar or FR Board, you can easily secure the annular space, assuring you're well-prepared for any fire hazard.
Installation Guidelines
How can you guarantee maximum fire protection during installation? First, make certain you wrap the Protecta FR Pipe Wrap completely around the pipes or insulation. Secure it using the self-adhesive tabs for effective sealing. This step is essential for maintaining the integrity of your fire protection system.
Next, don't forget to seal the annular space around the wrap. Use Protecta EX Mortar or FR Board for this purpose, as it guarantees peak fire resistance.
When it comes to accommodating different pipe sizes, you're in luck! The installation fits a wide range of diameters, up to 400 mm, and various wall thicknesses.
Follow the installation tips closely, especially for casting the wrap into walls or floors around penetrations. This guarantees that the structural integrity is maintained during potential fire exposure.
Fire Protection Features
With the installation of Protecta FR Pipe Wrap complete, it's time to explore its impressive fire protection features. This product offers fire resistance of up to 240 minutes, ensuring both integrity and insulation during a fire. By effectively preventing the spread of fire through breached walls and floors, you're enhancing the safety of your building.
One standout feature is the graphite-based reactive intumescent strip. When exposed to heat, this strip undergoes heat expansion, sealing any openings created by melting pipes. This proactive response is essential in maintaining safety during a fire incident.
Protecta FR Pipe Wrap is also certified for various pipe materials, including PVC-U, PVC-C, PE, and HDPE, making it a versatile choice for many construction applications.
Additionally, the wrap maintains structural integrity during fire exposure, meeting stringent fire safety regulations. It's been tested for effectiveness in real fire scenarios, giving you peace of mind that it will perform reliably when it matters most.
Customer Support Options
At any stage of your project, you can rely on comprehensive customer support for Protecta FR Pipe Wrap. Whether you have questions about orders, installation, or specific project needs, our dedicated team is here to assist you. You can easily reach out through various support channels, guaranteeing your customer inquiries are addressed promptly.
Here's a glimpse of the support options available:
| Support Channel | Description |
|---|---|
| Email Support | For quick questions and detailed inquiries |
| Phone Support | Speak directly with a support representative |
| Site Visits | Request personalized assessments for your project |
| Feedback & Reviews | Share your experience to help others |
| Blog Resources | Access articles on pipe lagging and insulation |
We encourage you to leave reviews and share your experiences with Protecta FR Pipe Wrap. Your insights not only help others make informed decisions but also improve our community. With a 5.0 rating from verified customers, you can trust that your satisfaction is our priority. Together, we'll guarantee a smooth and successful project.
Frequently Asked Questions
Is Pipe Wrap Insulation Flammable?
Pipe wrap insulation isn't flammable; it's designed for flame resistance. You can trust these insulation materials to protect your space from fire hazards, ensuring safety while providing a sense of security for everyone involved.
Is Foam Pipe Insulation Fire Rated?
Foam pipe insulation isn't inherently fire-rated; its fire safety depends on the insulation material used. Always check certifications to confirm you're choosing a product that meets regulatory standards for ideal protection in your space.
What Is FR Pipe?
FR pipe refers to fire-resistant pipe, designed to improve fire safety in various applications. These insulation materials help prevent heat transfer, protecting structures and ensuring safety for you, your family, and your community during emergencies.
Why Are Intumescent Pipe Wrap Systems Wrapped in Polythene?
Intumescent pipe wrap systems are wrapped in polythene to protect their fire protection properties. This wrapping keeps the material clean, improves installation ease, and guarantees the intumescent properties remain effective against moisture and contaminants.
Conclusion
In summary, Protecta FR Pipe Wrap provides effective fire protection with a 4-hour rating, ensuring safety in various applications. Its straightforward installation guidelines make it accessible for users, while its features offer reliable performance against fire hazards. Don't hesitate to reach out to customer support if you have questions or need assistance. By choosing Protecta FR Pipe Wrap, you're investing in a product designed to improve safety and compliance in your building projects.
