Protecta Fire Rated Service Transit - Intumescent Pipe Sleeves - Box Quantities
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Product Details:
| Outer Diamter | Inner Diameter | Length | Intended Use |
| 40mm | 33.8mm | 150mm | Flexible and rigid walls from 75mm to 150mm thick |
| 63mm | 53.4mm | 150mm | |
| 90mm | 75.8mm | 150mm | |
| 110mm | 95mm | 150mm | |
| 40mm | 33.8mm | 250mm | Flexible, rigid and timber walls from 100mm to 210mm thick, or rigid and timber floors from 150mm to 210 mm thick |
| 63mm | 53.4mm | 250mm | |
| 90mm | 75.8mm | 250mm | |
| 110mm | 95mm | 250mm | |
| 40mm | 33.8mm |
400mm |
Flexible, rigid and timber walls, or rigid and timber floors from 211mm to 400mm thick |
| 63mm | 53.4mm | 400mm | |
| 90mm | 75.8mm | 400mm | |
| 110mm | 95mm | 400mm | |
| 40mm -For Floors | 33.8mm | 150mm | Rigid and timber floors 150mm thick |
| 110mm - For Floors | 95.0mm | 150mm | |
| 40mm -For Floors | 33.8mm | 250mm | Rigid and timber floors 151-250mm thick |
| 110mm - For Floors | 95.0mm | 250mm | |
| 40mm -For Floors | 33.8mm | 400mm | Rigid and timber floors 251-400mm thick |
| 110mm - For Floors | 95.0mm | 400mm |

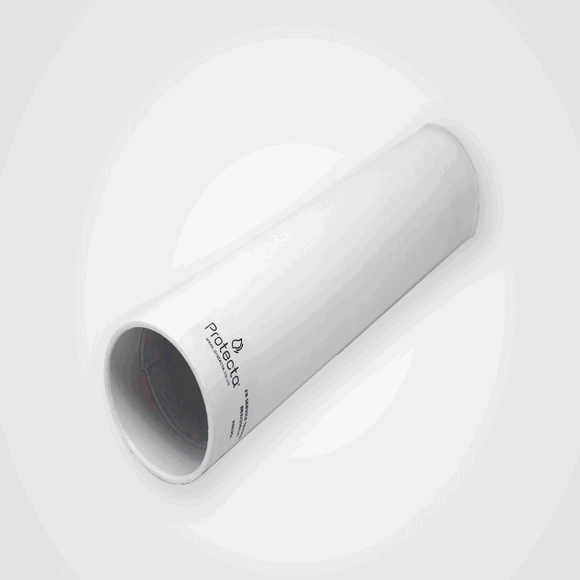

Protecta FR service transit is a cutting-edge fire protection solution designed to maintain the fire resistance of walls and floors when service penetrations are breached by continuous cables, pipes, or other installations.
This innovative intumescent pipe and cable sleeve is ideal for applications in masonry, concrete, and drywall constructions where it is crucial to seal spaces or voids around cables and pipes, preventing the passage of flames, smoke, and gases.
Featuring a graphite-based intumescent lining material, Protect FR service transit expands upon heating to effectively seal voids, maintaining the required fire classification. It is certified for use with a wide range of materials, including PVC-U, SAN+PVC, PP, PE, LDPE, MDPE, HDPE, and AB pipes, as well as a variety of cables.
The Protect FR service transit is available in three different lengths, allowing for flexibility depending on the thickness of the supporting construction. It can be installed fitted several ways; cast in concrete, friction fitted in concrete, masonry or gypsum, or inserted in larger apertures with Protecta FR Acrylic, FR Board or EX Mortar. This product is particularly suitable for installations in tight spaces, ensuring comprehensive fire protection even in challenging conditions.
Key Features:
- Pipe and cable sleeve is safe, easy and quick to fire stop service penetrations
- Protects FR service transit is ideal for installations where it is likely that services will be inserted or replaced later on
- Ideal for installations in tight spaces where it will be difficult to install a normal fire seal at a later stage in the building construction
- A plug in the middle prevents penetration of cold smoke (see air permeability tests on the next page) Note: FD transits does not require plugs
- Designed with new patented fast expanding graphite material
- For inserting cables, conduits, plastic pipes, steel pipes and plastic ducts through walls and floors
- Classified for fire sealing all types of constructions; drywalls, masonry or concrete walls, timber walls, concrete floors and timber floors
- Offres very high fire classifications up to 240 minutes for both integrity and insulation
- Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes plus all kinds of cables
- Protecta FR service transit is designed to mintain fire resistance of walls and floors when these are breached by continuous cables, pipes and ducts.
- It consists of a circular or rectangular high temperature shell containing a graphite based intumescent lining material
- Pipe sleeves very high fire classifications up to 240 minutes for both integrity and insulation.Maintains acoustic properties
- Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes plus all kinds of cables
| Product Type | Intumescent FR Pipe Sleeve - FR service transit |
| Brand | Protecta |
| Colour | White tube or rectangular steel with anthracite inlay |
| Tube material | High temperature resistant plastic, or steel |
| Lining | Graphite (1.4 kg/m2 per mm thickness) |
| Manimum Expansion Temperature | 105 °C |
| Fire Protection | 4 Hr fire rated |
| Delivery Terms | |
|---|---|
| Order Quantity | Delivery Charge (Ex. VAT) |
| 1 - 4 Boxes | £18.00 |
| 5 - 30 packs | £60 |
| Pallet charges apply above 4 Tubs | |
