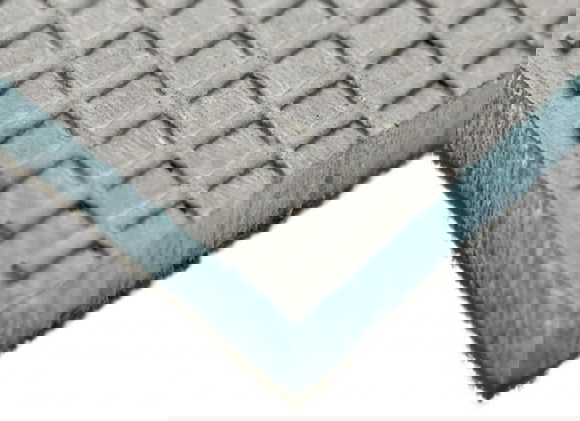

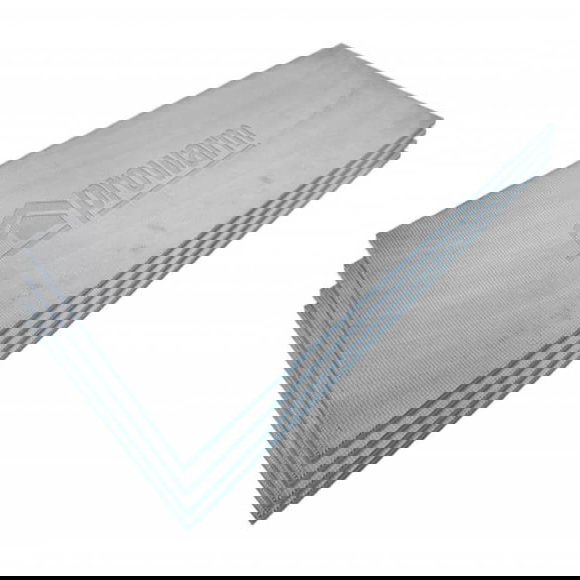

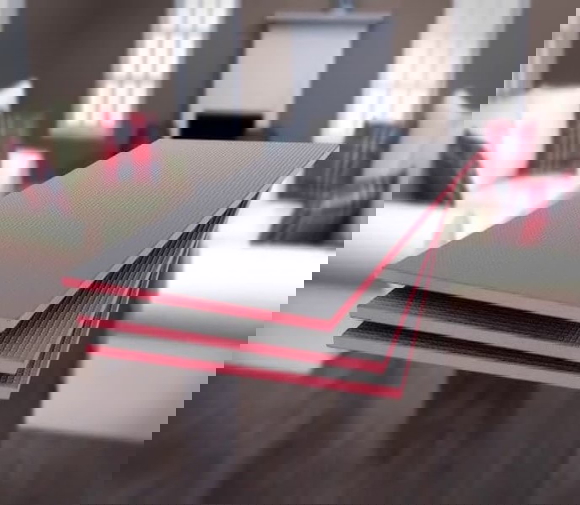

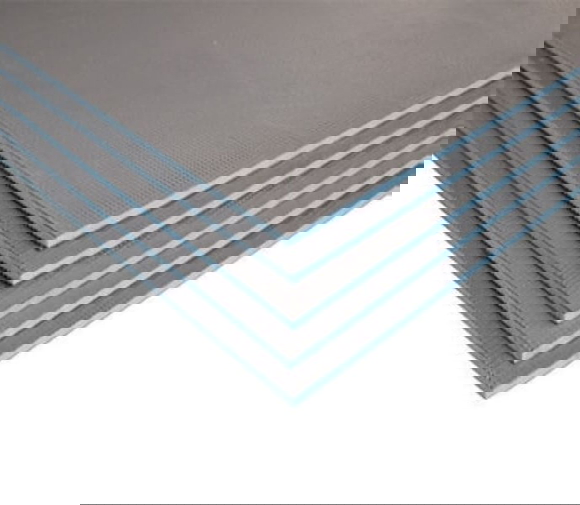

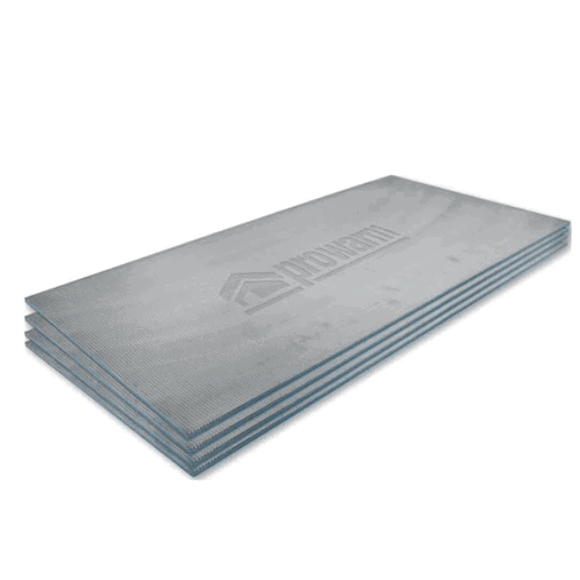

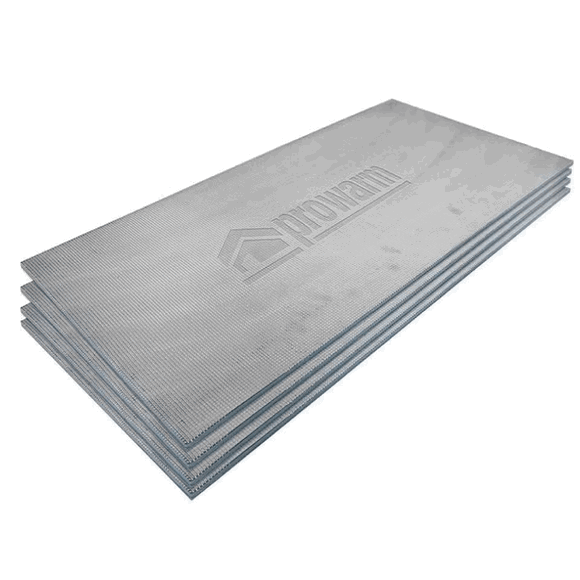

ProWarm Tile backer is a high-quality XPS insulation board covered with a fibreglass mesh on both sides. They are waterproof, making them ideal for wet rooms, bathrooms etc. You can also use the tile backer boards on walls without worrying about them falling off by the weight of the chosen tiles.
ProWarm tile backer boards are extremely durable in construction. They remain unaffected by moisture. Made of extruded polystyrene, these boards give superior thermal insulation in every application. Their high compressive strength makes them ideal for all floor insulation applications. Tile backer boards have superior levelling properties. They are definitely a step up from standard plasterboards.
ProWarm BACKER-PRO insulating boards are also used for underfloor and under tile heating applications. Installing tile backer boards below under-floor heating systems will significantly reduce energy expenses on existing uninsulated concrete or timber subfloors.
Product Specification:
- Length: 1.2m
- Width: 600mm
- Thickness Available: 6mm, 10mm, 12.5mm, 20mm, 30mm & 50mm thickness
- Material: Extruded Polystyrene Sheet - Polymer Modified Coating
- Thermal Conductivity: 0.034 W/mK
- Compression Strength: 30 t/m2
- Fire Protection Class: Bs 3837:B1 DIN
- Product Code: Prowarm Backer Pro
Key Features:
- Tile backer boards by Prowarm comes has excellent insulating properties.
- Waterproof XPS boards that are ideal for wet rooms, bathrooms and kitchens.
- Tile backer board insulation also have also excellent soundproofing properties in a room. Reduces impact noise.
- XPS panels have excellent levelling properties
- They are lightweight and easy to install.
Applications:
ProWarmTile backer board insulation has two main applications:
- As an excellent waterproof surface to fix wall or floor tiles.
- As the best heat insulation for underfloor heating systems.
- The flat XPS panels are especially suitable for applications such as underfloor heating and under tile heating.
- Tile Backer boards: 1200mm x 600mm
- Thickness available: 6mm, 10mm, 12.5mm, 20mm, 30mm & 50mm thickness
- Low thermal conductivity of 0.034 W/mK ensures no heat loss.
- Tile backer board insulation has a high compressive strength
- Waterproof tile backer boards, perfect for bathrooms, wet rooms and kitchens
- Excellent soundproofing properties.
- Tile backer boards have excellent soundproofing properties
- Lightweight and easy to install XPS panels.
| Insulation Type | Waterproof tile backer boards |
| Brand | Prowarm |
| Material | Extruded polystyrene. Polymer Modified Coating |
| Product Code | Prowarm Backer Pro |
| Length | 1200 mm |
| Width |
600 mm |
| Thickness | 6mm, 10mm, 12.5mm, 20mm, 30mm and 50mm |
| Thermal Conductivity | 0.034 W/mK |
| Compressive Strength | 30 t/m2 |
| Fire Protection | Class Bs (3837:B1 DIN) |
| Application | Wall, floor and underfloor heating systems |
| Order Value | Delivery Charges (Excluding VAT) |
|---|---|
| Any Order Value | £4.2 anywhere in the Mainland UK |
Returns and Cancellations:
- You can cancel your order and get a full refund before we confirm your order via email.
- Orders cancelled after the email confirmation is sent, may attract a restocking fee.
- You are welcome to return the products ordered in excess/no longer required, via post or couriers, provided they are in the original packaging and in a resalable condition within 14 days of delivery. Return requests made after 14 days will not be entertained.
- If wrong products were delivered or delivered items are faulty, please email us and we will assist you accordingly.
For more information, please refer to our Delivery information page
You May Also Like
Customer Reviews
“ excellent product. arrived next day.”Andrew C.
Verified Buyer
Our Customers Include
Installation Guide
| Insulation Type | Waterproof tile backer boards |
| Brand | Prowarm |
| Material | Extruded polystyrene. Polymer Modified Coating |
| Product Code | Prowarm Backer Pro |
| Length | 1200 mm |
| Width |
600 mm |
| Thickness | 6mm, 10mm, 12.5mm, 20mm, 30mm and 50mm |
| Thermal Conductivity | 0.034 W/mK |
| Compressive Strength | 30 t/m2 |
| Fire Protection | Class Bs (3837:B1 DIN) |
| Application | Wall, floor and underfloor heating systems |
Achieve peak insulation and durability with Prowarm's Insulated Tile Backer Board, sized at 1200 x 600mm. This board excels in thermal efficiency and moisture resistance, ensuring top performance for underfloor heating systems. Its versatility allows for different thickness options from 6mm to 50mm, providing durability and energy savings. When installing, secure the board on a clean, dry, level subfloor, following a staggered layout for a snug fit. It boosts underfloor heating efficiency and distributes heat effectively. For maintenance, check for damage, use mild detergent for cleaning, and seal joints correctly. Learn more about its benefits for a well-rounded heating system.
Key Points
- Size of 1200 x 600mm for effective insulation
- Outstanding thermal efficiency and resistance to moisture
- Various thickness options ranging from 6mm to 50mm
- Strong compressive strength for long-lasting durability
- Low thermal conductivity for energy efficiency
Key Features
Highlighting the essential characteristics, the ProWarm Insulated Tile Backer Board excels in thermal efficiency and moisture resistance, making it a top choice for your underfloor heating needs.
Its design in a size of 1200 x 600mm ensures efficient insulation, keeping your space warm and cosy. With various thickness options ranging from 6mm to 50mm, this board offers versatility in installation, catering to different requirements.
The high compressive strength of the board guarantees durability, while its low thermal conductivity promotes energy efficiency, helping you save on heating costs. Additionally, its waterproof properties make it ideal for wet rooms and bathrooms, ensuring long-lasting performance even in humid environments.
Easy to install and compatible with a range of heating systems, this board is a reliable option for achieving excellent thermal comfort in your living spaces.
Trust in the ProWarm Insulated Tile Backer Board to provide the warmth and efficiency you seek for your underfloor heating system.
Installation Guide
When installing Prowarm Insulated Tile Backer Board, it's important to ensure correct board positioning, accurate cutting, and sizing, and effective edge sealing.
By following these three crucial points, you will achieve a successful installation that enhances the board's thermal insulation and waterproof properties.
Correct Placement of Board
For peak performance and efficient insulation of your underfloor heating system, it is essential to securely fix the ProWarm insulated tile backer board to the subfloor.
Before installation, ensure the subfloor is clean, dry, and level for optimal results.
Arrange the boards in a staggered layout pattern to avoid weak spots and ensure uniform coverage across the surface.
It's important to have a snug and secure fit between the boards to uphold thermal efficiency.
Adhering to the manufacturer's guidelines on board placement and adhesive application is crucial for achieving top performance.
Cutting and Sizing
For precise fitting, use a knife to trim ProWarm insulated tile backer boards to your desired dimensions.
- Accurate cutting: Ensure exact cuts for a flawless fit.
- Effective sizing: Trim efficiently to reduce waste.
- Adhere to instructions: Follow the recommended cutting techniques.
- Select appropriate adhesives: Attach boards securely to subfloors.
- Measure correctly: Take accurate measurements before trimming to prevent mistakes.
Sealing Edges Efficiently
To effectively seal the edges of the ProWarm insulated tile backer board, use ProWarm sealing tape for a waterproof and airtight finish. By applying the sealing tape over the cut edges and joints of the boards, you ensure protection against moisture and improve waterproofing. Proper sealing techniques are crucial for maintaining the integrity and durability of your tile backer board installation. Apply even pressure on the tape to secure a strong bond and effective edge protection. Have a look at the table below for a quick overview of sealing techniques and waterproofing methods:
Benefits of Insulation
Insulation in the ProWarm Insulated Tile Backer Board offers significant benefits for maintaining heat efficiency in your underfloor heating system. When considering the benefits of insulation, keep in mind the following key points:
- Cost Efficiency: By enhancing heat retention, the insulation helps decrease energy consumption, leading to lower heating costs.
- Energy Savings: The board's low thermal conductivity ensures that the heat produced by your underfloor heating system is effectively retained, saving energy.
- Improved Comfort: With better heat retention, the insulation creates a cosy environment in your living spaces.
- Durability: The high compressive strength of the board not only supports your flooring but also contributes to the longevity of your underfloor heating system.
- Versatility: Available in various thicknesses, the board can be customised to meet different insulation needs, ensuring flexibility in your projects.
Experience enhanced warmth, reduced energy bills, and overall comfort with the insulation provided by the ProWarm Insulated Tile Backer Board.
Compatibility With Underfloor Heating
Improve the efficiency of your underfloor heating system with the compatibility offered by ProWarm Insulated Tile Backer Boards. These boards are designed to work harmoniously with underfloor heating systems, ensuring heating efficiency and energy savings. By using ProWarm Insulated Tile Backer Boards in conjunction with under tile heating cables and mats, you optimise the heat distribution throughout your space, leading to increased comfort levels.
Whether you have an electric or water-based underfloor heating system, these boards provide the necessary insulation to maximise the performance of your heating setup. The seamless integration of ProWarm Tile Backer Boards with various types of underfloor heating guarantees consistent heat distribution, creating a cosy environment in both residential and commercial settings.
When installed correctly, these boards contribute significantly to energy efficiency, helping you save on heating costs while maintaining comfortable temperatures throughout your space.
Maintenance Tips
For effective maintenance, regularly check the tile backer board for any signs of damage or deterioration. To ensure the longevity of your Prowarm Insulated Tile Backer Board, follow these maintenance tips:
- Cleaning techniques: Use a mild detergent and water to keep the surface free from dirt and grime.
- Waterproofing methods: Avoid harsh chemicals and abrasive materials that could damage the waterproof surface.
- Preventing damage: Regularly inspect and handle with care to avoid unnecessary wear and tear.
- Extending lifespan: Seal joints and corners properly to preserve the waterproof properties of the board.
- Manufacturer's guidelines: Always adhere to the manufacturer's recommendations for repairs or reinstallation to maintain peak performance.
Comparison With Alternatives
When considering alternatives to the ProWarm Insulated Tile Backer Board, assess the importance and efficiency of each option. One essential aspect to evaluate is the cost-effectiveness of alternatives. While some products may seem cheaper upfront, they might lack the durability and insulation properties that the ProWarm board offers, potentially leading to higher long-term costs. Additionally, think about the environmental impact of the alternatives. Opting for materials that are not eco-friendly could harm the planet in the long run. To help you make an informed decision, here is a comparison table:
Considering both cost-effectiveness and environmental impact when choosing a tile backer board can lead to a more sustainable and efficient tiling project.
Commonly Asked Questions
Is Tile Backer Board a Good Insulator?
When considering a tile backer board, you'll find that it is a good insulator, improving energy efficiency and providing moisture resistance. For advice on installation and comparing costs, look into options that meet your requirements.
Which Tile Backer Board Is the Best?
When selecting the best tile backer board, it's important to think about durability and cost. Make sure to check for handy installation advice and advantages such as waterproofing. Pick a board that suits your requirements and budget, offering both strength and insulation.
Do you need backer board for underfloor heating?
Yes, you need a backer board for underfloor heating. It enhances efficiency by preventing heat loss, ensuring optimal performance. Backer boards offer insulation and improve heat distribution, resulting in energy savings and enhanced comfort in your area.
How thick is tile insulation board?
When selecting tile insulation board, think about the thickness of the insulation for the most effective heat retention. There are different thickness options to choose from to meet different requirements. It is important to grasp the installation process to pick the correct board for your project.
Summary
To summarise, the Prowarm insulated tile backer board provides a dependable and effective solution for insulating your floors.
With straightforward installation, compatibility with underfloor heating systems, and minimal maintenance needs, it offers a cost-efficient choice for enhancing energy efficiency in your home.
In comparison to other options, this backer board excels in terms of its superior performance and longevity.
Enhance your flooring with Prowarm and experience a cosy and energy-efficient atmosphere in your home.
