Resodeck Pro Composite Acoustic Floor Panel - 2400 x 600mm (1.44 Sqm)
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.

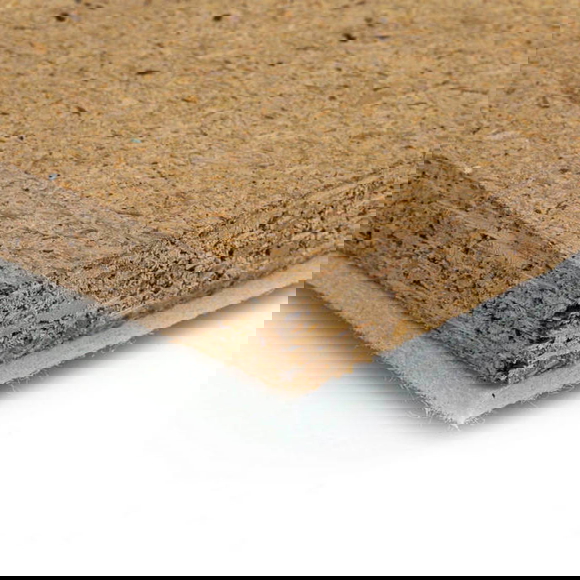

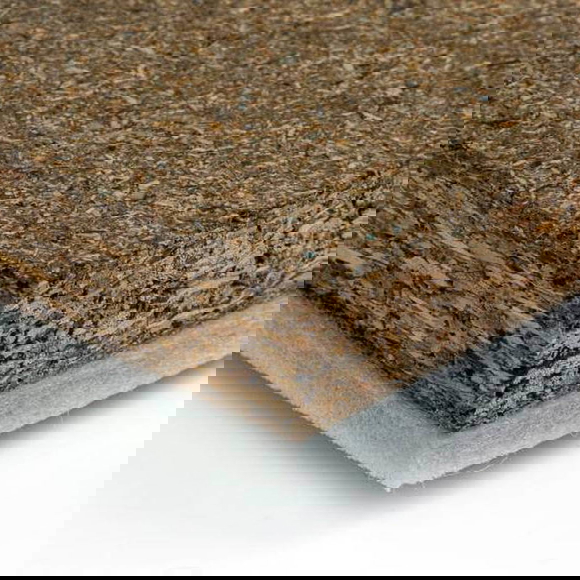

Resodeck Pro Composite Acoustic Floor Panel from Resonate Systems Ltd is the ultimate acoustic flooring solution designed to provide superior impact sound insulation. Engineered with a high-performance P5 chipboard top layer and a ResoFleece resilient layer, this composite acoustic overlay panel is perfectly suited for refurbishment applications in residential properties. Available in three thicknesses—23mm, 28mm, and 32mm—these panels meet stringent building regulations and are ideal for separating floors and final floor coverings.
ResoDeck 23 -
- It is an acoustic overlay panel where a 18mm P5 chipboard bonded to 5mm ResoFleece resilient layer
- Ideal solution suitable for use on timber and concrete separating floors. Can be used on Concrete in-situ floor, Solid timber joisted floor and Profiled metal deck floor.
- Low profile solution, low impact on floor height as it only 23mm in thickness
- Resodeck 23 Datasheet
ResoDeck 28 -
- It is a high performing acoustic overlay panel where a 18mm P5 chipboard bonded to 10mm ResoFleece resilient layer
- Can be used on Concrete in-situ floor, Solid timber joisted floor and Profiled metal deck floor.
- Datasheet Resodeck 28
ResoDeck 32 -
- High performing acoustic overlay panel where a 22mm P5 chipboard bonded to 10mm ResoFleece resilient layer
Key Features:
- Superior Acoustic Insulation: The ResoFleece resilient layer provides exceptional impact sound insulation, reducing noise transmission. The Resofleece resilient layer provides superior impact sound reduction, making it ideal for residential properties that require excellent reduction of foot fall noise. With Resodeck panels, you can achieve improved sound performance of up to 51 dB (airborne) and 21 dB (Impact).
- High-Performance Design: Features a P5 chipboard top layer that is technically bonded for enhanced durability.
- Versatile Application: Suitable for use over timber or concrete sub-decks, making it perfect for various flooring needs.
- Minimal Floor Height Impact: Panels have a minimal impact on overall floor height, ideal for refurbishment projects.
- Ease of Installation: Tongue and groove design ensures a secure bond and easy installation.
- Compliance with Building Regulations: Meets Part E building regulations for acoustic performance in residential properties.
Applications:
ResoDeck acoustic overlay panels are:
- Suitable for use on timber and concrete separating floors.
- Used on Concrete in-situ floor, Solid timber joisted floor and Profiled metal deck floor.
- Resodeck Pro Composite Acoustic Floor Panel comes in Dimensions 1200x600mm
- Available Thickness Options - 23mm, 28mm, 32mm
- Designed for residential properties, these high-performance chip panel-based acoustic floor panels effectively minimize footfall noise.
- Constructed with a P5 chipboard base layer and ResoFleece resilient layer, they effectively dampen noise and vibration.
- Various resilient layer options cater to specific needs and intended applications.
- Tongue and groove edges facilitate quick and straightforward installation.
- Each panel covers an area of 1.44 m², making them suitable for upgrading existing flooring and enhancing home acoustics.
| Product Type | Acoustic Overlay Panels |
| Brand | Resonate |
| Length | 2400mm |
| Width | 600mm |
| Thicknesses Available | 23mm, 28mm, 32mm |
| Coverage | 1.44 sqm |
| Top Layer | High-performance P5 chipboard |
| Resilient (bottom) Layer | ResoFleece for superior impact sound insulation |
| Installation Method | Tongue and groove design |
| Application | Ideal for refurbishment applications in residential properties |
| Delivery Terms | |
|---|---|
| Pallet Charges apply to deliveries. £65 +VAT per pallet |
