Resonate Gypdeck 18 - Dry Screed Acoustic Floor Panel- 1200 x 600x 18mm (0.72 Sqm)

Rated 5.0 by 1 Happy Customer
(incl VAT) £23.35
(excl VAT) £19.46
Send Me a Quote
Every Order Plants 1 Tree and Protects 10 Existing Ones
Est. Delivery: 3-5 Working Days
Calculate Estimate Shipping Charges

Request a Quote

Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.

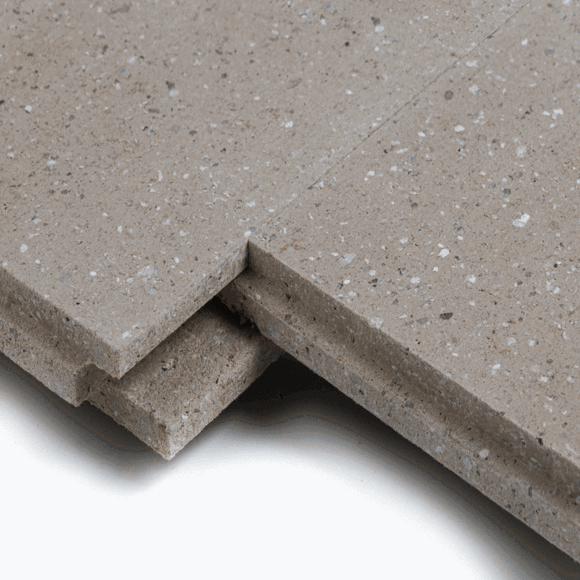

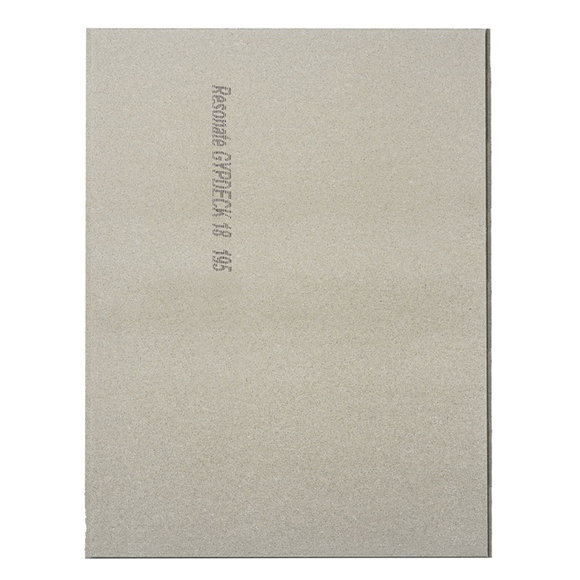

Resonate Gypdeck 18 is a dry floor screed panel. As a dry screed system they offer significant time saving benefits over wet screed flooring solutions.

Crafted with precision, with a unique combination of Restherm insulation boards and Reso fleece,  Resonate Gypdeck 18 forms a gypsum fire baords. The pre-grooved Resotherm insulation boards is suitable for all types of underfloor heating pipes (12-16mm). The 10mm Reso Fleece layer is a high performance resilient layer technically bonded below the resotherm insulation boards

Due to thier low thermal resistance, these dry screed fllor panels are extermely effective when used in underfloor heating applications.

Key Features:

  • Innovative Construction: Theese Gypsum fire baords are made using Restherm insulation boards and Reso fleece. The pre-grooved Resotherm insulation boards is suitable for all types of underfloor heating pipes (12-16mm). The 10mm Reso Fleece layer is a high performance resilient layer technically bonded below the resotherm insulation boards
  • Acoustic Excellence: Provides complete acoustic control, minimizing impact noise levls by up to 47dB andairborne noise level by 51dB, enabling a quiet living environment.

  • Efficient Underfloor Heating: Optimises heat distribution across floors, enhancing comfort and energy efficiency. Thier low thermal resistance allows for optimal heat distibution across the floor surface

  • Versatile Compatibility: High density boards accept ceramic and porcelain floors directly without a decoupling mat. they are widely used in varous construction projects

  • Easy Installation: Designed for straightforward installation, these screed panels come with T&G profiling on all 4 sides, saving time and labour costs during construction or renovation.

  • Advanced Dry Screed Technology: Combines advanced materials to provide a reliable and long-lasting flooring solution





  • Each screed panel is 1200mm long, 600mm wide and 18mm thick.
  • T&G edge profiling on all 4 sides for easy installations
  • Can be used with underfloor heating
  • This gypsum fire board offers excellent airborne and impact sound insulation.
  • Made with a combination of Resotherm insulation boards and Resoflece to form a  complete acoustic and underfloor heating system.
Insulation Type  Acoustic Dry Screed Board
Brand  Resonate
Material  Gypsum
Product Code  GYPDECK 18
Length  1200mm
Width  600mm
Thickness  18mm
Coverage  0.72 Sqm
Unit  Board
Sheets Per Pallet  50
Thermal conductivity  0.038  W/( m*K )
Fire Classification   Non-Combustible
Density   Approx. 60 kg/m3
Acoustic Performance

 Airbourne Sound Performace - DnT,w + Ctr - 51 dB

 Impact Sound Performance LnT,W - 41 dB

Compressive Strength  200kPa
Application  Floor Insulation - Concrete And Suspended Floors
