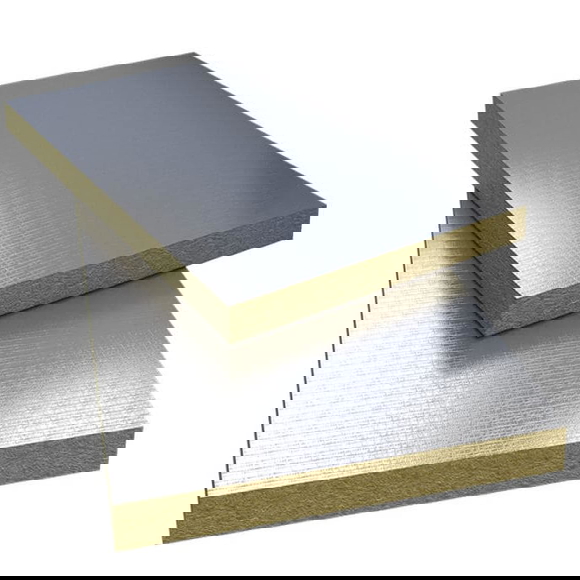

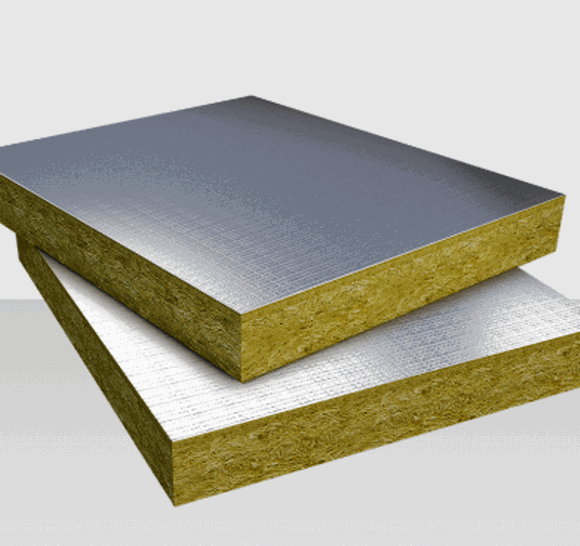

Rockwool DuoDuct Slab - Duct Insulation Board - 2000 x 1200 x 50mm (24 Boards / Pallet)
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Please note: The product has an extensive lead time of 3-5 weeks
It can be difficult to find the right insulating material for external ductwork since many factors like weather etc must be considered before choosing the perfect duct insulation. It is precisely why Rockwool made these dual-density duct boards - to insulate external duct systems carrying hot or cold air. Here are some other factors that make duo duct boards unique:
Make: Duct insulation is made using dual-density technology with mineral wool with foil-facings on both sides. Rockwool DuoDuct Slab delivers maximum thermal performance without compromising on fire safety.
Durability and strength: Enhanced impact resistance provided by Dual Density technology, makes the duct boards ideal for damage-prone or external applications as they provide greater impact resistance. They last through the lifetime of a building
Fire resistance: Duct boards have the highest possible fire classification. They are rated A+ by Euroclass. It is fire-resistant duct insulation.
Thermal performance: Mineral wool duct insulation has a low thermal conductivity that helps protect the external ductwork from heat loss. Duct boards can be used in applications with service temperatures as high as 230°C in accordance with EN 14706: 2012.
Resistance to water: Duct board has foil facings which not only improve the thermal performance of the board but also provide resistance to water ingress. Duct insulation has a water vapour resistance of approximately 1000 MNs/g.
Product Specifications:
- Length: 2m
- Width: 1.2m
- Thickness: 50mm.
- Unit: Board
Key Features:
- Duct insulation has a Euroclass A1 reaction to fire. Thet are non-combustible.
- Rockwool duct board has dual-density which enables greater impact resistance.
- Foil-faced insulation protects ductwork against moisture.
- They soundproof ductwork, making the workplace more efficient and improving indoor air quality.
- Rockwool Insulation board is ideal to insulate rectangular and square-shaped ductwork.
- Duct Insulation board protect ductwork against moisture-related issues, condensation and sweating.
- Installing Rockwool insulation is an easy and quick process. The material can be cut easily using a sharp utility knife.
- Rockwool duct boards do not support the growth of fungi, moulds or any microbes.
Applications:
Rockwool insulation is used to insulate:
- Rectangular and square ductwork
- Hot air, cold air and dual-purpose duct systems
- They are suitable for use with self-adhered external duct membranes.
- Duct boards are especially beneficial in ducts where the particle solids, fluids or gasses move at high velocities.
Standards and Approvals:
- Rockwool DuoDuct has been CE marked in accordance with BS EN 14303.
- Duct insulation can be used to satisfy the requirements of BS 5422 ‘Method for specifying thermal insulating materials.
Environment:
- Duct insulation boards are made with responsibly sourced, renewable and naturally occurring resources.
- They do not contain any ozone depletion potential (ODP) or global warming potential (GWP). Duct insulation is approximately 97% recyclable.

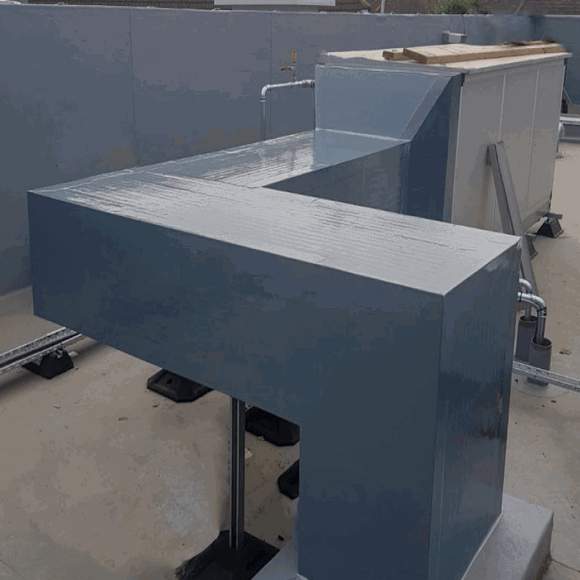

- Duct insulation boards from Rockwool for external duct insulation.
- Each duct baord is 2m long, 1.2m wide and 50mm thick. 24 Boards per pallet
- Featuring dual-density technology for enhanced impact resistance
- Rockwool duct boards are compatible with common external finishes.
- Designed to give exceptional thermal insulation and soundproofing to ductwork.
- DuoDuct slabs by Rockwool also give superior fire resistance.
- Duct insulation has foil facings on both sides for continuous vapour protection.
- Insulation boards can be used in temperatures as high as 230*C
| Insulation Type | Fire Protection Duct Insulation Board |
| Brand | Rockwool |
| Product Code | DuoDuct |
| Length | 2000mm |
| Width | 1200mm |
| Thickness Available | 50mm |
| Coverage Per Board | 2.88 sqm |
| Peices Per Pallet | 24 |
| Coverage Per Pallet | 69.12 Sqm |
| Facings | Aluminium foil-faced insulation |
| Material | Mineral Wool |
| Fire Classification | A1 Euroclass |
| Application | Duct Insulation |
| Lead Time | 3-5 weeks |
| Free Collections Available |
|---|
| Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245 |
| Free pick-up locations include - Glasgow, Birmingham, Chorley, Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds |
| Delivery Terms | |
|---|---|
| Order Value (Excluding VAT) | Delivery Condition |
| No minimum order |
Free Delivery within 25 Miles of Erdington, Birmingham |
| Orders above £125 | Free Delivery within 25 miles of our warehouses in Glasgow, Birmingham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds. |
| Orders above £370 | Free Delivery across mainland GB |
| Delivery Charges | Carriage costs start from £19.50, Ex.VAT for postcodes that do not fall under the free delivery criteria |
Returns And Refunds
- You are free to cancel the order anytime before we send you an order confirmation email with the estimated delivery date.
- Once confirmed and delivered, The product is NON-RETURNABLE. No Returns accepted
- We urge you to check the insulation for any damage before the driver returns. If the product you received is damaged, please contact us immediately.
- For more information, please refer to our Return Policy
You May Also Like
Our Customers Include
When considering duct insulation, Rockwool DuoDuct Slab excels. With excellent thermal and acoustic properties, Euroclass A1 fire rating, and noise reduction capabilities, it's a superb choice. Make sure to align it properly with the ductwork, use appropriate adhesives, and inspect regularly for optimal results. The Dual-Density technology improves impact resistance, strength, and quick installation. It can handle high temperatures and enhance indoor comfort. Perfect for commercial buildings, industrial facilities, HVAC systems, schools, and healthcare facilities. Learn more about why Rockwool DuoDuct Slab is a wise choice for your insulation needs.
Key Takeaways
- Exceptional thermal and acoustic properties for efficient insulation.
- Euroclass A1 fire rating ensures excellent fire safety standards.
- Dual-Density technology enhances impact resistance and strength.
- Ideal for commercial, industrial, educational, and healthcare duct applications.
- Supports HVAC efficiency and noise reduction for a comfortable environment.
DuoDuct Key Features
When considering duct insulation options, Rockwool DuoDuct Slab stands out for its exceptional thermal and acoustic properties. The DuoDuct Slab offers impressive thermal efficiency, keeping your ductwork well-insulated and preventing energy loss, which can lead to significant savings on your utility bills.
In terms of fire safety, this insulation board is excellent with its non-combustible nature and Euroclass A1 fire rating, providing you with peace of mind regarding building safety. Additionally, the DuoDuct Slab contributes to noise reduction by absorbing sound effectively, creating a quieter and more comfortable environment for you to enjoy.
Its environmental impact is notable as it supports the reduction of noise pollution, making it a responsible choice for eco-conscious individuals. Overall, Rockwool DuoDuct Slab not only improves the efficiency and safety of your duct systems but also promotes a more pleasant and sustainable living environment.

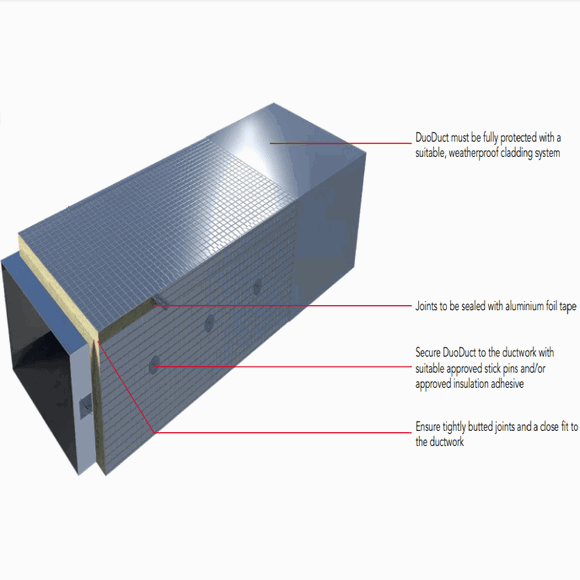

Rockwool Duo Duct Installation Guidelines
For efficient installation of Rockwool DuoDuct Slab, follow these guidelines:
- Installation Techniques: When installing Rockwool DuoDuct Slab, guarantee proper alignment with the ductwork to maximize thermal performance. Use suitable adhesives or mechanical fasteners to secure the insulation in place effectively.
- Cutting Tips: To achieve a precise fit, measure and mark the insulation slab accurately before cutting. Use a sharp utility knife or insulation saw to cut through the material smoothly, avoiding jagged edges that could impact the insulation's performance.
- Maintenance Requirements: Regularly inspect the installed Rockwool DuoDuct Slab for any signs of damage or displacement. Address any issues promptly to maintain the insulation's effectiveness over time and ensure top-notch thermal and acoustic performance.
Following these installation techniques, cutting tips, and maintenance requirements won't only boost the thermal performance of the ductwork but also contribute to a cost-effective and durable insulation solution compared to traditional methods.
Benefits of Dual-Density Technology
Dual-Density technology in Rockwool DuoDuct Slab boosts impact resistance, ensuring durability and strength for duct insulation applications. This innovative feature amplifies the board's ability to withstand external forces, maintaining its integrity over time.
The increased impact resistance not only contributes to the longevity of the insulation but also supports quick and efficient installation processes, saving you time and effort.
Additionally, the dual-density construction of Rockwool DuoDuct Slab provides a robust outer layer capable of withstanding high service temperatures up to 230°C, ensuring thermal efficiency and energy savings for your duct systems.
The enhanced impact resistance of this technology extends its benefits to acoustic performance, helping reduce environmental noise levels and creating a more comfortable indoor environment.
With Rockwool DuoDuct Slab, you can trust in its durability, strength, and overall performance in various duct insulation applications.
Typical Application Areas
Considering different installation scenarios, the Rockwool DuoDuct Slab insulation board proves to be a versatile choice for a range of ductwork applications.
- Commercial Buildings: Rockwool DuoDuct Slab is well-suited for insulating duct systems in bustling commercial structures, ensuring energy efficiency and proper climate control.
- Industrial Facilities: In industrial settings, where ductwork is essential for ventilation and air quality, this insulation board excels in maintaining temperature consistency and reducing noise levels.
- HVAC Systems: For heating, ventilation, and air conditioning systems, Rockwool DuoDuct Slab offers reliable thermal insulation, enhancing the overall performance and efficiency of HVAC setups.
This high-performance insulation board is also ideal for use in educational institutions and healthcare facilities, where maintaining ideal indoor air quality and temperature control is essential for the comfort and well-being of occupants.
Conclusion
To sum up, the Rockwool DuoDuct Slab - Duct Insulation Board is a top choice for meeting your duct insulation needs.
With its impressive thermal and acoustic insulation properties, durability, and compatibility with external duct membranes, this product is a reliable solution for enhancing building safety and efficiency.
Experience the benefits of dual-density technology and noise reduction, and optimize your duct system for maximum effectiveness with this high-quality insulation board.
