Self adhesive Ductwork Identification Triangles
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Duct Insulation protects ductwork from losing heat and saves energy. However, when ductwork is insulated with ductwrap or duct slabs, they need to be labelled properly. The direction of the airflow or the type of gas/air passing through the ducts should be labelled correctly. Self-adhesive ductwork identification triangles are used to do just that.
Buy Insulation Online stores all variants of duct identification triangles by Pipemark. Duct identification triangles can be used to identify the type of air or gas flowing within an air handling system such as air conditioning or ventilation and conform to British standards and regulating bodies, this includes colour and text.
All Triangles are available in plain & text versions to indicate gas type to avoid confusion. Proper labelling of the ductwork ensures workplace safety and helps keep accidents to a bare minimum. Ductwork triangles meet the requirements for the Identification of Ventilation Air Conditioning Systems as recommended by the Heating and Ventilation Contractors Association.
Product Specification:

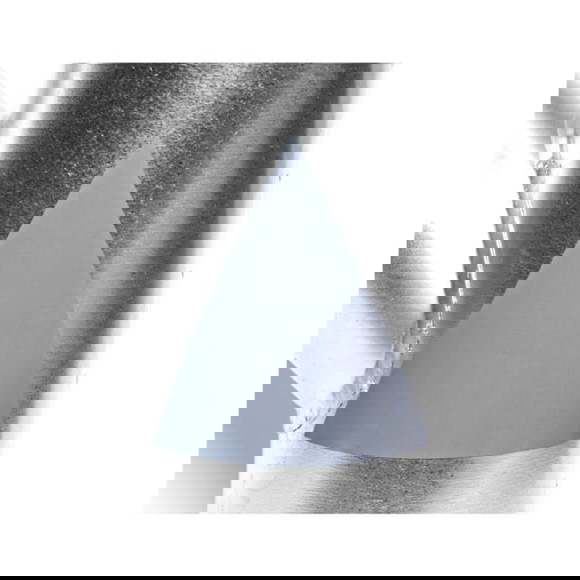

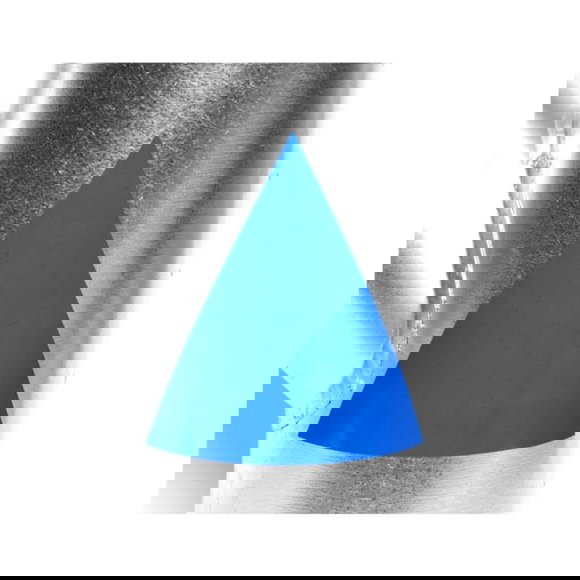

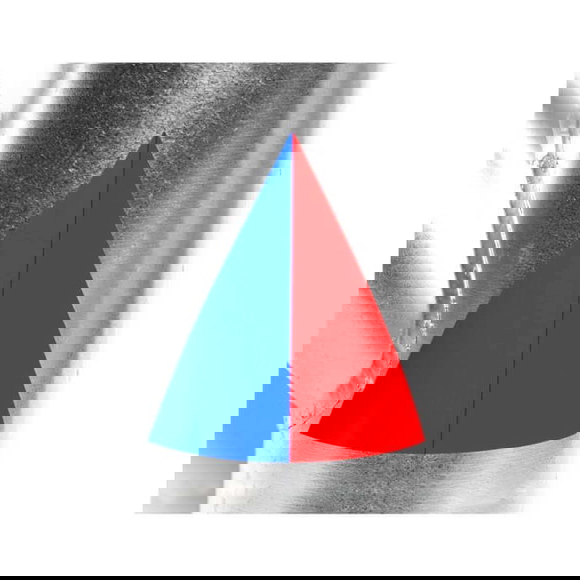

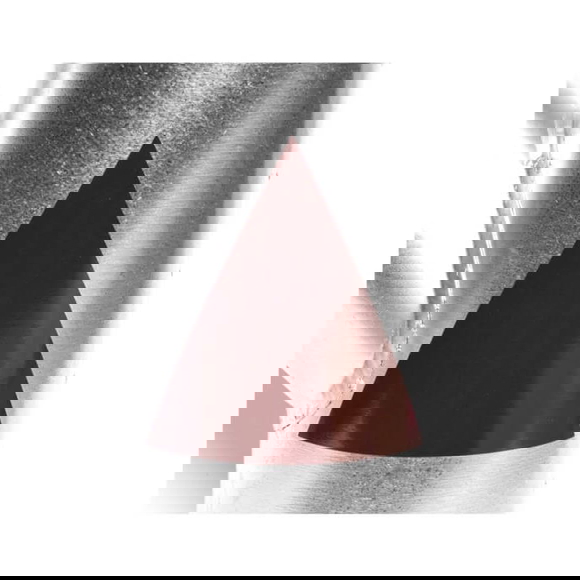

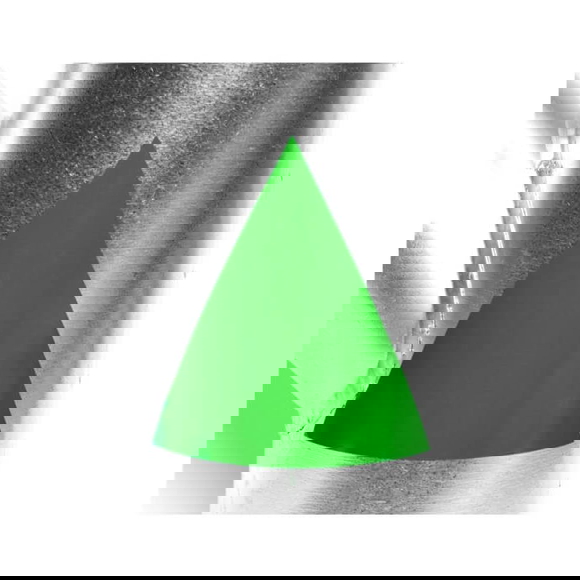

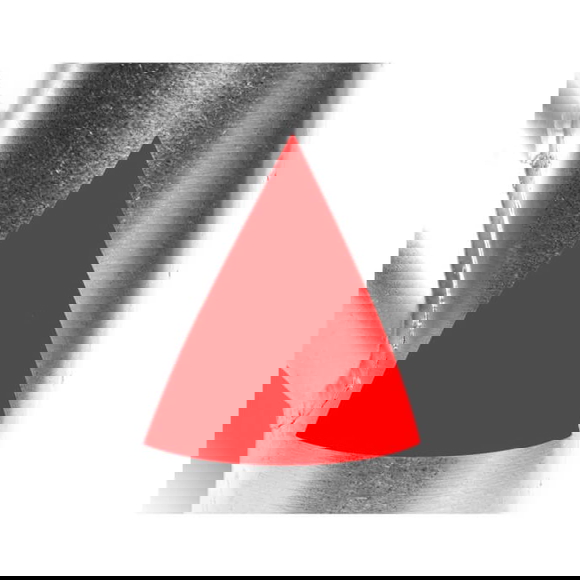

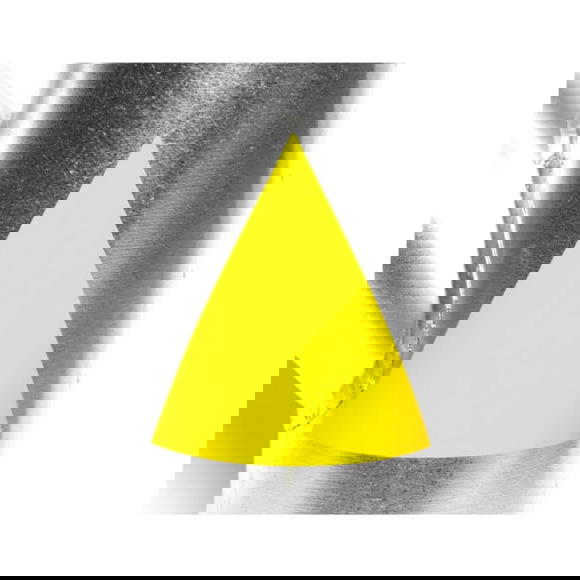

- Red (Hot Air), Red & Blue (Conditioned Air), Grey (Extract Air) and Yellow (Warm Air), Green (Fresh Air), Brown (Foul Air), Blue(Cold Air), Yellow/Black (Hazardous Air).
- It is supplied with 5 per sheet and 50 per box.
- Thickness = 64 microns (0.064mm).
Key Features & Benefits
- Premium quality, self-adhesive vinyl & easy application.
- Complies with HVCA DW/144 requirements.
- Duct triangles are supplied as 5 per sheet and 50 per box.
- Duct Identification Triangles are mostly used in the air conditioning/plumbing trades to identify the contents/purpose of ducts/pipework.
- It has a self-adhesive backing. 150mm or approximately 6" high. 150mm or approximately 6" wide.
- Proper labelling of the ductwork using duct id improves workplace safety and reduces accidents.
- Duct Identification triangles have coloured coded triangles for ductwork applications.
- Durable, identification triangle for duct identification.
- Product size : 150mm x 150mm x 0.064mm
- Duct triangles are supplied with 5 per sheet and 50 per box.
- When labelled properly, self-adhesive duct triangles help identify the ductwork easily.
- Made in the UK.
- Conforms to required British standards and regulating bodies
- It improves workplace safety
| Brand | Pipemark |
| Available in | Box of 50, sheets of 5 |
| Types Available |
Red (Hot Air), Red & Blue (Conditioned Air), Grey (Extract Air) and Yellow (Warm Air), Green (Fresh Air), Brown (Foul Air), Blue(Cold Air), Yellow/Black (Hazardous Air). |
| Application | Self-adhesive Duct Triangles |
| Thickness | 0.0644mm |
| Height | 150mm |
| Free Collections Available |
|---|
| Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245 |
| Free pick-up locations include - Glasgow, Birmingham, Chorley, Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds |
| Delivery Terms | |
|---|---|
| Order Value (Excluding VAT) | Delivery Condition |
| No minimum order |
Free Delivery within 25 Miles of Erdington, Birmingham |
| Orders above £125 | Free Delivery within 25 miles of our warehouses in Glasgow, Birmingham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds. |
| Orders above £370 | Free Delivery across mainland GB |
| Delivery Charges | Carriage costs start from £19.50, Ex.VAT for postcodes that do not fall under the free delivery criteria |
Returns/Refunds And Cancellations:
You can cancel your order and get a full refund anytime before we confirm your order via email.
Orders cancelled after the order confirmation is sent, may attract a restocking fee.
If you want to return insulation that was ordered in excess or not of use anymore, you can return them within 3 weeks from the date of receipt, provided they are unused and in a resalable condition. Please contact us via email and we will assist you accordingly.
If the product is damaged, then you are within your rights to claim an exchange or a refund. For more information, please refer to our delivery information page.
For more information on returns and deliveries, please refer to our delivery information page.
You May Also Like
Customer Reviews
“ I always order from them when it comes to ductwork labeling. Very affordable price and great custome...”Gary D.
Verified Buyer
“ Very Affordable price. Shipping was fast too. Highly recommended.”Jaxon B.
Verified Buyer
“ Good pricing on duct Ids. Thank you very much”Riley L.
Verified Buyer
Our Customers Include
Improve the efficiency and safety of your air system with self-adhesive ductwork identification triangles. Make marking easier and ensure compliance effortlessly. Equilateral 150mm triangles clearly convey important air type and flow information. Prepare the surface, align accurately, and press firmly for secure placement. High-quality vinyl can withstand water, oil, and chemicals for long-lasting performance. Grey, red, and blue triangles are available for different ductwork types. Choose the standard 150mm size or customise to suit your requirements. Enhance workplace safety and adhere to British standards. Discover more about the benefits of ductwork labels and how to enhance air system safety.
Key Points
- Simplify identification in air handling systems.
- Ensure compliance with safety standards.
- Provide clear indicators for air type and flow.
- Easy application process for accurate marking.
- Durable vinyl material withstands environmental conditions.
Importance of Self-Adhesive Ductwork Triangles
Highlighting the significance of using self-adhesive ductwork triangles simplifies the identification process in air handling systems. These triangles play a vital role in ensuring that ductwork applications comply with regulations and safety standards. By utilising equilateral triangles measuring 150mm along each side, they effectively communicate essential information about air type and flow direction within the system. The importance of these triangles lies in their ability to provide clear and easily recognizable indicators, allowing for efficient maintenance and servicing of air handling systems. Their applications extend to various industries where ductwork installations are prevalent, offering a simple yet effective solution to marking ducts accurately. Constructed from high-quality vinyl with a durable permanent acrylic adhesive, these triangles are designed to withstand the rigours of different environments.
Advantages of Duct Identification Labels
Improving workplace safety and compliance, duct identification labels offer clear indicators of air type and flow direction within air handling systems. When it comes to the benefits of duct identification labels, consider the following:
- Increased Visibility: With brightly coloured and clearly labelled ductwork, it becomes easier for everyone in the workplace to identify different air types, ensuring that the right precautions are taken.
- Easy Recognition: By having duct identification labels prominently displayed, there's no confusion about the direction of air flow, reducing the risk of errors during maintenance or repairs.
- Augmented Safety: Properly labelled ductwork enhances overall workplace safety by providing a visual guide that helps employees navigate around the air handling systems with confidence.
These benefits not only contribute to a safer working environment but also facilitate compliance with British standards, promoting a sense of security and belonging among all those involved in the facility.
How to Apply Ductwork Triangles
To ensure the effective use of ductwork triangles, it is important to thoroughly clean the surface of the ductwork before proceeding to attach the self-adhesive triangles.
Remove the backing from the triangle to expose the adhesive side for easy application. Align the triangle carefully on the surface of the ductwork to ensure correct placement and alignment. Proper alignment is crucial for making the identification triangles visible and easily readable.
Apply firm pressure to the triangle to create a strong bond with the ductwork. The adhesive strength is essential for keeping the triangles securely in place. By pressing the triangle firmly onto the cleaned surface, you can guarantee that it remains in position for accurate identification.
Maintaining the visibility and accuracy of the attached triangles by securely fixing them to the ductwork is important. Following these steps will enable you to apply the ductwork triangles effectively, ensuring they fulfil their purpose of clear identification.
Materials and Durability of Identification Triangles
For optimal performance, it is important to consider the materials and durability of the identification triangles used in your ductwork. These triangles are specifically designed to withstand different environmental conditions, ensuring a long-lasting performance.
- The self-adhesive vinyl material offers excellent adhesion properties, keeping the triangles securely attached to the ductwork surfaces.
- These triangles demonstrate strong resistance to water, oil, and chemicals, making them dependable for various environments.
- Compliant with DW144 regulations, these triangles not only provide durability but also adhere to industry standards for identifying air type and flow direction within air handling systems.
Customisation options for ductwork labels
When customising ductwork labels, you can choose from various colour options to indicate different types of ductwork. Additionally, there are size variations available to suit your specific needs.
These customisation options make it easier to identify the purpose and direction of airflow in your duct system.
Colour Options for Labels
Colour customisation options for ductwork labels offer a practical solution for easily identifying different air types and flow directions within air handling systems. When considering colour selection, bear in mind the visual impact it can have on your workplace.
Here are some key points to consider when choosing colours for your ductwork labels:
- Grey: Ideal for general air ducts
- Red: Indicates fire-rated ductwork
- Blue: Represents cold air ducts
Size options available
To optimise the range of size variations available for ductwork labels, you should start by considering the standard 150mm equilateral triangles as a base for customisation options. If you have specific requirements for ductwork labelling, you can request custom size options to ensure a perfect fit for your needs.
In addition to different size options, you can choose from a range of colour options including Grey, Red, Blue, and Yellow to help identify various duct types quickly and efficiently. These self-adhesive triangles are made from high-quality vinyl with a permanent acrylic adhesive, offering durability and reliability in air handling systems.
Compliance Standards for Ductwork Identification
Adhering to the DW144 regulations for air handling systems is essential when it comes to compliance standards for ductwork identification. Ensuring that your ductwork identification triangles meet these regulatory requirements is vital for maintaining safety and efficiency in various industry applications. Here are three key points to consider when it comes to compliance standards:
- Colour Coding: The triangles are colour-coded to indicate the type of air and the direction of airflow within the ductwork system. This colour scheme helps workers easily identify different aspects of the air handling system, contributing to a safer work environment.
- Material Quality: The triangles are crafted from high-quality self-adhesive vinyl with a permanent acrylic adhesive. This durable material ensures that the identification triangles stay in place, even in demanding industrial settings.
- Standard Measurements: Typically, these triangles are equilateral, measuring 150mm along each side. This standardised size makes them easily recognisable and ensures consistency in their application across different ductwork systems.
Case Studies: Real-Life Applications of Duct Triangles
In real-world situations, the practical use of duct triangles demonstrates their effectiveness in improving system transparency and safety. Case studies show how these straightforward yet efficient tools can have a significant impact in various contexts.
For example, in a large industrial facility, duct triangles were employed to clearly label different air types and flow directions, helping maintenance staff to swiftly and accurately identify the correct ductwork. This not only streamlined maintenance procedures but also reduced the chance of mistakes or accidents caused by confusion.
Similarly, in a commercial building, the colour-coded triangles enhanced workplace safety by clearly showing the airflow paths, making it easy for employees and visitors to spot potential dangers. These practical instances demonstrate how duct triangles, with their compliance with regulations and user-friendly design, play a vital role in improving overall safety and efficiency in various environments.
Frequently Asked Questions
What are the dimensions for the duct ID?
To identify ductwork, you use triangles as part of a labelling system. These triangles serve an identification purpose, helping you determine air type and flow direction in air handling systems. They boost safety and efficiency.
What Colour is the Return Air Duct?
Your return air duct is usually labelled with GreyReturn duct identification triangles. These triangles are crucial for identifying airflow direction in HVAC systems. They assist in maintaining system balance and efficiency.
Final thoughts
To summarise, self-adhesive ductwork identification triangles are a practical solution for labelling and organising duct systems. With easy application and durable materials, these labels offer benefits such as efficiency and compliance with industry standards. Customisation options allow for tailored solutions to suit specific needs.
Real-life case studies demonstrate the effectiveness of duct triangles in various applications. Overall, investing in self-adhesive ductwork identification triangles can streamline maintenance and improve the overall functionality of HVAC systems.
