Spreader Plates For Underfloor Heating - 390 x 1000mm
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.

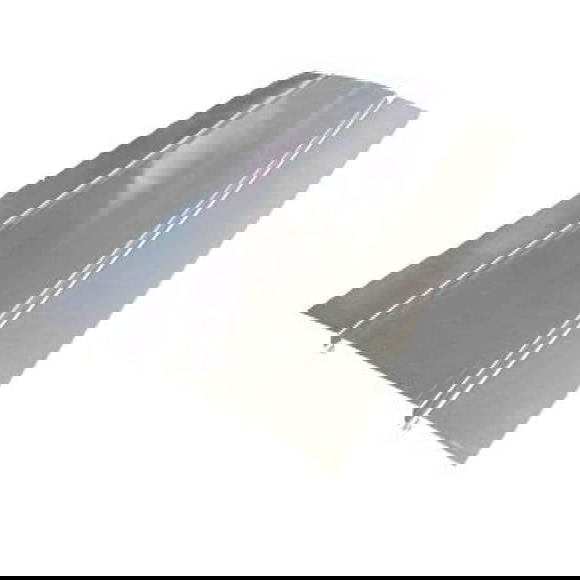

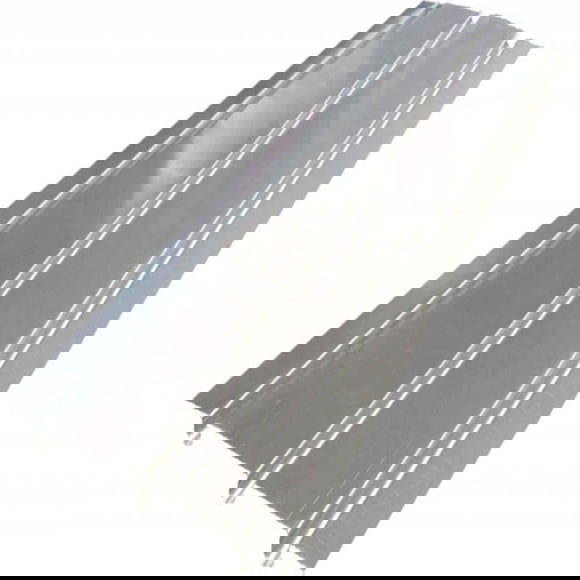

Aluminium spreader plates by Prowarm are highly reflective pre-grooved panels that help secure pipework for underfloor heating applications. These aluminium spreader plates perfectly fit between 390-400mm wide floor joists. We supply spreader plates with 2 or 3 grooves for the pipework.

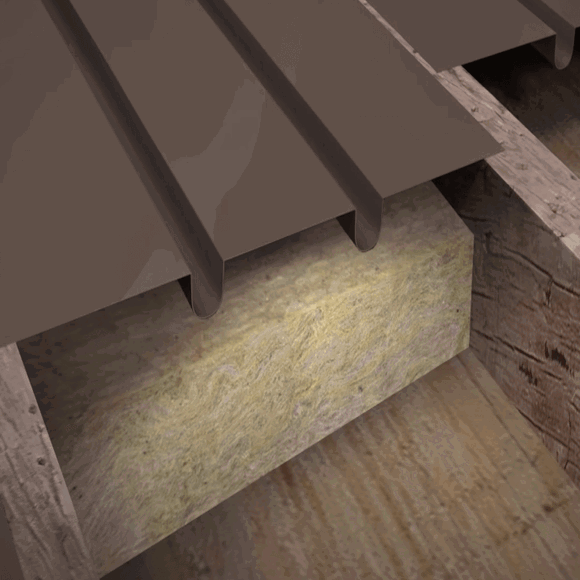

Spreader plates are laid across the floor joists and secured using screws or staples. If your joist centres are not 400mm wide, battens can be used at right angles to the joist provided your floor joists have sufficient height.

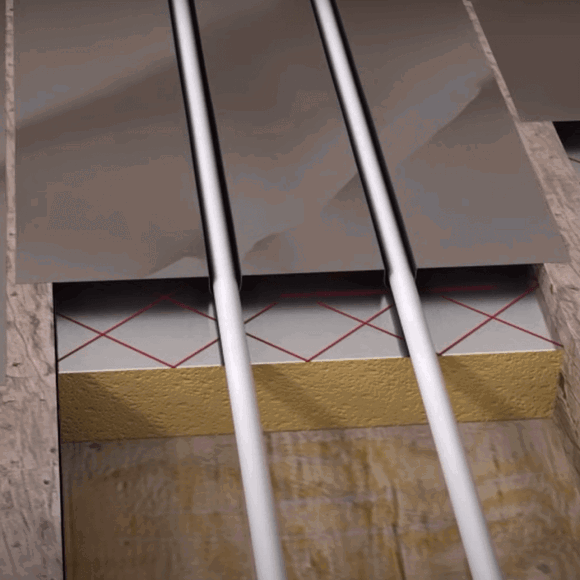

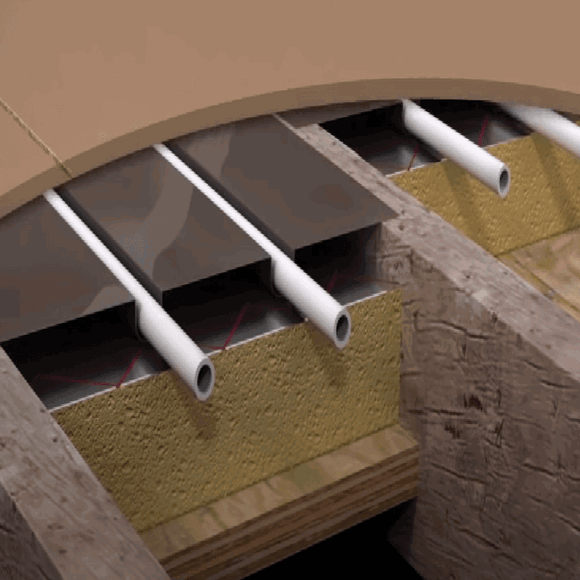

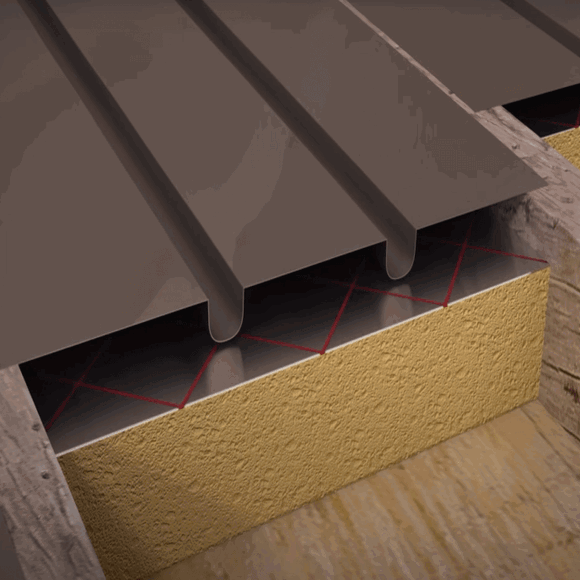

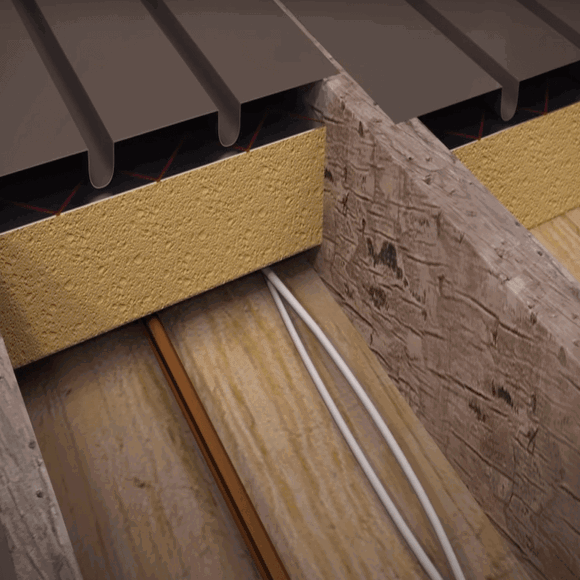

Spreader plates are placed above insulation with the pipe grooves beneath the surface of the spreader plates and joists. Ideally, you can use a 50mm foil-faced insulation board like PIR or a 150mm mineral wool insulation slab beneath the spreader plates to ensure optimum efficiency. This way you ensure that the heat generated from the underfloor heating does not escape through the floor below.
Key Features:
- Spreader plates reflect heat generated towards the floor.
- Helps secure underfloor heating pipes between timber joists.
- Pre-grooved spreader plates for easy installation of pipework.
- Suitable to secure 15mm and 16mm pipework.
- Perfectly fits between floor joists.
- Spreader plates have multiple grooves to ensure multiple pipe runs
Installation:
Spreader plates and quite easy to install. For a complete installation guide, please refer to the installation video and manual attached.
- Product Size: 390 x 1000mm
- Number of Grooves: 2 or 3
- Reflective aluminium spreader plates for underfloor heating applications
- Pre-grooved. Helps secure pipework between joists and battens.
- Suitable for 15mm and 16mm pipework
- Aluminium spreader plates reflect heat generated from underfloor heating towards the floor.
| Insulation Type | Spreader Plates for Underfloor Heating |
| Brand | Prowarm |
| Dimensions | 390 x 1000 x 0.3mm |
| Number of Grooves | 2 or 3 |
| Groove Depth | 16mm |
| Material | Aluminium |
| Suitable For | 15mm and 16mm Pipework |
| Pipe Spacings | 200mm |
| Order Value | Delivery Charges (Excluding VAT) |
|---|---|
| Any Order Value | £4.2 anywhere in the Mainland UK |
Returns and Cancellations:
- You can cancel your order and get a full refund before we confirm your order via email.
- Orders cancelled after the email confirmation is sent, may attract a restocking fee.
- You are welcome to return the products ordered in excess/no longer required, via post or couriers, provided they are in the original packaging and in a resalable condition within 14 days of delivery. Return requests made after 14 days will not be entertained.
- If wrong products were delivered or delivered items are faulty, please email us and we will assist you accordingly.
For more information, please refer to our Delivery information page
You May Also Like
Customer Reviews
“ Genuine quality and highly durable. The inbuilt grove are well designed and helps to hold the pipes ...”Harely
Verified Buyer
“ Gonna rate it 5 on 5 because of the inbuilt groove well design. It helps to secure the pipework in ...”Harley
Verified Buyer
“ Delivered quickly and is very easy to use. Just wanna say it's true to money and is a genuine produc...”Sebastian
Verified Buyer
“ The best thing I like about this is the inbuilt grooves which help to secure the pipework firmly in ...”Tommy
Verified Buyer
“ The pre-made grooves secured the pipes with ease in the correct place. Highly recommendable and valu...”Blake
Verified Buyer
“ as described delivered quickly without any damages. ”Finn
Verified Buyer
Our Customers Include
Invest in 390x1000mm spreader plates for underfloor heating. They maximize warmth efficiently with easy installation. These plates guarantee even heat distribution and energy savings. Use them with 15mm or 16mm Pex-Al-HDPE pipes. Benefit from the cost-effective aluminum construction. Improve your home's comfort while saving on energy costs.
Key Takeaways
- Aluminum construction for efficient heat distribution.
- Easy installation on 400mm joist centers.
- Compatible with 15mm or 16mm pipes.
- Ensures consistent warmth across floors.
- Cost-effective energy savings with even heat distribution.
Key Features of Spreader Plates
When considering the key features of spreader plates for underfloor heating, focus on their high-grade aluminum construction for effective heat distribution. These plates are specifically designed to guarantee that warmth is evenly spread throughout your living space, providing a cozy environment for you to enjoy.
One of the key benefits of these plates is their cost-effectiveness. By effectively distributing heat, they help you save energy and reduce heating costs, making them a practical choice for your underfloor heating system.
Additionally, their easy installation on wooden joists with 400mm centers using a hand stapler adds to their appeal, allowing you to enjoy the benefits of underfloor heating without the hassle of complicated setup procedures.
With double preformed grooves for 15mm or 16mm Pex-Al-HDPE pipes at 200mm centers, these plates offer convenience and efficiency in maintaining a comfortable temperature in your home.
Choose spreader plates for underfloor heating to experience the warmth and comfort you desire while also being mindful of cost savings.
Installation Instructions for Underfloor Heating
Looking to efficiently install underfloor heating? The ProWarm(tm) Aluminium Spreader Plates are your go-to solution for a hassle-free installation. Designed for traditional joists with 400mm centers, these plates offer a seamless fit into your existing structural layout, ensuring compatibility and ease of setup. With double preformed grooves for pipes and secure Omega shape grooves, these plates provide a sturdy base for your underfloor heating system, promoting energy efficiency and cost savings.
Covering 1/2 m² of heated floor area, the ProWarm(tm) Spreader Plates facilitate excellent heat transfer and distribution throughout the room, guaranteeing a cozy and comfortable environment. Whether you choose to install them on top of floor joists or battens, these plates offer versatility for suspended floor systems, making them a versatile and reliable choice for your underfloor heating needs. Enjoy the benefits of efficient heating performance while saving on costs with these easy-to-install spreader plates.
Benefits of Using 390x1000mm Spreader Plates
When considering the benefits of using 390x1000mm spreader plates for underfloor heating, you'll find they offer efficient heat distribution, ensuring every corner of your space receives consistent warmth.
The easy installation process of these plates, thanks to their preformed channels and lightweight design, makes them a practical choice for enhancing your underfloor heating system.
Efficient Heat Distribution
To achieve ideal heat distribution in your underfloor heating system, consider the benefits of using the 390x1000mm ProWarm(tm) Aluminium Spreader Plates. These plates guarantee even heat distribution, promoting heat retention and leading to energy savings.
Specifically designed for wooden joists with 400mm centers, they boost system efficiency with a heat output of 77W/m2 and pipe spacings of 200mm. Made of high-quality aluminum, these lightweight plates are compatible with 15mm or 16mm Pex-Al-HDPE pipes for peak performance.
Installing these spreader plates is simple using a hand stapler, providing a reliable solution for underfloor heating systems in various rooms. Enjoy consistent and comfortable warmth throughout your space with these efficient spreader plates.
Easy Installation Process
Installing the 390x1000mm ProWarm(tm) Aluminium Spreader Plates is a breeze with their compatibility with a hand stapler for quick and straightforward setup. Here are some installation tips to make the process even smoother.
Make sure the plates are positioned correctly over the joists with 400mm centers. Use the preformed channels at 200mm pipe centers for even heat distribution.
The lightweight design of these plates allows for easy handling during installation. Once in place, they improve heat retention, ensuring the room stays consistently warm.
These plates work seamlessly with 15mm or 16mm Pex-Al-HDPE pipes, making the installation process hassle-free. Enjoy the efficiency and comfort provided by these plates in your underfloor heating system.
Uniform Floor Heating
For prime floor heating uniformity, utilizing the 390x1000mm Spreader Plates guarantees efficient and consistent warmth distribution. When opting for these plates, you can benefit from:
- Energy Savings: By ensuring even heat distribution, these plates help optimize energy usage, leading to potential savings on heating costs.
- Temperature Control: The uniform warmth provided by the plates improves temperature control throughout the space, creating a comfortable environment.
- Efficient Heat Transfer: The design of the plates, coupled with their compatibility with specific pipe sizes and spacings, secures efficient heat transfer, maximizing the effectiveness of your underfloor heating system.
Incorporating these spreader plates into your underfloor heating setup can significantly improve your system's performance and overall comfort levels.
Comparison With Traditional Heating Systems
When evaluating spreader plates for underfloor heating against traditional heating systems, you notice a stark difference in heat distribution efficiency. The spreader plates offer more even heat distribution, ensuring consistent warmth across the entire floor surface. This not only provides comfort but also leads to energy savings and has a positive environmental impact. In contrast, traditional heating systems often result in uneven heating, leading to hot and cold spots in the room, which can be both uncomfortable and inefficient.
Here is a comparison table to highlight the differences between spreader plates for underfloor heating and traditional heating systems:
|
Aspect |
Spreader Plates for Underfloor Heating |
Traditional Heating Systems |
|
Energy Efficiency |
High |
Variable |
|
Heat Distribution |
Even |
Uneven |
|
Cost Effectiveness |
Long-term benefits |
Immediate costs |
|
Environmental Impact |
Positive |
Negative |
Spreader plates not only offer superior heat distribution but also provide long-term benefits in terms of cost-effectiveness and environmental impact. Make the switch to spreader plates for underfloor heating to enjoy a more efficient and comfortable heating experience.
Maintenance Tips for Underfloor Heating Plates
When it comes to maintaining your underfloor heating plates, it's essential to regularly clean them to prevent dust buildup and guarantee efficient heat distribution.
Additionally, make sure to inspect the plates for any signs of damage or corrosion that may impact their performance.
Considering professional servicing for your underfloor heating system can help address any potential issues promptly and keep it running efficiently.
Cleaning Spreader Plates
How can you effectively clean spreader plates for underfloor heating systems to maintain peak efficiency and heat distribution?
- Use a soft brush or vacuum cleaner to remove dust and debris regularly.
- Avoid harsh chemicals or abrasive tools to prevent plate damage.
- Inspect the plates for signs of corrosion or warping.
Regularly cleaning and inspecting your spreader plates is essential for the best underfloor heating system performance. By following these simple maintenance techniques, you can guarantee that your heating system operates efficiently and effectively. Regular upkeep not only improves heat distribution but also prolongs the lifespan of your underfloor heating system.
Checking for Damage
Regularly examine your underfloor heating spreader plates for any signs of damage, such as warping, bending, or corrosion. Checking for damage is essential for preventing issues with your underfloor heating system.
Keep an eye out for leaks or moisture near the plates as they could indicate a problem. Confirm that the pipes are properly aligned and spaced within the grooves of the spreader plates to guarantee efficient heat distribution.
Securely fasten the spreader plates to avoid any movement or dislodging. Adding insulation beneath the plates can improve the system's efficiency and prevent heat loss.
How to Optimize Heat Efficiency With Spreaders
To improve the heat efficiency of your underfloor heating system, consider using the ProWarm(tm) Aluminium Spreader Plates for peak performance. These spreader plates are designed to boost heat retention and promote energy savings in the following ways:
- Optimal Heat Transfer: The ProWarm(tm) Aluminium Spreader Plates cover 1/2 m² of heated floor area and have preformed channels at 200mm pipe centers for efficient heat distribution. This design guarantees that heat is evenly spread across the floor, maximizing warmth in your space.
- Direct Contact for Maximum Performance: For improved heat efficiency, it's recommended to have direct contact between the spreader plates and floorboards. This direct connection facilitates better heat transfer, maintaining a comfortable floor temperature of 27°C.
- Insulation for Homogeneous Heat Distribution: Placing insulation beneath the spreader plates further enhances heat efficiency by ensuring consistent heat transfer to the wooden floor. This insulation prevents heat loss, optimizing the performance of your underfloor heating system.
Common FAQS About 390X1000MM Spreader Plates
When inquiring about the 390X1000MM Spreader Plates, you may wonder about their compatibility with different pipe sizes and joist centers for peak underfloor heating performance. These spreader plates are designed to work efficiently with 400mm joist centers, ensuring even heat distribution across the floor surface for consistent warmth.
They're perfectly suited for wooden joists and can accommodate 15mm or 16mm Pex-Al-HDPE pipes, providing you with flexibility in your underfloor heating system setup. The double preformed grooves on these plates secure the pipes effectively, enhancing heat transfer throughout the room.
Frequently Asked Questions
Do You Need Spreader Plates for Underfloor Heating?
You need spreader plates for underfloor heating to guarantee cost efficiency and minimize your environmental impact. They optimize heat distribution, making your system more efficient and eco-friendly. Don't overlook their importance.
What Are the Dimensions of Spreader Plate?
When it comes to spreader plates for underfloor heating, knowing the dimensions is essential. They are 390mm x 1000mm, offering easy installation. These plates boost efficiency, provide even heat distribution, and are cost-effective, making your space cozy.
How Do You Install Spreader Plates?
To install spreader plates properly, position them over traditional joists with 400mm centers. Secure them with a hand stapler or nails. Verify compatibility with 15mm or 16mm Pex-Al-HDPE pipes. Follow these installation tips for efficient underfloor heating.
What Is the Purpose of a Spreader Plate?
To optimize heat distribution and efficiency, spreader plates maximize thermal conductivity in underfloor heating systems. They guarantee consistent warmth by evenly transferring heat across the floor surface, utilizing their insulation properties for maximum efficiency.
