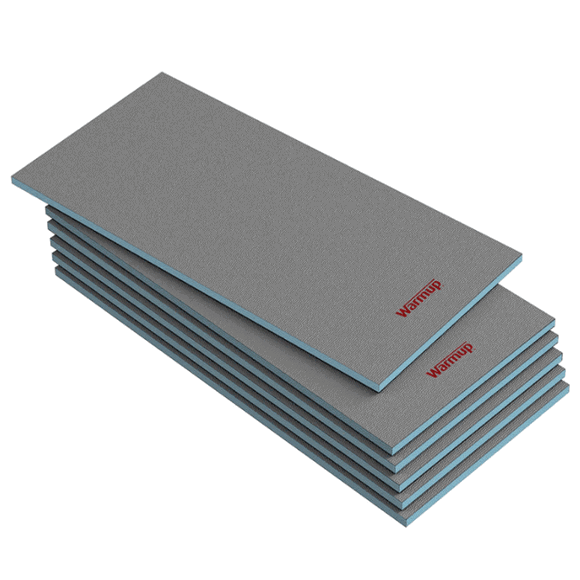

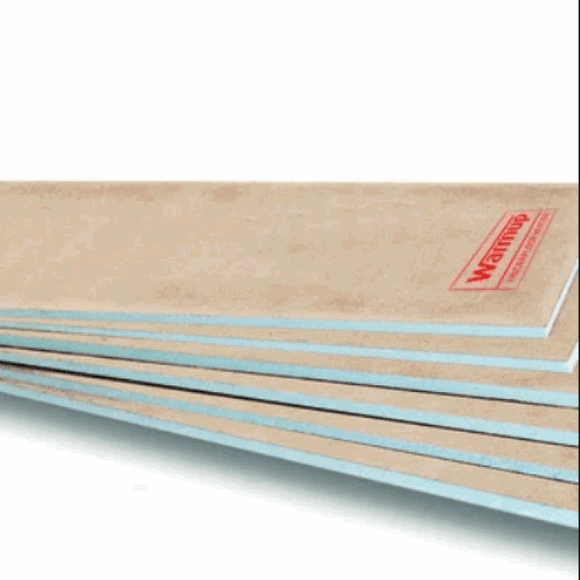

Warmup Insulated Tile Backer Boards - 1250 x 600mm
Request a Quote
Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
It is critical that XPS Insulation boards are laid beneath the flooring. This ensures that no heat is lost through the subfloor, increases the efficiency of underfloor heating and keeps the heat in and energy costs down.
Warmup underfloor Insulation boards have a low thermal conductivity of 0.033 W/mK. They prevent heat generated from underfloor heating systems from leaking downward and reaching the subfloor. Instead, the heat is directed upward and onto the floor surface, where it should be. So, underfloor insulation boards are ideal for use with electric underfloor heating systems.
Not just for underfloor insulation, these insulation boards are also ideal for tile backing applications on both walls and floors. Made of extruded polystyrene, their internal layer is capable of supporting 30 tonnes per square metre. The 0.5mm thick cement coating provides an excellent surface for tile adhesive, plaster and smoothing/levelling compounds, with no priming required.
Product Specifications:
- Length: 1250mm
- Width: 600mm
- Thickness: 6mm and 10mm
- Board Coverage: 0.75 m2
- Thermal conductivity: 0.033 W/mK
- Compressive Strength: 300kPa
- Fire rating: Euroclass E
- Material: Extruded polystyrene
- Facings: Fibreglass reinforced cement
Applications:
Warm-up insulation boards are versatile in application. They can be used for
- Internal wall insulation: Perfect for use instead of standard cement building boards and plasterboards. Can be used for stud-wall insulation and solid wall insulation.
- Bathrooms: Creates a waterproof barrier on floors and walls in wet rooms and bathrooms.
- Underfloor Heating: for use just above the subfloor to direct the warm air upwards.
Key Features:
- Insulated tile backer boards are easy to cut and install.
- CE marked insulation boards for peace of mind and security.
- Saves space, money and energy.
- Water-resistant insulation boards.
- Insulated tile backer boards have a low water absorption rate and are resistant to rot.
- Reduces heat loss and improves the underfloor heating systems response time
- Insulated tile backer boards come in standard size: 1250mm x 600mm (0.75 m2)
- Thickness available: 6mm and 10mm
- Underfloor heating boards have a thermal conductivity of 0.033 W/mK. They prevent heat loss through floors
- Water-resistant insulation boards made with extruded polystyrene
- Can also be used as tile backer boards on walls.
- have a fibreglass mesh implanted into a thin layer of cement-polymer mortar on both sides.
| Insulation Type | Insulated tile backer Board |
| Brand | Warmup |
| Material | Extruded polystyrene with Fibreglass reinforced cement facings |
| Board Coverage | 0.75 sq.m |
| Length | 1250 mm |
| Width |
600 mm |
| Thickness | 6mm and 10mm |
| Thermal Conductivity | 0.033 W/mK |
| Compressive Strength | 300 kPa |
| Fire Rating | Euroclass E |
| Application | Internal wall insulation, bathroom and underfloor insulation. |
| Order Value | Delivery Charges (Excluding VAT) |
|---|---|
| Any Order Value | £4.2 anywhere in the Mainland UK |
Returns and Cancellations:
- You can cancel your order and get a full refund before we confirm your order via email.
- Orders cancelled after the email confirmation is sent, may attract a restocking fee.
- You are welcome to return the products ordered in excess/no longer required, via post or couriers, provided they are in the original packaging and in a resalable condition within 14 days of delivery. Return requests made after 14 days will not be entertained.
- If wrong products were delivered or delivered items are faulty, please email us and we will assist you accordingly.
For more information, please refer to our Delivery information page
You May Also Like
Customer Reviews
“ Strong, sturdy boards. got it next day!”Ben H.
Verified Buyer
Our Customers Include
Installation Guide
| Insulation Type | Insulated tile backer Board |
| Brand | Warmup |
| Material | Extruded polystyrene with Fibreglass reinforced cement facings |
| Board Coverage | 0.75 sq.m |
| Length | 1250 mm |
| Width |
600 mm |
| Thickness | 6mm and 10mm |
| Thermal Conductivity | 0.033 W/mK |
| Compressive Strength | 300 kPa |
| Fire Rating | Euroclass E |
| Application | Internal wall insulation, bathroom and underfloor insulation. |
When you choose Warmup Insulated Tile Backer Boards sized at 1250 x 600mm, you are opting for excellent thermal insulation, strong load-bearing capacity, and a low thermal conductivity of 0.033W/mK. These qualities lead to enhanced energy efficiency and waterproofing in moist environments. These boards are crafted to be durable, cost-efficient, and environmentally friendly with minimal maintenance needs. They are particularly beneficial in underfloor heating systems, offering quick heating times and the ability to withstand heavy weights. With impressive waterproofing properties and a load-bearing capacity of up to 30 tonnes per square meter, these boards stand out for their versatility and long-lasting performance. Delve deeper to discover more insights and advantages.
Key Points
- Exceptional thermal insulation benefits for energy efficiency.
- High load-bearing capacity of up to 30 tonnes per square meter.
- Waterproof nature suitable for wet areas.
- Various thickness options available from 6mm to 50mm.
- Tested for fire safety with a Class O/B1/E rating.
Key Features and Benefits
Warmup Insulated Tile Backer Boards offer exceptional thermal insulation properties and a high load-bearing capacity, making them an ideal choice for various underfloor heating applications. These boards excel in thermal efficiency, ensuring that heat is retained and distributed effectively throughout the room. With a low thermal conductivity of 0.033W/mK, they improve the overall efficiency of underfloor heating systems, resulting in faster warm-up times and improved energy savings.
Moreover, the high load-bearing capacity of up to 30 tonnes per square meter guarantees tiling stability, providing a sturdy base for floor and wall tiles. This stability is vital for ensuring that your tiles remain in place and don't crack or shift over time. Additionally, the waterproof nature of these boards makes them perfect for wet areas like bathrooms and showers, where moisture resistance is essential for maintaining the integrity of the tiling installation.
With Warmup Insulated Tile Backer Boards, you can enjoy both thermal efficiency and reliable tiling stability in your underfloor heating projects.
Installation Guide and Tips
For effective installation of the Insulated Tile Backer Boards, begin by ensuring the surface is clean and dry. This is crucial to achieve proper adhesion and prevent any problems later on.

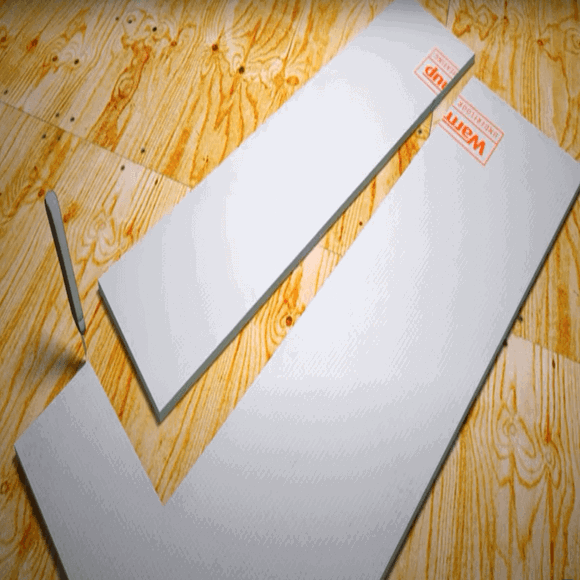

When cutting the boards to fit your space, use a utility knife and straight edge for accuracy. Remember to measure twice and cut once to avoid unnecessary waste.
To secure the boards, apply a suitable adhesive evenly on the back and firmly press them onto the surface. Allow sufficient time for the adhesive to set before tiling.
Common mistakes to avoid include not fully supporting the boards during installation, which can lead to potential cracks or uneven surfaces. For optimal results, follow the step-by-step guide provided by the manufacturer.
If you encounter any issues, troubleshooting techniques such as adjusting the adhesive application or ensuring proper support can help resolve them.
Comparison With Other Backer Boards
When comparing Warmup Insulated Tile Backer Boards with other backer boards, consider their exceptional thermal insulation properties and robust load-bearing capacity. These factors set them apart from conventional options. Here's a comparison table to highlight the key differences:
|
Categories |
Warmup Insulated Tile Backer Boards |
Other Backer Boards |
|
Material comparisons |
Made with high-quality materials for durability |
Varying materials with differing quality |
|
Cost effectiveness |
Cost-efficient due to long-lasting properties |
May require more frequent replacements |
|
Environmental impact |
Low environmental impact with energy-efficient insulation |
Some boards may not be as eco-friendly |
|
Maintenance requirements |
Minimal maintenance needed for longevity |
Certain boards might need more upkeep |
Application in Underfloor Heating Systems
When installing Warmup Insulated Tile Backer Boards in underfloor heating systems, you'll notice a significant increase in heating efficiency.
The simplicity of installation adds to the appeal, making it a practical choice for various applications.
These boards not only reduce heat loss but also improve the overall performance of your underfloor heating system.
Efficiency in Heating
To optimise the efficiency of underfloor heating systems, think about incorporating Warmup Insulated Tile Backer Boards to enhance heat retention and response times.
These boards help with energy savings by decreasing the thermal mass of the floor and increasing the overall thermal efficiency of underfloor heating systems. With a low thermal conductivity of 0.033W/mK, they enable quicker warm-up and cool-down times, ensuring effective heating performance.
Moreover, the compressive strength of 300kPa ensures durability and stability, able to support heavy loads of up to 30 tonnes per square metre.
Installation Simplicity
Enhancing the ease of installation, Warmup's Insulated Tile Backer Boards streamline the application process in underfloor heating systems. These boards are designed with time-saving techniques in mind, allowing for quick and efficient installation. By easily fixing to solid or stud walls, they cater to various maintenance considerations, providing versatility in application.
The 6mm thickness of the boards not only reduces heat loss but also improves the response time of underfloor heating systems, ensuring peak performance. With an internal layer capable of supporting up to 30 tonnes per square meter, durability and stability are guaranteed. The cement coating on the boards further simplifies the installation process by offering an excellent surface for adhesives and compounds, making the overall setup hassle-free and efficient.
Waterproofing and Durability Overview
Warmup's Insulated Tile Backer Boards are a popular option for areas susceptible to moisture, such as bathrooms, thanks to their impressive waterproofing qualities. These boards perform well in durability assessments, boasting a sturdy weight-bearing capability of 30 tonnes per square metre, guaranteeing long-lasting and dependable performance. Constructed from extruded polystyrene and fibreglass mesh, they provide excellent thermal insulation properties, making them suitable for various projects.
When combined, these features establish Warmup's Insulated Tile Backer Boards as a versatile and trustworthy choice for any construction or renovation undertaking.
Waterproofing Features Explained
With outstanding waterproofing features, Warmup Insulated Tile Backer Boards excel in providing durability and strength for wet areas like bathrooms and showers. These boards boast moisture resistance benefits due to their construction using extruded polystyrene with fibreglass mesh and cement polymer mortar, ensuring excellent waterproofing properties.
Additionally, the boards have nil water absorption, enhancing their longevity and resistance to moisture. The waterproofing technology advancements in these boards make them a reliable choice for areas prone to water exposure. Their fire rating of Class O/B1/E further solidifies their position as a top choice for tiling applications in wet environments.
Trust Warmup Insulated Tile Backer Boards for a durable and waterproof solution that will last.
Benefits of Long-lasting Boards
For exceptional durability and long-lasting performance, consider the board longevity advantages of Warmup Insulated Tile Backer Boards. These boards offer longevity benefits due to their waterproof design, making them perfect for wet areas like bathrooms and showers. With a robust load-bearing capacity of 30 tonnes per square meter, these boards guarantee stability and durability over time.
To maintain their longevity, it's essential to follow simple maintenance tips such as regular cleaning and avoiding harsh chemicals. The fibreglass mesh and cement polymer mortar construction further strengthen the boards' durability, providing a reliable choice for your tiling projects. With excellent waterproofing properties and a fire rating of Class O/B1/E, these boards offer both protection and longevity for various applications.
Durability Tests and Results
To understand the durability of Warmup Insulated Tile Backer Boards, let's explore the results of their waterproofing and durability tests.
These boards boast impressive durability performance, with a waterproofing technology that guarantees a water absorption rate of nil, making them perfect for wet areas like bathrooms and showers.
Additionally, they exhibit a robust load-bearing capacity of 30 tonnes per square meter, ideal for supporting heavy tile installations. Tested for fire safety, these boards have a fire rating of Class O/B1/E, providing extra safety in various applications.
Available in various thickness options, from 6mm to 50mm, these boards offer versatility while maintaining durability. With U values ranging from 0.54 to 4.50, they also contribute to energy efficiency and comfort in heated areas.
Load-Bearing Capacity Analysis
Analysing the load-bearing capacity of Warmup Insulated Tile Backer Boards reveals their impressive capability of supporting up to 30 tonnes per square meter. These boards undergo weight distribution analysis and load stress testing to guarantee their strength and reliability for heavy-duty tiling projects.
Compared to other options, these boards excel in load capacity, making them a top choice for those seeking reliable support for their tiles. The impact resistance evaluation assures that these boards can withstand significant pressure without compromising their integrity.
With a compressive strength of 300kPa, these boards offer a stable foundation for tiles in areas with high foot traffic. When considering your tiling needs, the load-bearing capacity of Warmup Insulated Tile Backer Boards stands out as a feature that provides security and peace of mind for your projects.
Commonly Asked Questions
How thick are the insulation boards for warmup?
For the insulation thickness of Warmup boards, options include 6mm, 10mm, 20mm, and 50mm. To optimise your underfloor heating, choose the thickness that fits your needs. Remember, thicker boards provide better thermal insulation.
Is Tile Backer Board a Good Insulator?
Tile backer board is a superb insulator, with high energy efficiency thanks to its low thermal conductivity. It provides moisture resistance and soundproofing advantages, making it a top choice for improving the comfort of your space and reducing heat loss.
How do you fit a warm-up insulation board?
To install a Warmup insulation board, begin by cleaning and levelling the subfloor. Ensure there are gaps for thermostat connections. Seal the joints with fibreglass mesh for additional protection. Then, fit your heating system and flooring. Adhere to the instructions for optimal performance.
Do I Need Insulation Boards for Electric Underfloor Heating?
To maximise underfloor heating efficiency, you should consider insulation boards. They help retain heat, reduce energy waste, and lead to quicker warm-up times. Despite initial costs, the long-term energy savings make them a worthwhile investment.
Summary
To summarise, Warmup insulated tile backer boards provide excellent waterproofing, durability, and load-bearing capacity for underfloor heating systems. Their easy installation and superior performance make them a top choice for renovating or creating a comfortable living space.
Compared to other backer boards, they are distinguished by their quality and reliability. With these boards, you can rely on a long-lasting solution that will keep your floors warm and protected for years to come.
